Chapter 1
Understandin
he Barcode Scanner

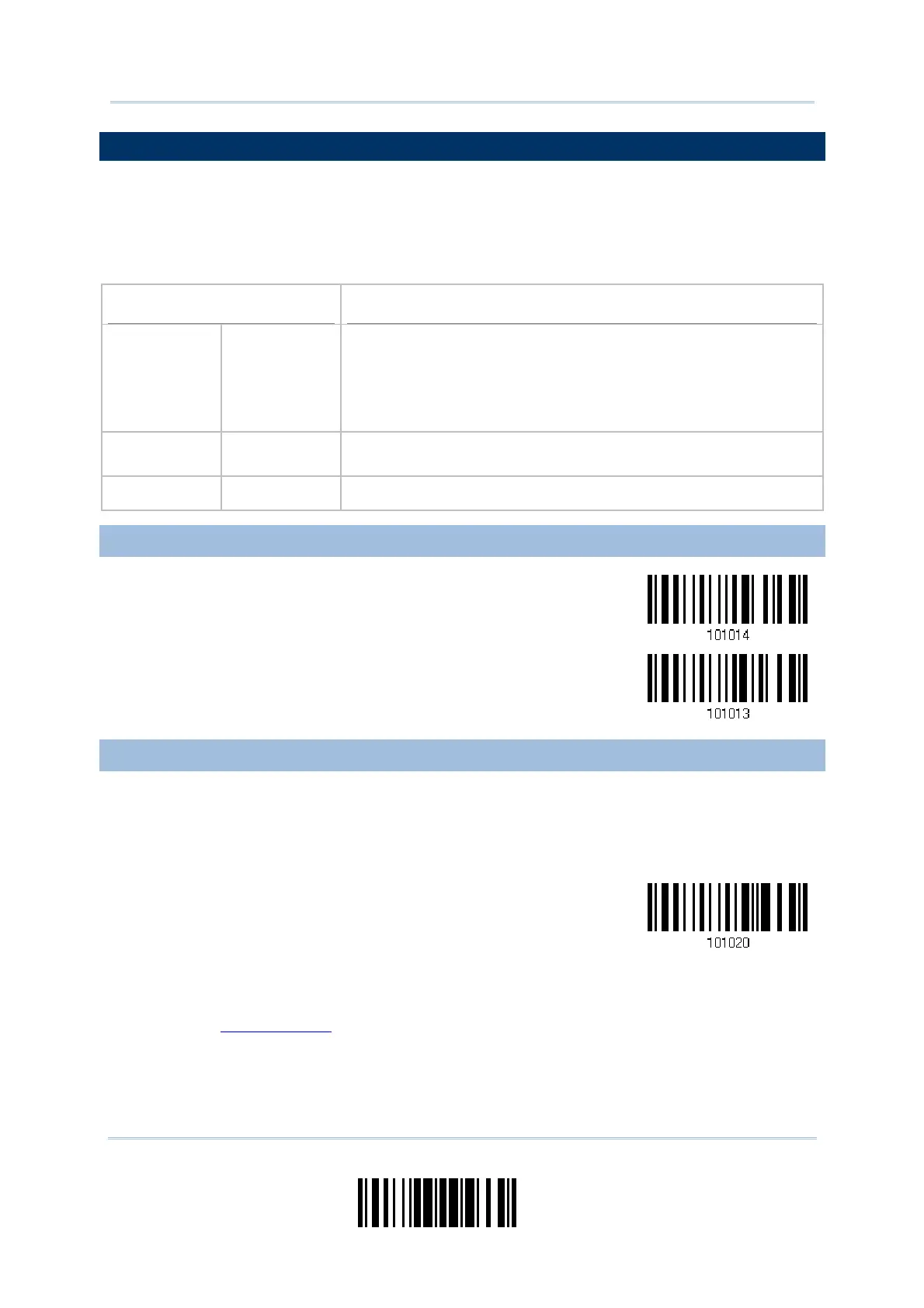

1.3 LED INDICATOR
The dual-color LED on top of the scanner is used to provide user feedback. For example,
the LED becomes solid red and goes off quickly upon powering on or running out of
transmit buffer. Tell the difference by the beeps – for example, it will hear a long beep of
high tone when powering on the scanner, and a long beep of low tone when the transmit
buffer becomes full.
Scanner LED
Meaning
Red, on-off ---
Power on, with one long beep (high tone, LED on for 1
second)
Transmit buffer full, with one long beep (low tone)
RS-232/USB Virtual COM connection fails, with two beeps
(high-low tone)
--- Green, on-off Good Read, with one short beep (high tone) and beeper pitch and
duration programmable
Red, flashing --- Configuration Mode (On/Off ratio 0.5 s: 0.5 s)
1.3.1 GOOD READ LED
Enable
Good Read LED
isable
Good Read LED
1.3.2 GOOD READ LED DURATION
By default, the Good Read LED stays on for 40 milliseconds. Specify a value, ranging
from 1 to 254 in units of 10 milliseconds.
Good Read LED
Time-out after
.01~2.54 sec.
(*40 ms)
1) Read the barcode above to specify the time interval before the Good Read LED goes
off.
2) Read the “
Decimal Value” barcode on page 193. For example, read “1” and “5” for the
LED to go off after 150 milliseconds.
3) Read the “Validate” barcode on the same page to complete this setting.
To Next Page
