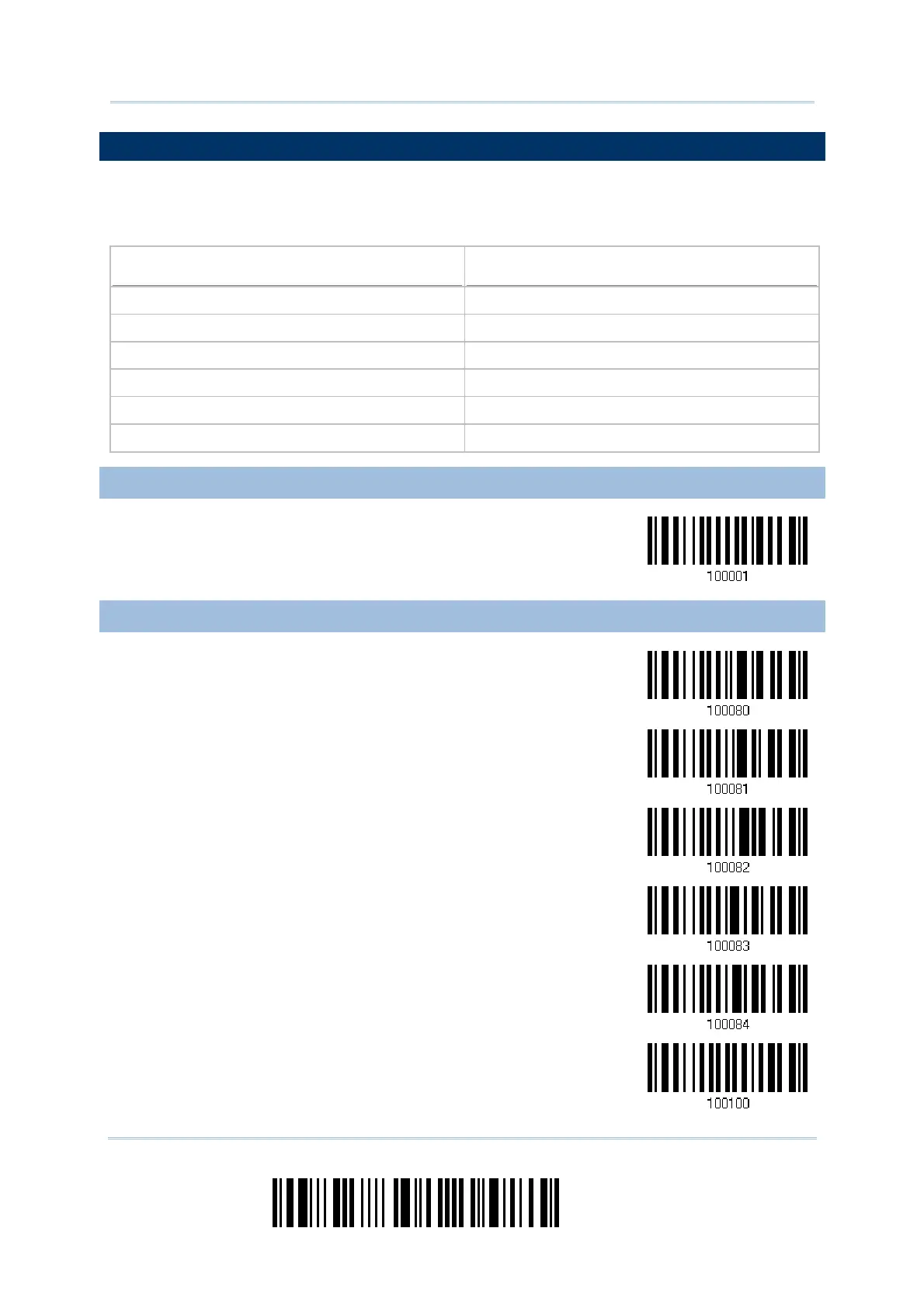

Enter Setup
1504 Barcode Scanner
User Guide
2.2 RS-232
Use the RS-232 cable to connect the scanner to the serial port of PC and join the power
adaptor to the RS-232 connector. The associated RS-232 parameters must match those
configured on the computer. The scanned data will be transmitted to the serial port.
RS-232 Settings
Defaults
Baud Rate, Data Bit, Parity, Stop Bit 115200 bps, 8 bits, No parity, 1 stop bit
Flow Control None
Inter-Character Delay 0 (ms)
Inter-Function Delay 0 (ms)
ACK/NAK Timeout 0
ACK/NAK Beep Disable
2.2.1 ACTIVATE RS-232 INTERFACE
Activate RS-232
Interface
2.2.2 BAUD RATE
*115200 bps
57600 bps
38400 bps
19200 bps
9600 bps
4800 bps
To Next Page
