Chapter 5

Applyin

Formats for Data Editin

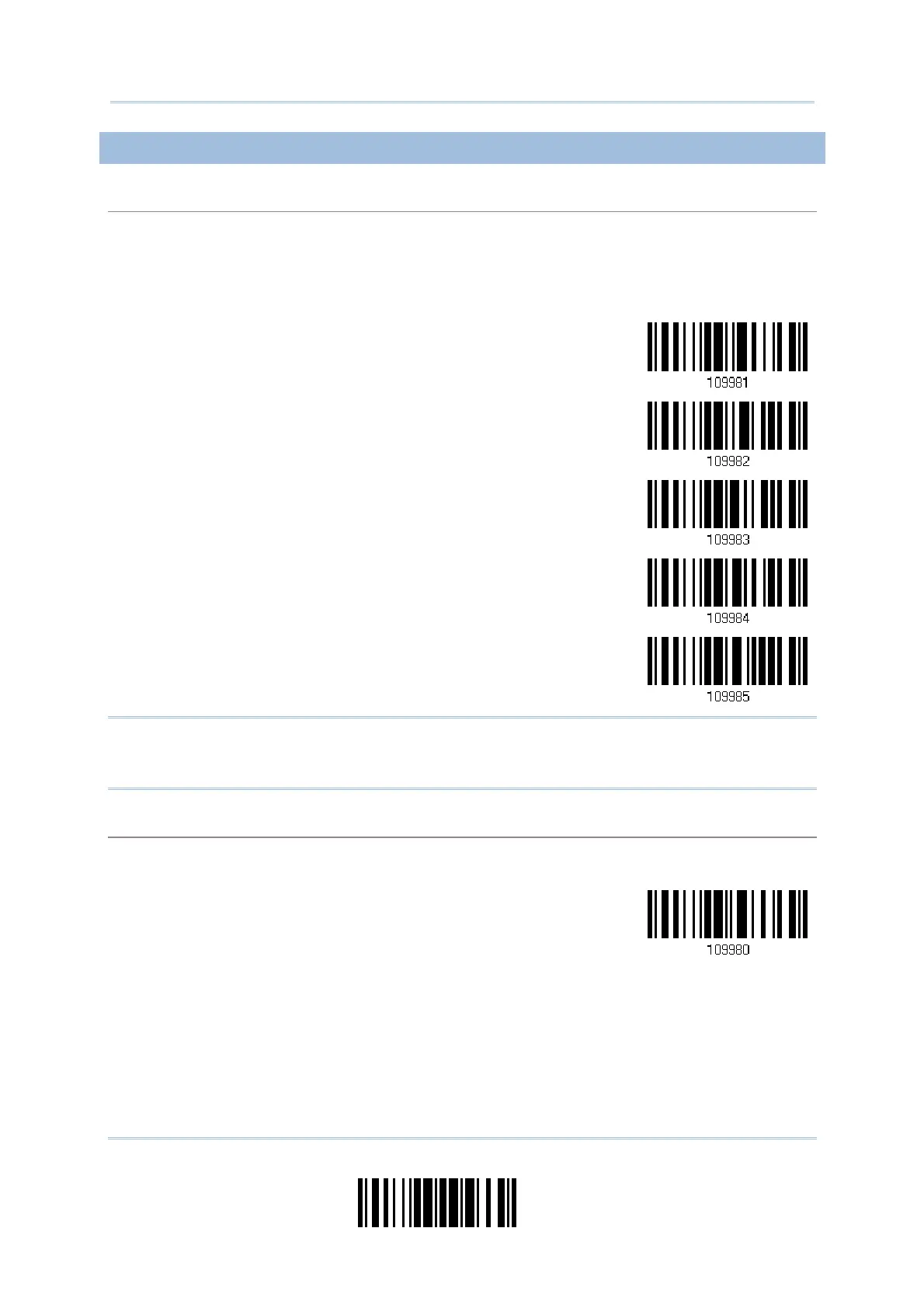

5.2.1 SELECT FORMAT TO CONFIGURE

Start Programming Format

Select one editing format (Format 1~5) and the parameters pertaining to the editing format can

then be configured – applicable code type, data length, matching string & location, start position,

field adjustment, total number of fields, field settings (field-dividing rule), additional fields, and

field transmission sequence.

 Up to five different formats can be specified.

Configure Format 1

Configure Format 2

Configure Format 3

Configure Format 4

Configure Format 5

Note: Before completing the programming of an editing format, if having the scanner

read any barcode for parameters other than those pertaining to the editing format;

it will automatically abort the programming process.

End Programming Format

After having configured all the desired parameters, have the scanner read the “End Programming

Format” barcode, which can be located at the bottom of every even page in this chapter.

End Programming

Format
