CipherLab 1504 User Manual
4
of 1
of 1 rating
217 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
71
Update

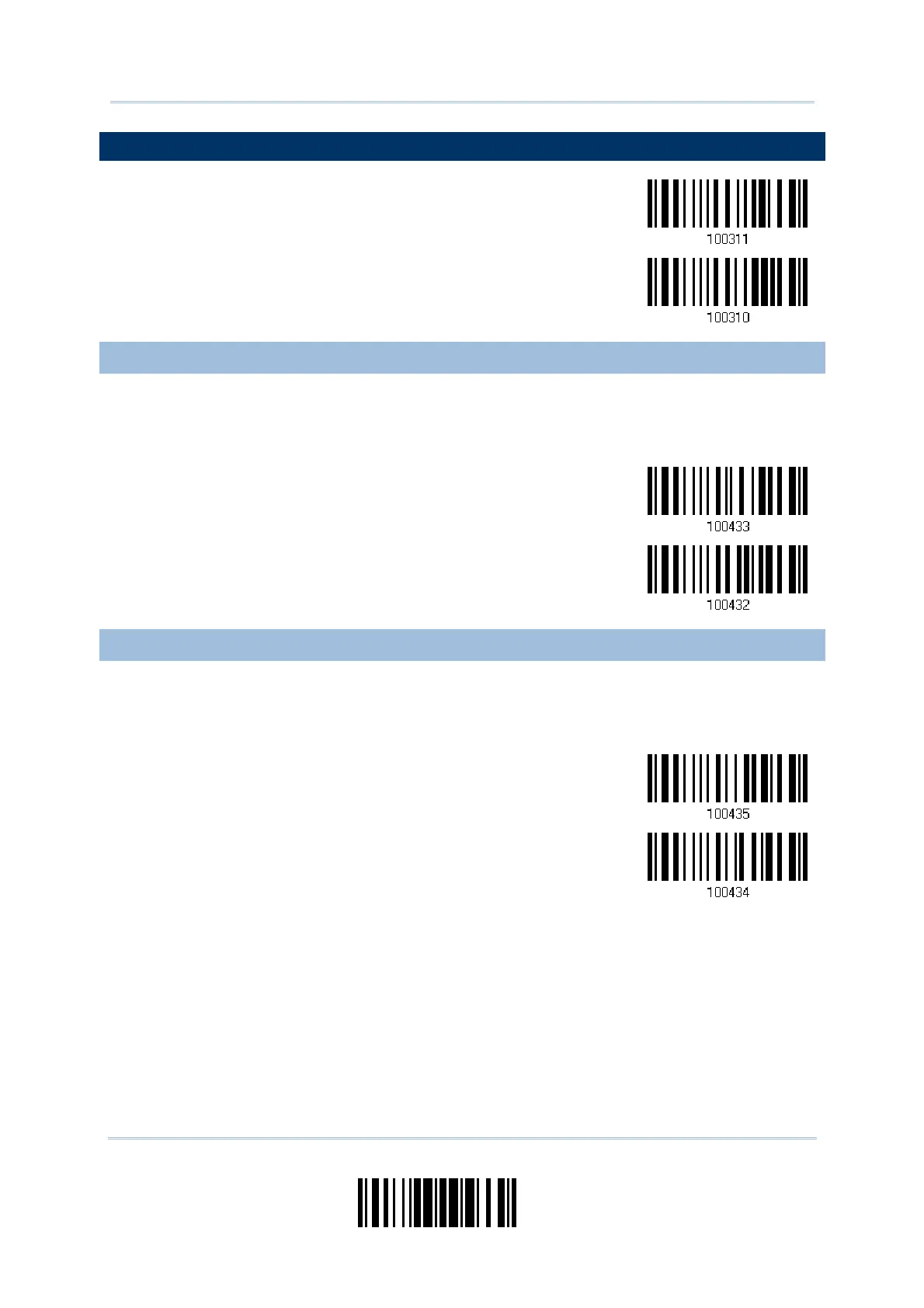

Chapter 3
Changin
g
Symbology Settings
3.4 CODE 25 – MATRIX 25
Enable
*Disable
3.4.1 VERIFY CHECK DIGIT
Decide whether t
o verify the check digit. If in
correct, the barcode will
not be accepted.
Verify Matrix 25
Check Digit
*Do Not Verify
3.4.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit Matrix 25
Check Digit
Do Not Transmit
82
84
