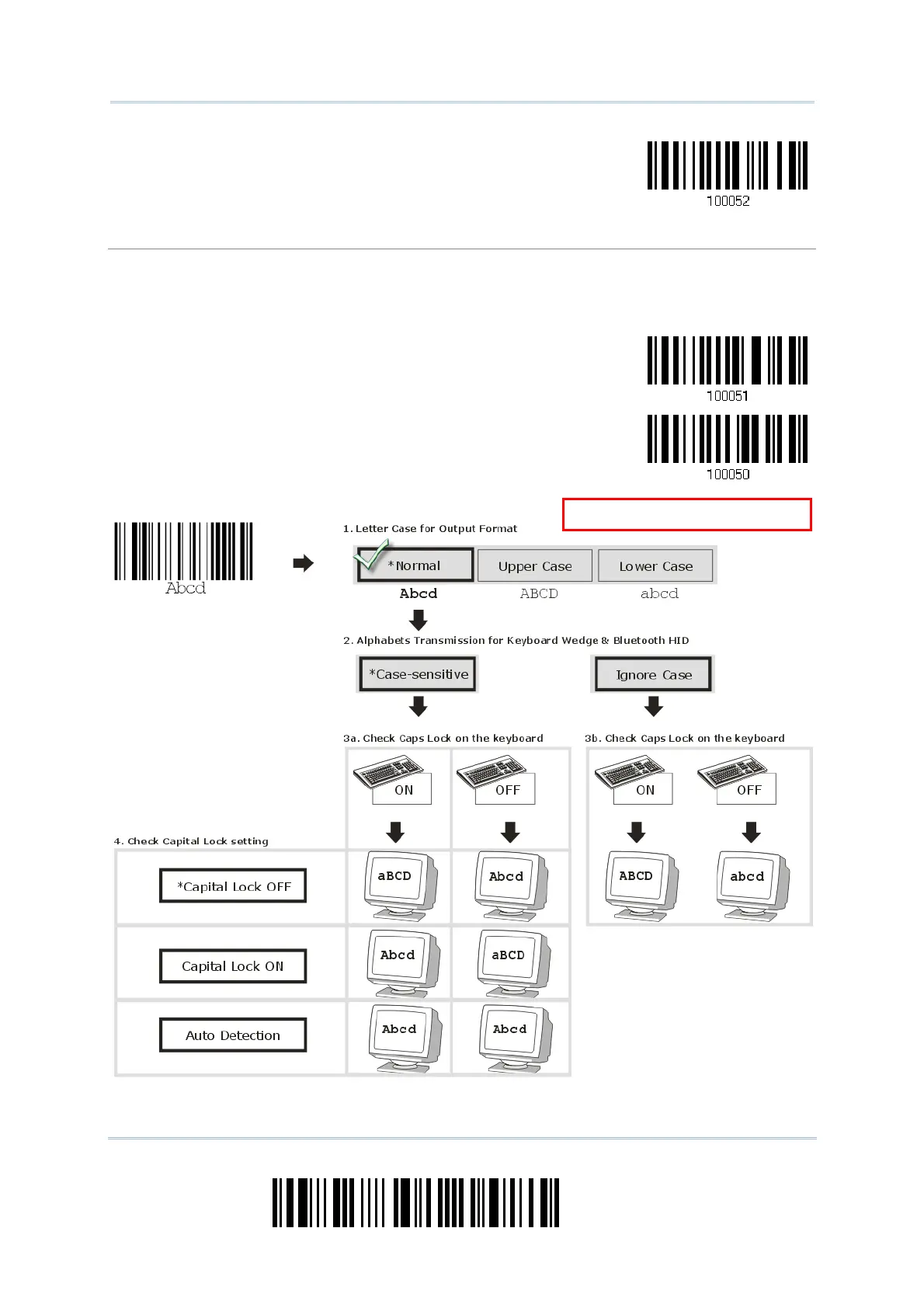

40
Enter Setup
1504 Barcode Scanne
r
User Guide
*Capital Lock OFF
Alphabets Transmi
ssion
By default, the alphabets transmission is case
-sensiti
ve, meaning that the alphabets will
be
transmitted according to th
eir original case, the stat
us of Caps Lock on the
keyboard, as well as the
Capital Lock setting. Select [Ignore Case] to have alphabets tran
smitted according to the status of
Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
R
efer to 4.1 Letter Case.
51
53
Table of Contents
Default Chapter
3
For Canada
3
Important Notices
3
Care & Maintenance
4
For Product with Laser
4
Release Notes
5
Table of Contents
7
Introduction
13
Inside the Package
14
Product Highlights
14
Symbologies Supported
15
Quick Start
17
Enter Configuration Mode
18
Exit Configuration Mode
18
Default Settings
19
Save User Settings as Defaults
19
Restore User Defaults
19
Restore System Defaults
19
Read a Setup Barcode
20
Configure Parameters
20
List the Current Settings
24
Create One-Scan Setup Barcodes
26
Understanding the Barcode Scanner
27
Chapter 1
28
Power
28
Transmit Buffer
28
LED Indicator
29
Good Read LED
29
Good Read LED Duration
29
Beeper
30
Beeper Volume
30
Good Read Beep
31
Send "NR" to Host
32
Scan Modes
33
Test Mode
33
Laser Mode
34
Auto off Mode
34
Auto Power off Mode
34
Aiming Mode
35
Multi-Barcode Mode
35
Presentation Mode
36
Scanning Timeout
37
Delay between Re-Read
38
Read Redundancy (1D)
39
Addon Security for UPC/EAN Barcodes
40
Auto-Sense Mode
41
Negative Barcodes
41
Cable Auto-Detect
43
Picklist Mode
44
Selecting Output Interface
45
Keyboard Wedge
46
Activate Keyboard Wedge & Select Keyboard Type
47
Keyboard Settings
48
Inter-Character Delay
54
Inter-Function Delay
55
Special Keyboard Feature
55
Activate RS-232 Interface
56
Baud Rate
56
Rs-232
56
Data Bits
57
Parity
57
Stop Bit
57
Flow Control
58
Inter-Character Delay
59
Inter-Function Delay
59
ACK/NAK Timeout
60
Direct USB HID
61
Activate USB HID & Select Keyboard Type
61
Keyboard Settings
62
Inter-Character Delay
68
Inter-Function Delay
68
HID Character Transmit Mode
69
HID Transmit Speed
69
Special Keyboard Feature
69
Direct USB VCOM
70
Activate USB Virtual COM
70
Inter-Function Delay
70
ACK/NAK Timeout
71
Direct USB VCOM_CDC
72
Activate USB VCOM_CDC
72
Inter-Function Delay
72
ACK/NAK Timeout
73
Changing Symbology Settings
75
Chapter 3
76
Codabar
76
Start/Stop Transmission
76
CLSI Conversion
76
Code Length Qualification
77
Code 25 - Industrial 25
78
Code Length Qualification
79
Code 25 - Interleaved 25
80
Verify Check Digit
80
Transmit Check Digit
80
Convert to EAN-13
81
Code Length Qualification
82
Code 25 - Matrix 25
83
Verify Check Digit
83
Transmit Check Digit
83
Code Length Qualification
84
Code 25 - Chinese 25
85
Italian Pharmacode (Code 32)
86
Code 39
87
Verify Check Digit
87
Transmit Check Digit
87
Standard/Full ASCII Code 39
88
Code Length Qualification
89
Trioptic Code 39
90
Code 93
91
Code Length Qualification
92
Code 128
93
Gs1-128 (Ean-128)
94
Transmit Code ID
94
Field Separator (GS Character)
94
Isbt 128
95
ISBT Concatenation
95
ISBT Concatenation Redundancy
96
GS1 Databar (RSS Family)
97
Select Code ID
97
GS1 Databar Omnidirectional (RSS-14)
98
GS1 Databar Expanded (RSS Expanded)
99
GS1 Databar Limited (RSS Limited)
100
Convert to UPC/EAN
101
Msi
102
Verify Check Digit
102
Transmit Check Digit
102
Code Length Qualification
103
Ean-8
104
Ean-13
105
Convert to ISBN
106
Convert to ISSN
106
UCC Coupon Extended Code
107
Upc-A
108
Transmit System Number
109
Transmit Check Digit
109
Upc-E
110
Select System Number
111
Convert to UPC-A
111
Transmit System Number
112
Transmit Check Digit
112
Code 11
113
Verify Check Digit
113
Transmit Check Digit
113
Code Length Qualification
114
Composite Code
115
Composite CC-A/B
115
Composite CC-C
115
Composite TLC-39
115
UPC Composite Mode
116
GS1-128 Emulation Mode for UCC/EAN Composite Codes
116
US Postal Code
117
US Postnet
117
US Planet
117
Transmit Check Digit
117
UK Postal Code
118
UK Postal
118
Transmit Check Digit
118
More Postal Code
119
Japan Postal
119
Australian Postal
119
Dutch Postal
119
USPS 4Cb/One Code/Intelligent Mail
119
UPU FICS Postal
120
Symbologies
121
Pdf417
121
Micropdf417
121
Data Matrix
122
Maxicode
123
QR Code
123
Microqr
123
Aztec
123
Macro PDF
124
Transmit/Decode Mode
124
Escape Characters
125
Transmit Control Header
125
Defining Output Format
127
Chapter 4
127
Letter Case
127
Character Substitution
128
Select a Set for Character Substituion
129
Symbologies for Character Substitution (All 3 Sets)
130
Prefix/Suffix Code
140
Code ID
141
Select Pre-Defined Code ID
141
Change Code ID
144
Clear Code ID Settings
147
Length Code
148
Multi-Barcode Editor
156
Edit a Concatenation of Barcodes
157
Activate the Concatenation of Barcodes
159
Removal of Special Character
160
Applying Formats for Data Editing
161
Chapter 5
162
Activating Editing Formats
162
Activate Editing Formats
162
Exclusive Data Editing
163
How to Configure Editing Formats
164
Select Format to Configure
165
Restore Default Format
166
Configuring Format - Define Data Criteria
167
Applicable Code Type
167
Data Length
177
Matching String & Location
178
Configuring Format - Define Data Field
179
Start Position
179
Field Adjustment
179
Total Number of Fields
180
Field Settings
181
Pause Field Setting
187
Configuring Format - Define Transmission Sequence
188
Programming Examples
190
Example I
190
Example II
191
Specifications
193
Firmware Upgrade
195
Using RS-232
195
Using USB Virtual COM
197
Host Serial Commands
199
Serial Commands
199
Example
200
Keyboard Wedge Table
201
Key Type & Status
203
Key Type
203
Key Status
203
Example
204
Numeral Systems
205
Decimal System
205
Hexadecimal System
206
ASCII Table
207
Reading Driver Licenses
208
License Parsing Setup
208
Separators and Fields
215
Edit Separators
216
Edit Fields
217
