CipherLab 1564 User Manual

99
Update

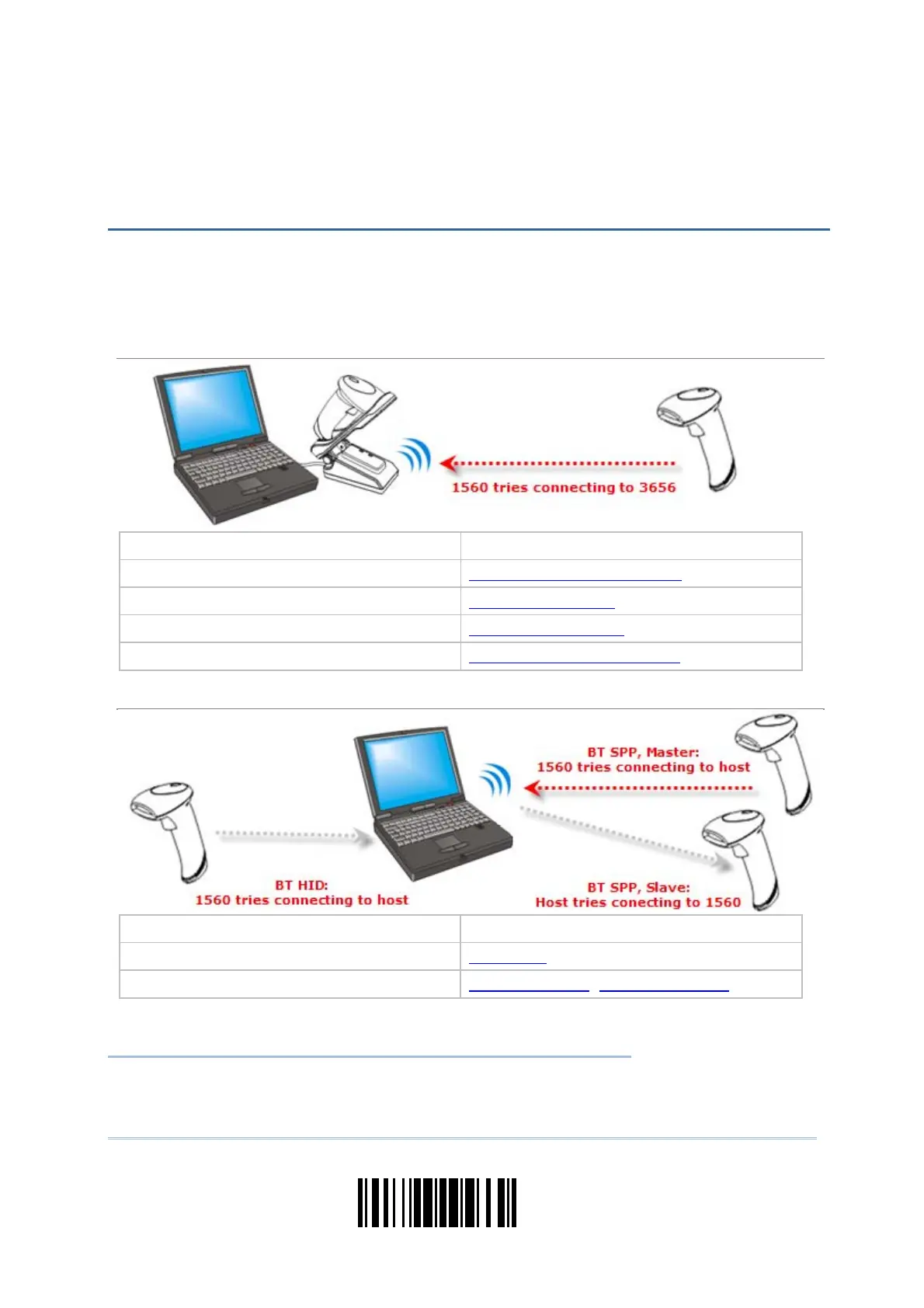

The 1564 scanner can be configured to send data to a host computer wirelessly via the
3656 stand, or to a notebook computer or PDA with Bluetooth
®
wireless technology.
Upon powering up, the scanner will be ready for establishing a WPAN connection.
To establish a connection via 3656 after reading “Set Connection” and “Serial No.” labels …
Interface Option Reference
Keyboard Wedge 2.4 Keyboard Wedge via 3656
RS-232 2.5 RS-232 via 3656
USB HID 2.6 USB HID via 3656
USB Virtual COM 2.7 USB Virtual COM via 3656
To establish a connection via Bluetooth
®
dongle after pairing…
Interface Option Reference
BT HID 2.1 BT HID
BT SPP 2.2 BT SPP Slave, 2.3 BT SPP Master
IN THIS CHAPTER
3.1 Connecting via 3656 .................................................100
3.2 Connecting via Bluetooth
®
Dongle...............................103
Chapter 3
SETTING UP A WPAN CONNECTION

CipherLab 1564 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD
Read rate (max)	60 reads/s
Tilt reading angle	-60 - 60 °
Optical sensor resolution	752 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range	90 m
Bluetooth version	2.0+EDR
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wired & Wireless
Certification	BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product color	Black
Housing material	Thermoplastic urethane (TPU)
Protection features	Shock resistant
International Protection (IP) code	IP30
Battery life	16 h
Input voltage	5 V
Battery voltage	3.7 V
Battery capacity	800 mAh
Power consumption	230 mA
Power source type	Battery, DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	153 mm
Width	61 mm
Height	93 mm
Weight	185 g
