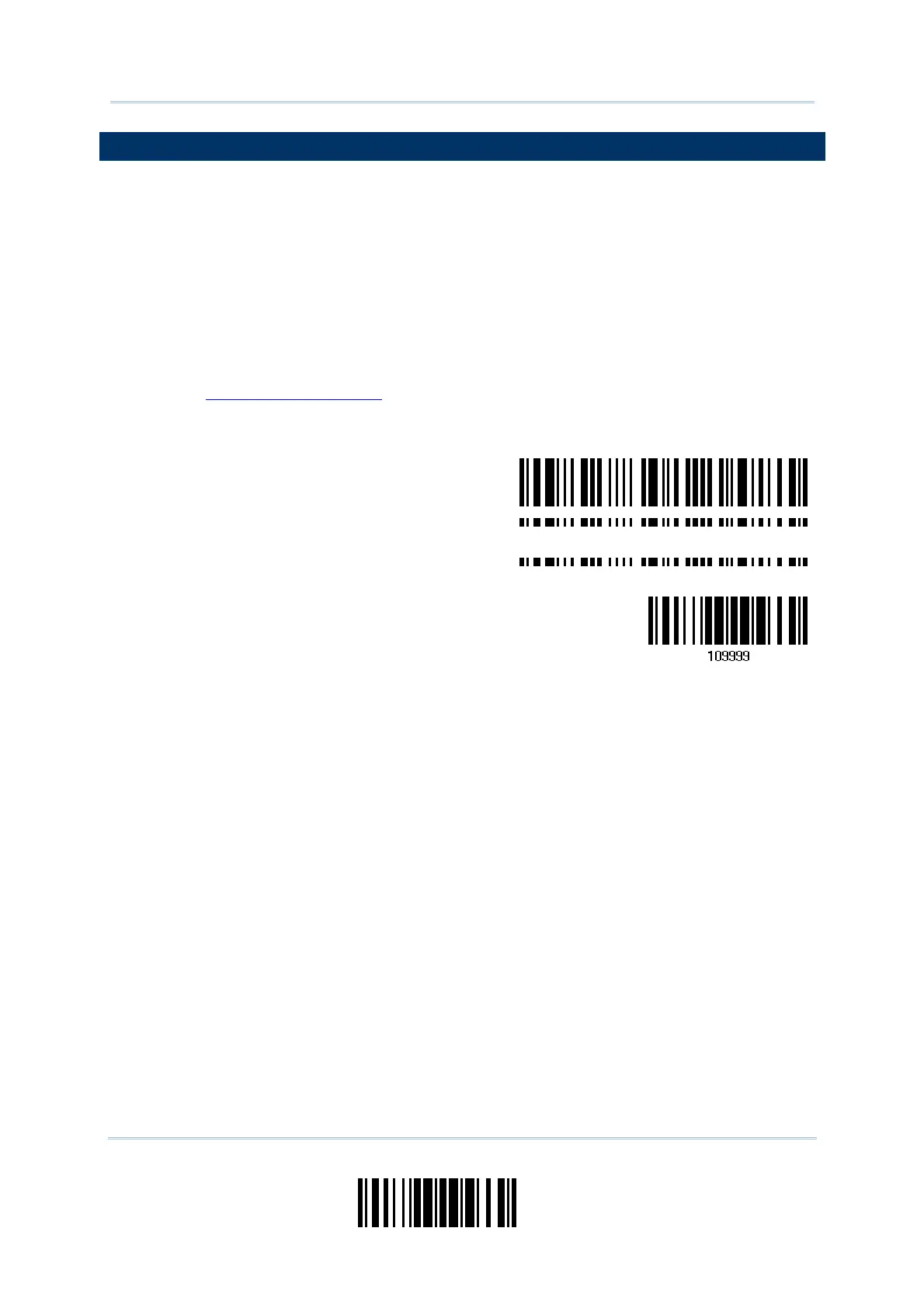

Appendix II Host Serial Commands
3656 SETUP BARCODES & SERIAL COMMANDS
Normally, you can configure the 3656 stand by having a connected scanner read
3656-related setup barcodes.
1) Connect the interface cable, RS-232, Keyboard Wedge or USB, between 3656 and
your computer.
2) For USB Virtual COM, you may need to install its driver first!
3) Connect the power supply cord from 3656 to a proper power outlet.
Read the “Set Connection” label first, and then the “Serial Number” label. Both labels
can be located at the back of 3656.
4) Refer to
3.1.1 Connect to 3656 for the target scanner to connect to 3656.
5) Read the following barcodes in sequence to configure 3656.
Enter Setup
Update
For 3656-related setup barcodes, refer to the Serial Command table below. Note that for
the “Version” and “GetID” barcodes, you must run HyperTerminal.exe or any text editor
to receive the information.
 If the output interface is RS-232 or USB Virtual COM, run HyperTerminal.exe on
your computer to receive the information.
 If the output interface is Keyboard Wedge or USB HID, run any text editor to
receive the information.
(3656
-
r
elated setup barcodes)

CipherLab 1564 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD
Read rate (max)	60 reads/s
Tilt reading angle	-60 - 60 °
Optical sensor resolution	752 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range	90 m
Bluetooth version	2.0+EDR
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wired & Wireless
Certification	BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product color	Black
Housing material	Thermoplastic urethane (TPU)
Protection features	Shock resistant
International Protection (IP) code	IP30
Battery life	16 h
Input voltage	5 V
Battery voltage	3.7 V
Battery capacity	800 mAh
Power consumption	230 mA
Power source type	Battery, DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	153 mm
Width	61 mm
Height	93 mm
Weight	185 g
