CipherLab 1564 User Manual

138
Enter Setup
1564 Barcode Scanner User Guide

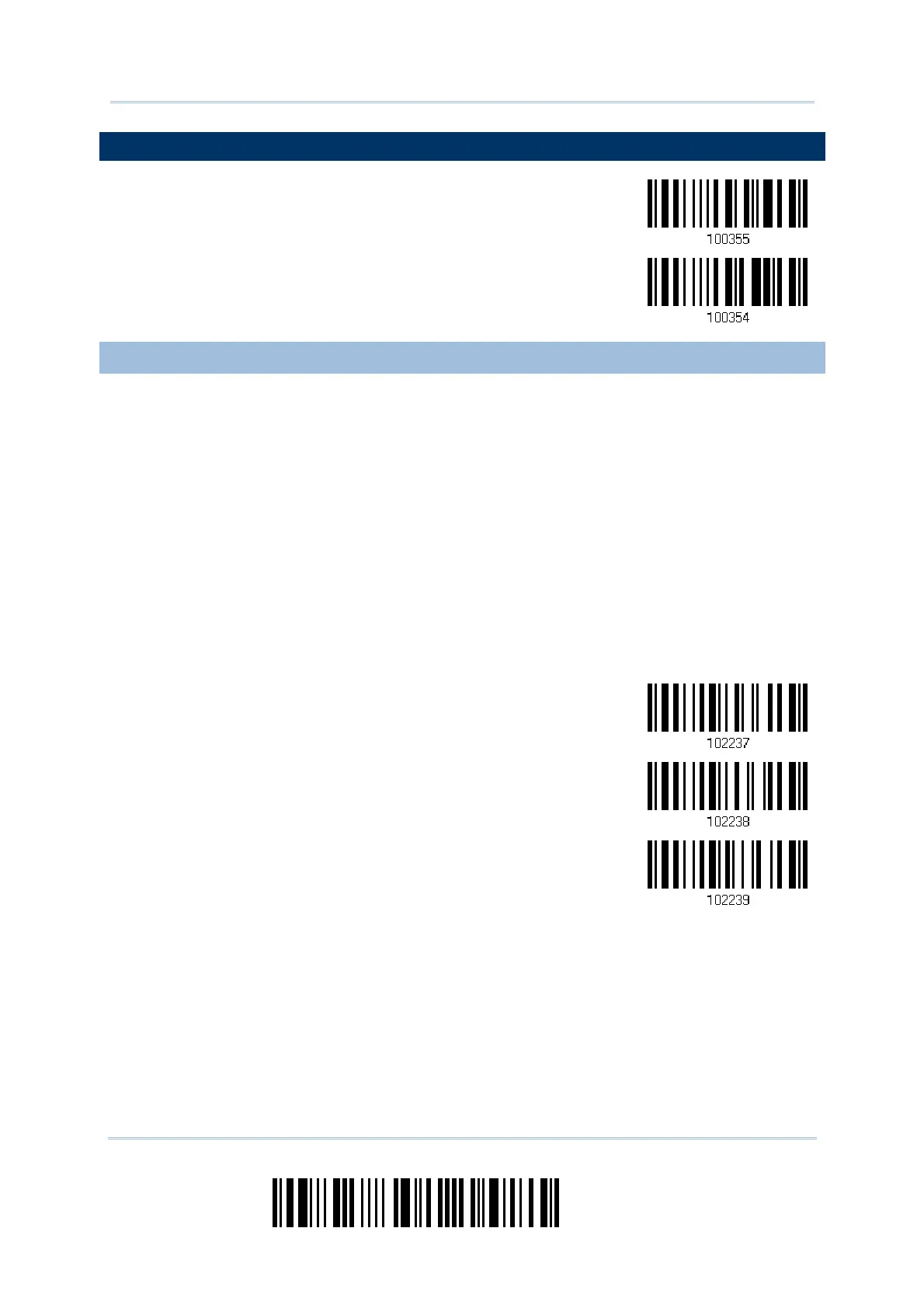

4.12 ISBT 128
*Enable
Disable
4.12.1 ISBT CONCATENATION
Decide whether to decode and concatenate pairs of ISBT barcodes.
 Disable ISBT Concatenation
It will not concatenate pairs of ISBT barcodes it encounters.
 Enable ISBT Concatenation
There must be two ISBT barcodes in order for the scanner to decode and perform
concatenation. It does not decode single ISBT barcodes.
 Auto-discriminate ISBT Concatenation
It decodes and concatenates pairs of ISBT barcodes immediately. If only a single ISBT
barcode is present, the scanner must decode 10 times before transmitting its data to
confirm that there is no additional ISBT barcode.
Disable
Enable
*Auto-discriminate

CipherLab 1564 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD
Read rate (max)	60 reads/s
Tilt reading angle	-60 - 60 °
Optical sensor resolution	752 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range	90 m
Bluetooth version	2.0+EDR
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wired & Wireless
Certification	BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product color	Black
Housing material	Thermoplastic urethane (TPU)
Protection features	Shock resistant
International Protection (IP) code	IP30
Battery life	16 h
Input voltage	5 V
Battery voltage	3.7 V
Battery capacity	800 mAh
Power consumption	230 mA
Power source type	Battery, DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	153 mm
Width	61 mm
Height	93 mm
Weight	185 g
