CipherLab 1564 User Manual

159
Update
Chapter 4 Changing Symbology Settings

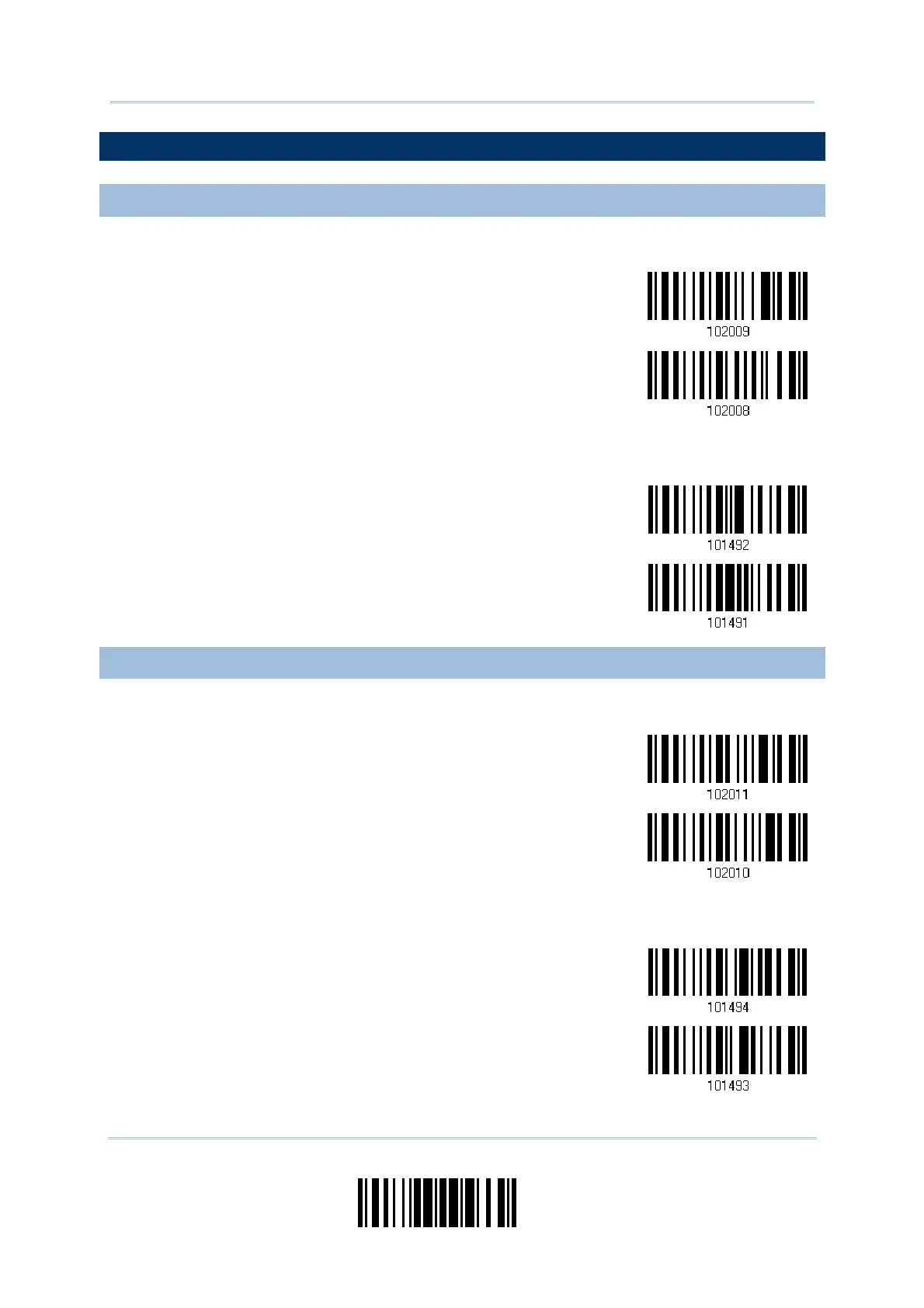

4.21 COMPOSITE CODE
4.21.1 COMPOSITE CC-A/B
Decide whether to enable Composite CC-A/B
Enable Composite
CC-A/B
*Disable
Decide whether to enable GS1 formatting for Composite CC-A/B. When enabled, the field
separator and application ID mark will be automatically added to the output data
Enable GS1
Formatting
*Disable GS1
Formatting
4.21.2 COMPOSITE CC-C
Decide whether to enable Composite CC-C.
Enable Composite
CC-C
*Disable
Decide whether to enable GS1 formatting for Composite CC-C. When enabled, the field
separator and application ID mark will be automatically added to the output data.
Enable GS1
Formatting
* Disable GS1
Formatting

CipherLab 1564 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD
Read rate (max)	60 reads/s
Tilt reading angle	-60 - 60 °
Optical sensor resolution	752 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range	90 m
Bluetooth version	2.0+EDR
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wired & Wireless
Certification	BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product color	Black
Housing material	Thermoplastic urethane (TPU)
Protection features	Shock resistant
International Protection (IP) code	IP30
Battery life	16 h
Input voltage	5 V
Battery voltage	3.7 V
Battery capacity	800 mAh
Power consumption	230 mA
Power source type	Battery, DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	153 mm
Width	61 mm
Height	93 mm
Weight	185 g
