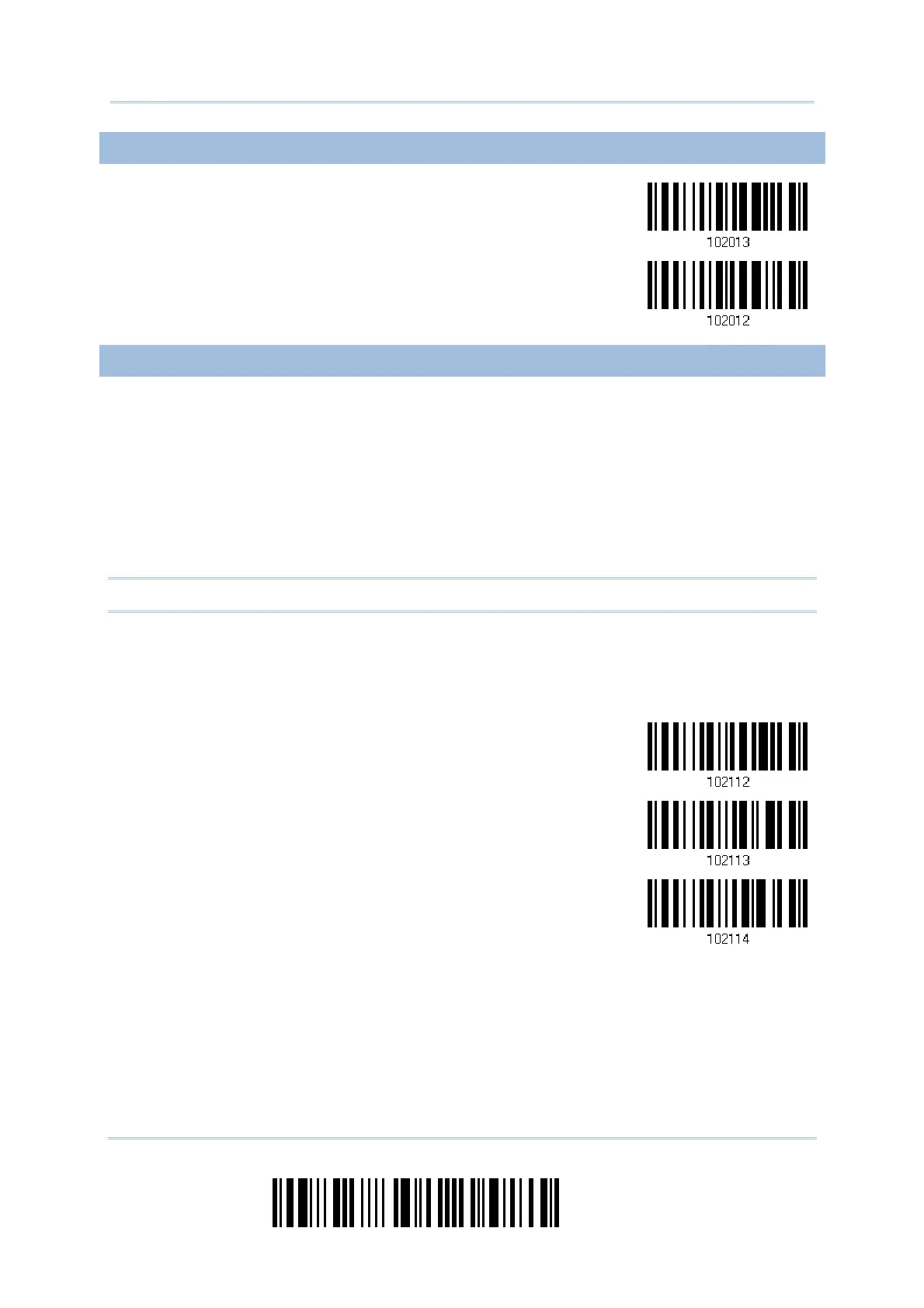

160
Enter Setup
1564 Barcode Scanner
User Guide
4.21.3 COMPOSITE TLC-39
Enable Composite
TLC-39
*Disable
4.21.4 UPC COMPOSITE MODE
UPC barcodes can be “linked” with a 2D barcode during transmission as if they were one
barcode.
UPC Never Linked
Transmit UPC barcodes regardless of whether a 2D barcode is detected.
UPC Always Linked
Transmit UPC barcodes and the 2D portion. If the 2D portion is not detected, the UPC
barcode will not be transmitted.
Note: CC-A/B or CC-C must be enabled!
Auto-discriminate UPC Composites
Transmit UPC barcodes as well as the 2D portion if present.
UPC Never Linked
*UPC Always Linked
Auto-discriminate

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the CipherLab 1564 and is the answer not in the manual?

CipherLab 1564 Specifications

General IconGeneral
TypeHandheld bar code reader
Wavelength625 nm
Sensor typeCCD
Read rate (max)60 reads/s
Tilt reading angle-60 - 60 °
Optical sensor resolution752 pixels
Linear (1D) barcodes supportedCodabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range90 m
Bluetooth version2.0+EDR
Operating frequency2400 MHz
Standard interfacesBluetooth
Connectivity technologyWired & Wireless
CertificationBSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product colorBlack
Housing materialThermoplastic urethane (TPU)
Protection featuresShock resistant
International Protection (IP) codeIP30
Battery life16 h
Input voltage5 V
Battery voltage3.7 V
Battery capacity800 mAh
Power consumption230 mA
Power source typeBattery, DC
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth153 mm
Width61 mm
Height93 mm
Weight185 g
