CipherLab 1564 User Manual

102
Enter Setup
1564 Barcode Scanner User Guide

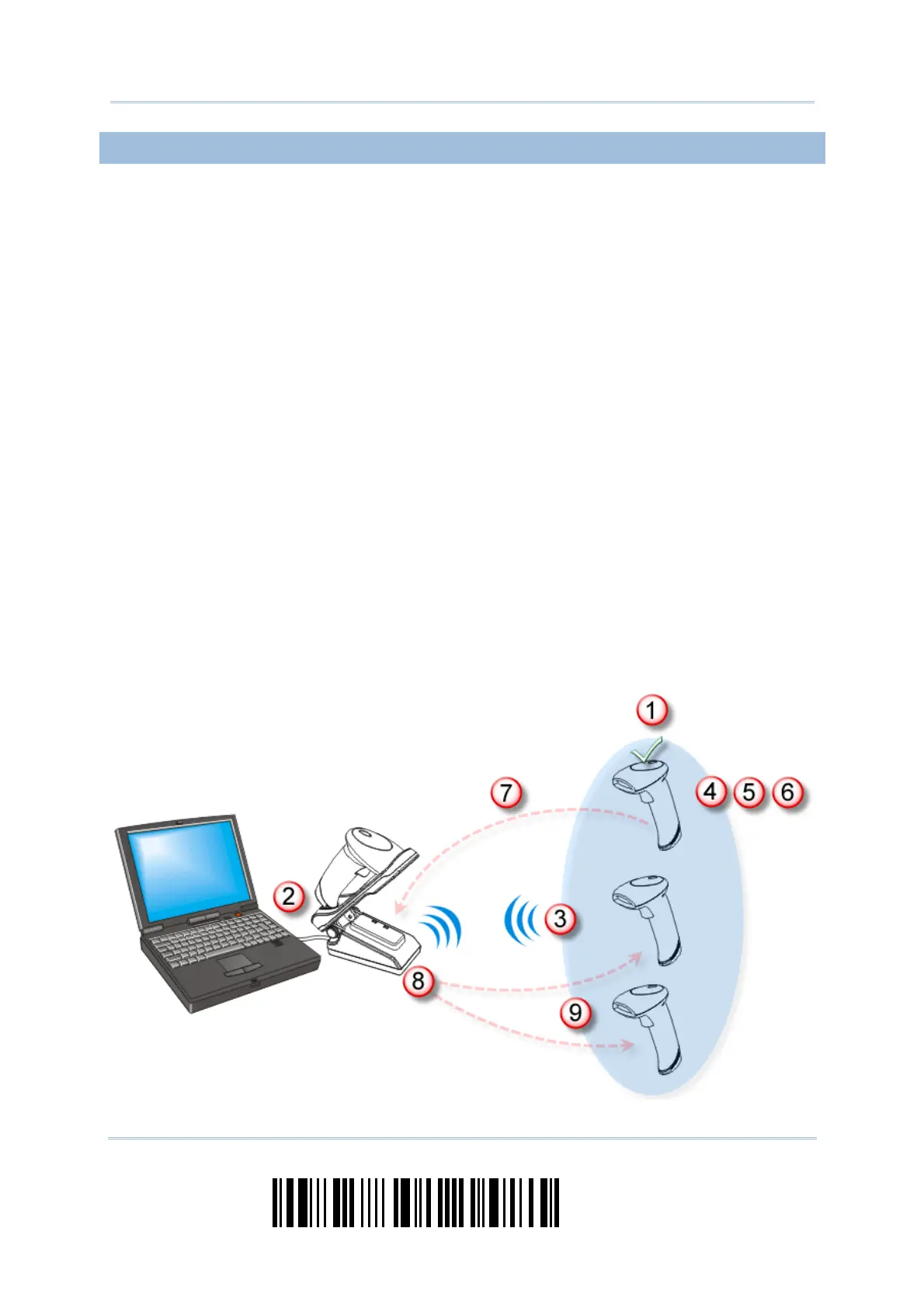

3.1.2 CHANGE INTERFACE
If you want to change the interface cable of 3656, use one of the scanners to configure
the interface-related settings and it will pass the new settings to 3656, which will then
initialize and pass the settings to any other connected scanners.
1) Have the scanner read the “Set Connection” and “Serial Number” labels at the back of
3656.
2) Within two minutes, connect the interface cable between 3656 and your computer.
For USB Virtual COM, you may need to install its driver first!
3) The scanners will connect to your computer via 3656.
4) Have one scanner read the “Enter Setup” barcode to enter the configuration mode.
5) Have the scanner read the desired interface barcode and configure its related
settings –
 “Activate Keyboard Wedge & Select Keyboard Type”
 “Activate RS-232”
 “Activate USB HID & Select Keyboard Type”
 “Activate USB Virtual COM”
6) Have the scanner read the “Update” barcode to exit the configuration mode.
7) After the scanner resumes connection with 3656, it will pass the interface-related
settings to 3656.
8) Upon receipt of the new settings, 3656 will initialize itself.
9) Updated with new settings, 3656 will pass the settings to other connected scanners.

CipherLab 1564 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD
Read rate (max)	60 reads/s
Tilt reading angle	-60 - 60 °
Optical sensor resolution	752 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range	90 m
Bluetooth version	2.0+EDR
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wired & Wireless
Certification	BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product color	Black
Housing material	Thermoplastic urethane (TPU)
Protection features	Shock resistant
International Protection (IP) code	IP30
Battery life	16 h
Input voltage	5 V
Battery voltage	3.7 V
Battery capacity	800 mAh
Power consumption	230 mA
Power source type	Battery, DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	153 mm
Width	61 mm
Height	93 mm
Weight	185 g
