CipherLab 1564 User Manual

226
End Programming Format
1564 Barcode Scanner User Guide

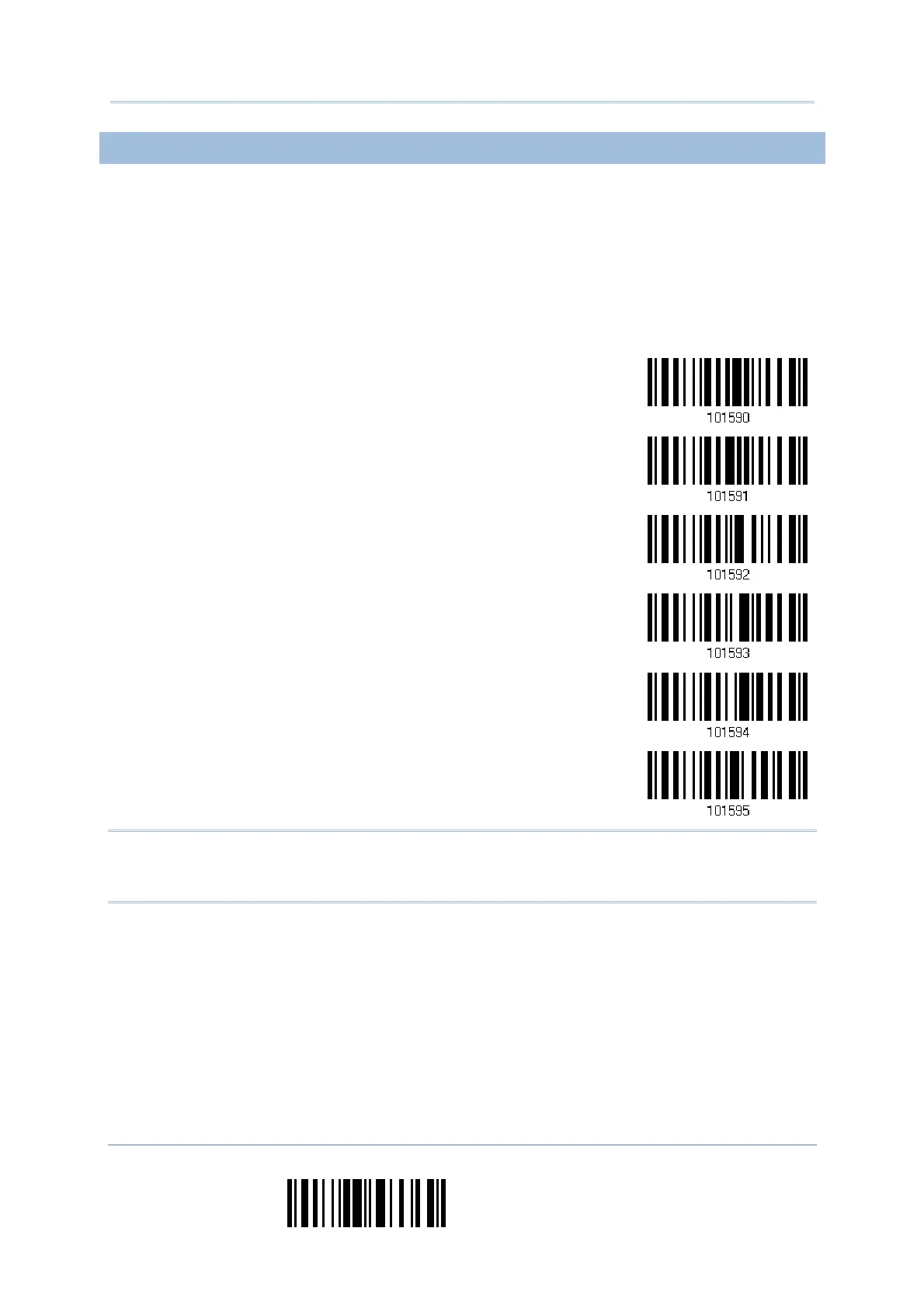

6.4.3 TOTAL NUMBER OF FIELDS
Data can be divided into at most 6 fields; each of them is numbered from F1 to F6
accordingly. However, only F1~F5 can be configured.
 The total number of fields must be specified correctly. If three fields are configured
for the editing format, the data characters after F3 will be assigned to F4
automatically. This feature is quite useful especially when data of variable lengths is
processed by editing formats.
*One Field
Two Fields
Three Fields
Four Fields
Five Fields
Six Fields
Note: The number of configurable fields is always one less than the total number of
fields specified. The extra data characters beyond the last field configured will be
automatically assigned to the next field.

CipherLab 1564 Specifications

General

Type	Handheld bar code reader
Wavelength	625 nm
Sensor type	CCD
Read rate (max)	60 reads/s
Tilt reading angle	-60 - 60 °
Optical sensor resolution	752 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wireless range	90 m
Bluetooth version	2.0+EDR
Operating frequency	2400 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wired & Wireless
Certification	BSMI, CE, C-tick, FCC, IC, NCC, KC, SRMC, TEL
Product color	Black
Housing material	Thermoplastic urethane (TPU)
Protection features	Shock resistant
International Protection (IP) code	IP30
Battery life	16 h
Input voltage	5 V
Battery voltage	3.7 V
Battery capacity	800 mAh
Power consumption	230 mA
Power source type	Battery, DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	153 mm
Width	61 mm
Height	93 mm
Weight	185 g
