60
Enter Setup
1664 Barcode Scanne
r
User Guide

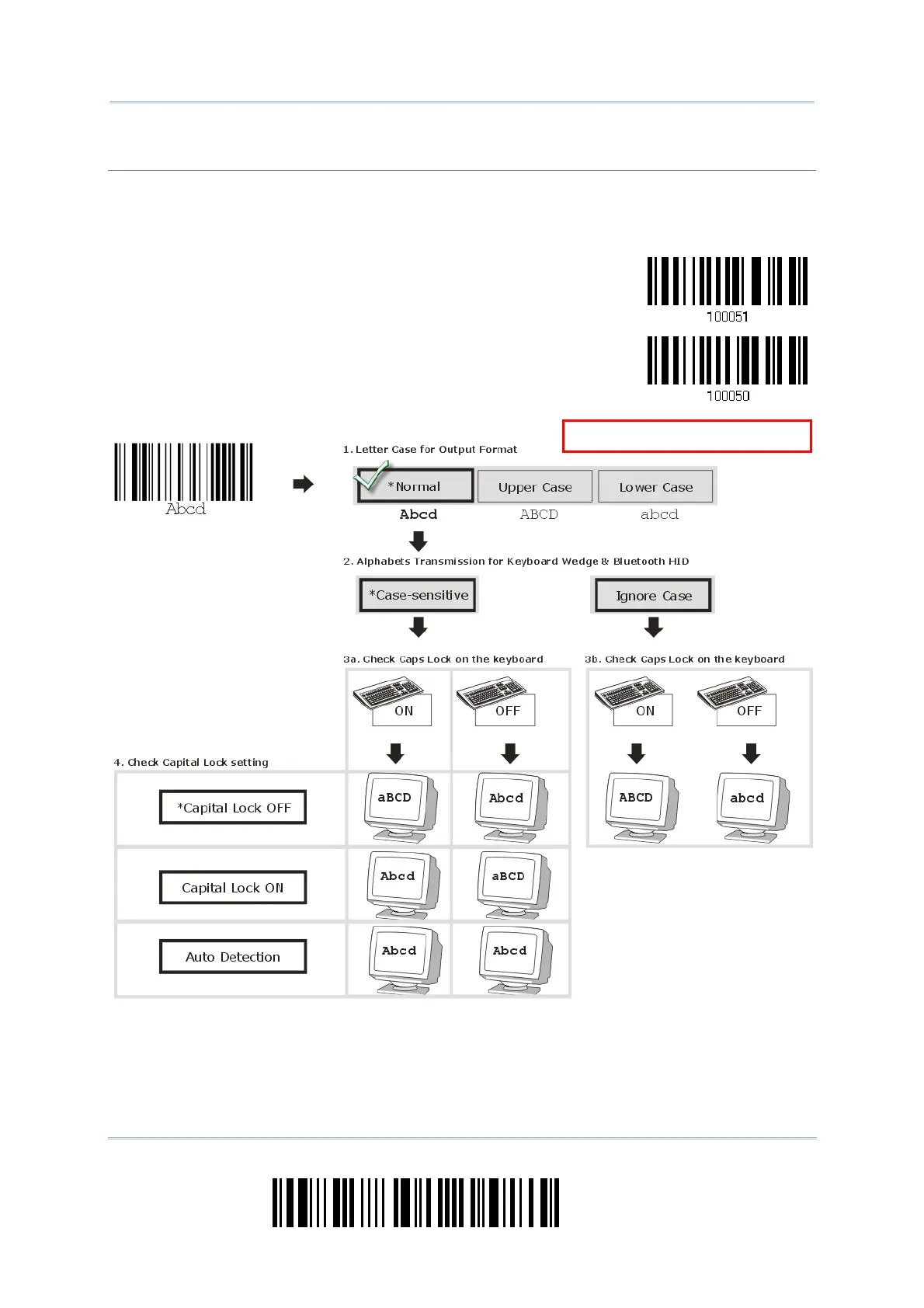

Alphabet Transmission
By default, the alphabet transmission is case-sensi
tive, meaning that the alphabet will be
transmitted according to the ori
ginal case, the status of Caps Lock on the k
eyboard, as well as the
Capital Lock setting. Select [Ignor
e Case] to have al
phabet transmitted according to the status of
Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
R
efer to 5.1 Letter Case.
70
72
Table of Contents
Default Chapter
3
For Canada
3
Important Notices
3
Care & Maintenance
4
For Hand-Held Product with RF Functions
4
Safety Precautions
4
Release Notes
5
Table of Contents
6
Introduction
12
Getting Familiarized with 1664 and 3610
13
Installing the Battery into 1664
13
Charging the Battery
14
Charging the Battery Via Charger
15
Using 3610
16
Inside the Package
17
Product Highlights
17
Symbologies Supported
18
Quick Start
20
Enter Configuration Mode
22
Exit Configuration Mode
22
Default Settings
23
Save User Settings as Defaults
23
Restore User Defaults
23
Restore System Defaults
23
Read a Setup Barcode
24
Configure Parameters
24
List the Current Settings
28
Create One-Scan Setup Barcodes
30
Chapter 1
32
Battery
32
How to Operate the Scanner
33
Auto Power off & Power-Saving
34
Understanding the Barcode Scanner
32
Memory
37
Transmit Buffer
37
Memory Mode
38
LED Indicator
40
Good Read LED
41
Good Read LED Duration
41
Beeper
42
Beeper Volume
43
Good Read Beep
44
Low Battery Alarm
45
Vibrator
45
Good Read Vibrator
45
Good Read Vibrator Duration
45
Send "NR" to Host
46
Scan Modes
47
Laser Mode
47
Auto off Mode
48
Auto Power off Mode
48
Aiming Mode
49
Multi-Barcode Mode
49
Scanning Timeout
50
Delay between Re-Read
51
Read Redundancy for All Symblogies
52
Addon Security for UPC/EAN Barcodes
53
Negative Barcodes
53
Using Direct USB Cable
54
Direct USB Interface
54
Disable Direct USB Interface
54
Pager Beep Duration
55
Picklist Mode
55
Time Stamp
56
Date and Time Settings
56
Separator for Date and Time
58
Date Format
59
Decode Setting
60
Aiming Pattern
60
Decoding Illumination
60
Hardware Reset
61
Restore System Defaults
61
Reset Connection
61
Selecting Output Interface
62
Bluetooth ® HID
63
Chapter 2
63
Bluetooth HID
63
Activate Bluetooth HID & Select Keyboard Type
64
Reset Connection
65
Keyboard Settings
66
Inter-Character Delay
73
Inter-Function Delay
73
HID Character Transmit Mode
74
Keypad Support for Iphone/Ipad
74
Bluetooth ® SPP Slave
75
Activate Bluetooth SPP, Slave Mode
75
Bluetooth SPP Slave
75
Inter-Function Delay
75
ACK/NAK Timeout
76
Bluetooth ® SPP Master
77
Activate Bluetooth SPP, Master Mode
77
Bluetooth SPP Master
77
Inter-Function Delay
79
ACK/NAK Timeout
80
Switch between Master/Slave Mode
80
USB HID Via 3610
81
Activate USB HID & Select Keyboard Type
82
Keyboard Settings
83
Inter-Character Delay
90
Inter-Function Delay
90
HID Character Transmit Mode
91
USB Virtual COM Via 3610
92
Activate USB Virtual COM
92
Inter-Function Delay
92
ACK/NAK Timeout
93
Direct USB HID
94
Activate USB HID & Select Keyboard Type
95
Keyboard Settings
96
Inter-Character Delay
103
Inter-Function Delay
103
HID Character Transmit Mode
104
Direct USB Virtual COM
105
Activate USB Virtual COM
105
Inter-Function Delay
105
ACK/NAK Timeout
106
Setting up a Wpan Connection
108
Connecting Via 3610
109
Connect to 3610
109
Change Interface
110
Configure Related Settings
111
Connecting Via Bluetooth ® Dongle
112
Change Interface
112
Configure Related Settings
113
Connect to Dongle
116
Changing Symbology Settings
124
Chapter 4
125
Codabar
125
Start/Stop Transmission
125
CLSI Conversion
125
Code Length Qualification
126
Code 25 - Industrial 25
127
Code Length Qualification
128
Code 25 - Interleaved 25
129
Verify Check Digit
129
Transmit Check Digit
129
Convert to EAN-13
130
Code Length Qualification
131
Code 25 - Matrix 25
132
Verify Check Digit
132
Transmit Check Digit
132
Code Length Qualification
133
Code 25 - Chinese 25
134
Italian Pharmacode (Code 32)
135
Code 39
136
Verify Check Digit
136
Transmit Check Digit
136
Standard/Full ASCII Code 39
137
Code Length Qualification
138
Trioptic Code 39
139
Code 93
140
Code Length Qualification
141
Code 128
142
Gs1-128 (Ean-128)
143
Transmit Code ID
143
Field Separator (GS Character)
143
Isbt 128
144
ISBT Concatenation
144
ISBT Concatenation Redundancy
145
GS1 Databar (RSS Family)
146
Select Code ID
146
GS1 Databar Omnidirectional (RSS-14)
147
GS1 Databar Expanded (RSS Expanded)
148
GS1 Databar Limited (RSS Limited)
149
Convert to UPC/EAN
150
Msi
151
Verify Check Digit
151
Transmit Check Digit
151
Code Length Qualification
152
142
153
Ean-8
153
143
154
Ean-13
154
Convert to ISBN
155
Convert to ISSN
155
UCC Coupon Extended Code
156
Upc-A
157
Transmit System Number
158
Transmit Check Digit
158
Upc-E
159
Select System Number
160
Convert to UPC-A
160
Transmit System Number
161
Transmit Check Digit
161
Code 11
162
Verify Check Digit
162
Transmit Check Digit
162
Code Length Qualification
163
Composite Code
164
Composite CC-A/B
164
Composite CC-C
164
Composite TLC-39
164
UPC Composite Mode
165
GS1-128 Emulation Mode for UCC/EAN Composite Codes
165
US Postal Code
166
US Postnet
166
US Planet
166
Transmit Check Digit
166
UK Postal Code
167
UK Postal
167
Transmit Check Digit
167
More Postal Code
168
Japan Postal
168
Australian Postal
168
Dutch Postal
168
USPS 4Cb/One Code/Intelligent Mail
168
UPU FICS Postal
169
Symbologies
170
Pdf417
170
Micropdf417
170
Data Matrix
171
Maxicode
172
QR Code
172
Microqr
172
Aztec
172
Macro PDF
173
Transmit/Decode Mode
173
Escape Characters
174
Transmit Control Header
174
Chapter 5
176
Letter Case
176
Character Substitution
177
Select a Set for Character Substituion
178
Symbologies for Character Substitution (All 3 Sets)
179
Prefix/Suffix Code
189
Code ID
190
Select Pre-Defined Code ID
190
Change Code ID
193
Clear Code ID Settings
196
Length Code
197
Multi-Barcode Editor
205
Edit a Concatenation of Barcodes
206
Activate the Concatenation of Barcodes
208
Removal of Special Character
209
Defining Output Format
176
Applying Formats for Data Editing
210
Chapter 6
211
Activating Editing Formats
211
Activate Editing Formats
211
Exclusive Data Editing
212
How to Configure Editing Formats
213
Select Format to Configure
214
Restore Default Format
215
Configuring Format - Define Data Criteria
216
Applicable Code Type
216
Data Length
226
Matching String & Location
227
Configuring Format - Define Data Field
228
Start Position
228
Field Adjustment
228
Total Number of Fields
229
Field Settings
230
Pause Field Setting
236
Configuring Format - Define Transmission Sequence
237
Programming Examples
239
Example I
239
Example II
240
Specifications
242
Firmware Upgrade
244
How to Upgrade Firmware
244
Using 3610
244
Using Direct USB Virtual COM
246
Using Bluetooth ® Dongle
247
How to Upgrade 3610 Firmware
249
Upgrading 3610 CPU Firmware
249
Upgrading 3610 USB Bridge Firmware
250
Host Serial Commands
252
Serial Commands
252
Example
253
3610 Setup Barcodes & Serial Commands
254
3610 Serial Command Table
255
Example
257
Keyboard Wedge Table
258
Key Type & Status
259
Key Type
259
Key Status
259
Example
260
Numeral Systems
262
Decimal System
262
Hexadecimal System
263
ASCII Table
264
Entering PIN Code for Authentication
265
Use Preset PIN
265
Disable Authentication or Use Random PIN
266
