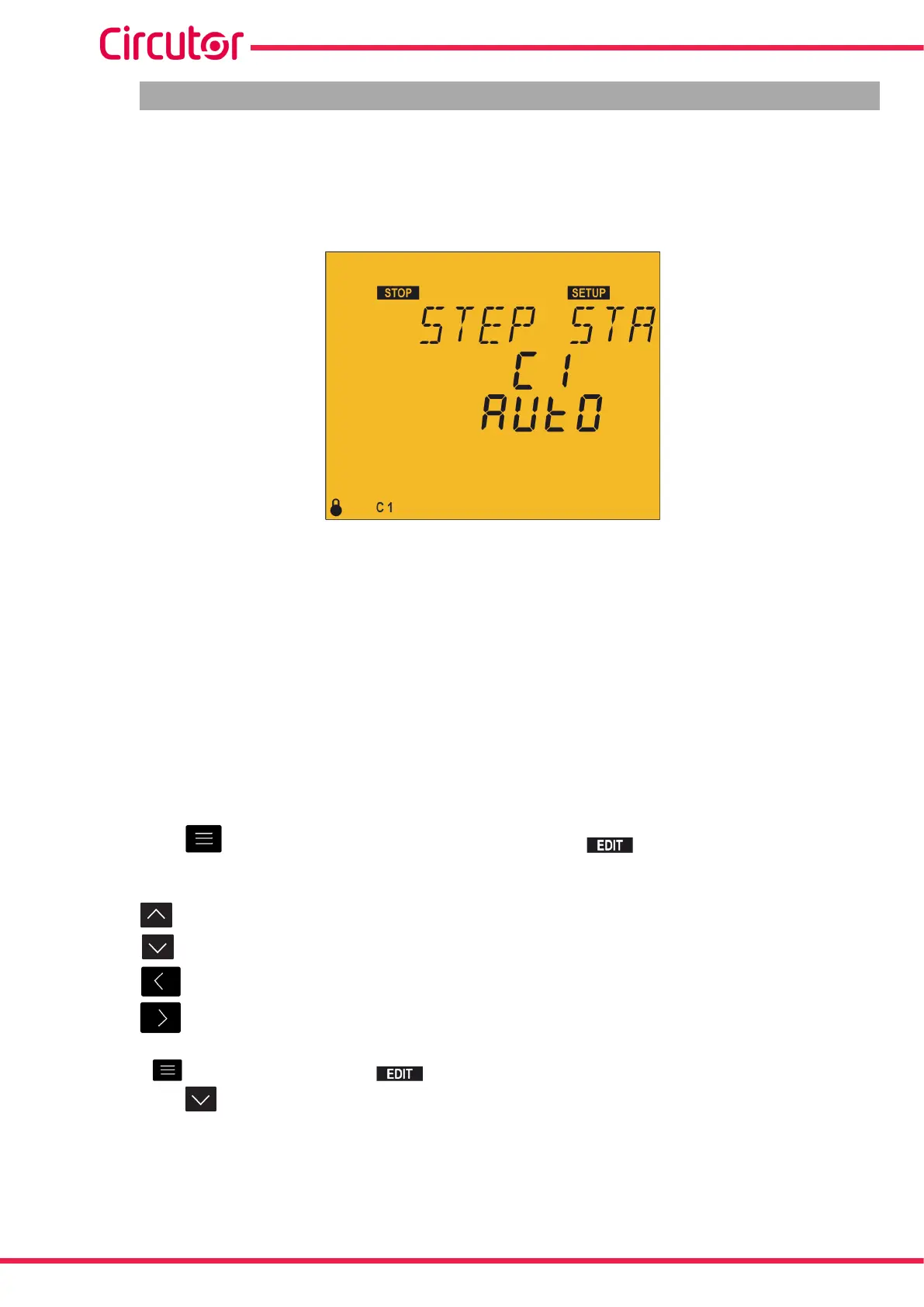

5.14.- STATUS OF THE STAGES
This parameter is repeated for each of the 6, 12 or 14 possible stages, offering the opportunity to force
their status without paying attention to the operation performed by the actual device.
In order to identify which of the 14 stages is being configured, the screen shows C1, C2, etc.
The configuration options for each stage are as follows:
AUTO: The status of the stage depends on the operation performed by the device.
On: Stage forced to ON, always connected.
OFF: Stage forced to OFF, always disconnected.
On NC: Stage forced to ON, always connected but the system does not take into account
its connected power.
By default, all the stages are configured as AUTO.
On the measurement screens, the forced states of the stages are shown by activating the bottom line
of the capacitor status bar. (“4.4.1. STATUS OF THE CAPACITORS”)
Press the key to enter edit mode. It is identified by the symbol and the flashing of the
digits to be modified.
The key shows the next option.
The key shows the previous option.
The key skips to the previous stage.
The key skips to the next stage.
Press to validate the data; the symbol disappears from the display.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen, “5.30.- SIMULATION
SCREEN”.
88
Computer SMART III
Instruction Manual
