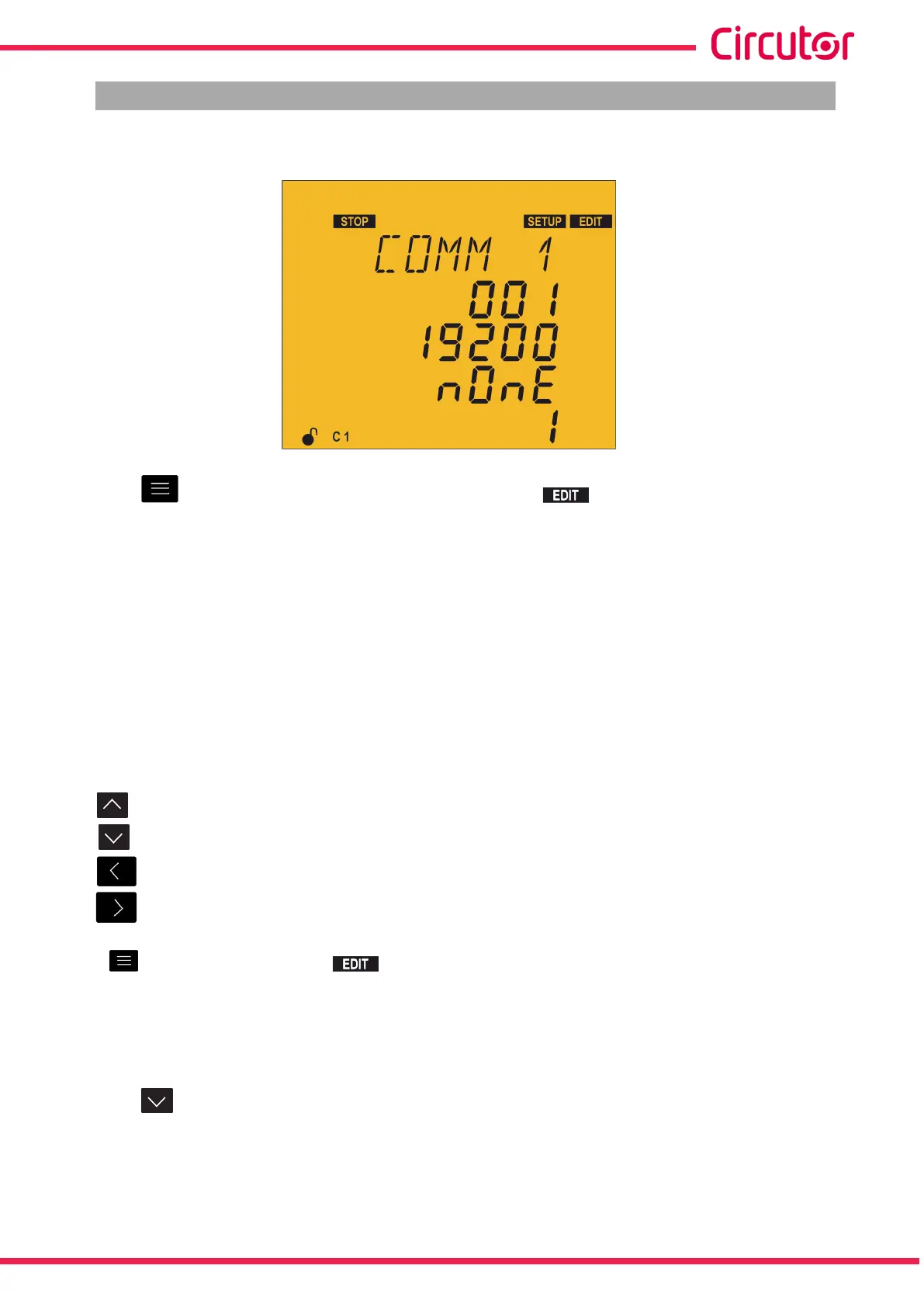

5.19.- COMMUNICATIONS
In this point the RS-485 communication parameters can be configured.
Press the key to enter edit mode. It is identified by the symbol and the flashing of the
digits to be modified.
The parameters to be configured are:
The peripheral number assigned, from 1 to 254.
The transmission speed, BaudRate: 9600 or 19200.
The parity:
none: no parity.
Even: even parity.
Odd: odd parity.
The number of stop bits: 1 or 2
The key increases the digit value or shows the next option.
The key reduces the digit value or shows the next option.
The key skips to the previous digit or the previous parameter.
The key skips to the next digit or the next parameter.
Press to validate the data; the symbol disappears from the display.
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen, “5.30.- SIMULATION
SCREEN”.
