Circutor Computer SMART III 14 User Manual

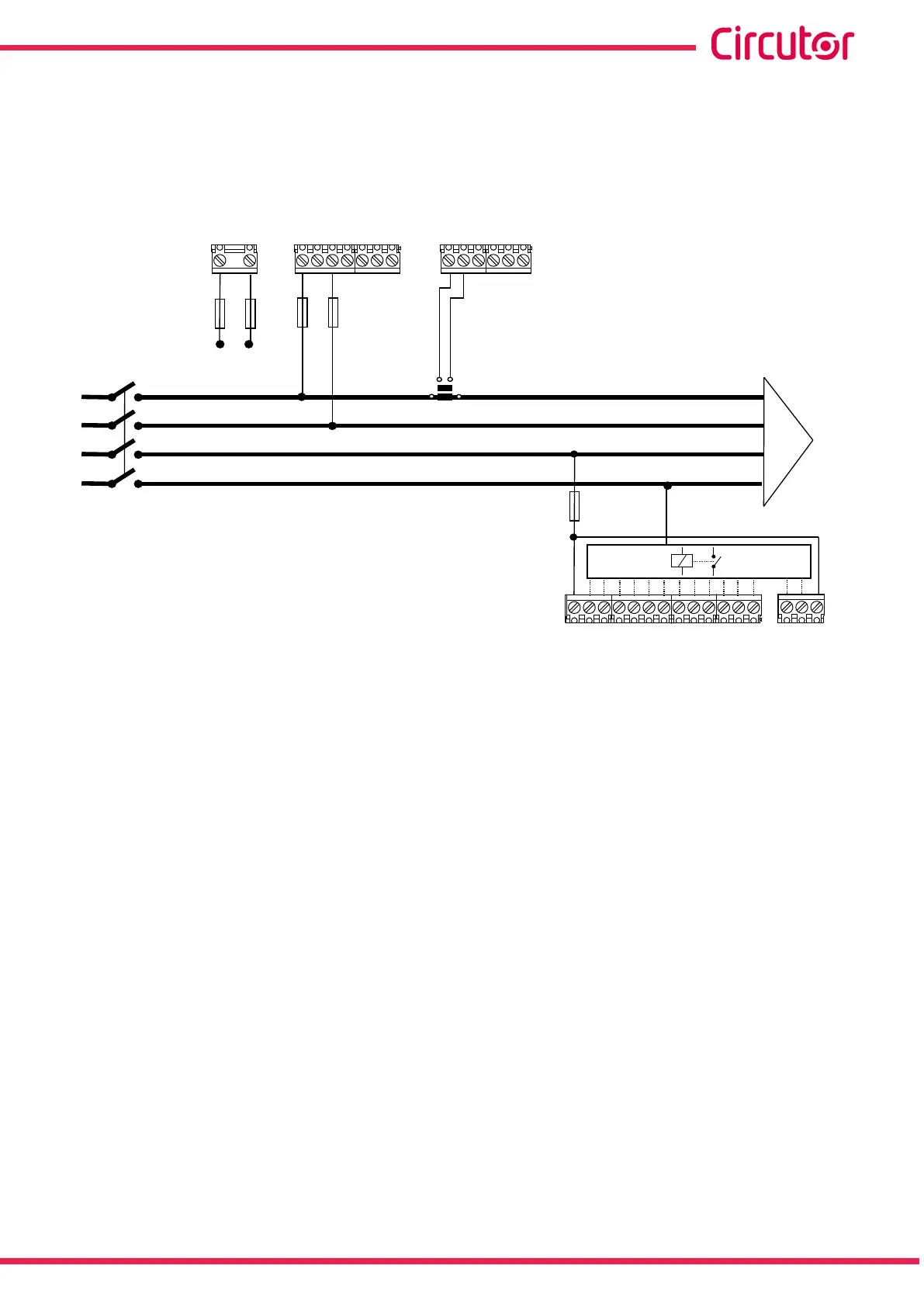

3.5.9.- 2 voltages and 1 current, Computer SMART III 14 model
Connection type: 2U.1C
VLN
IL2
S1
L1
L2
L3
N
VL1 VL2 VL3
S1 S2
P1
P2
S1 S1S2 S2 S2
IL3
IL1
A1 A2
Power
Supply
Power
Supply
COM 1 2 3 4 5 6 7 8 9 10 11 12
Relay
13 14 C
OM
Figure 11: 2 voltages and 1 current, Computer SMART III 14 model.
Note: If the connection layout mentioned above is not respected, the phase must be adjusted, following
the procedure described in section “5.6.- PHASE CONNECTION”
Note: In this type of connection, the Neutral connection is not necessary.
Note: In this type of connection, the current transformer must be connected to the IL1 terminals, and
the two voltages must be connected to VL1 and VL2.
21
Instruction Manual
Computer SMART III
