If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen, “5.30.- SIMULATION
SCREEN”.

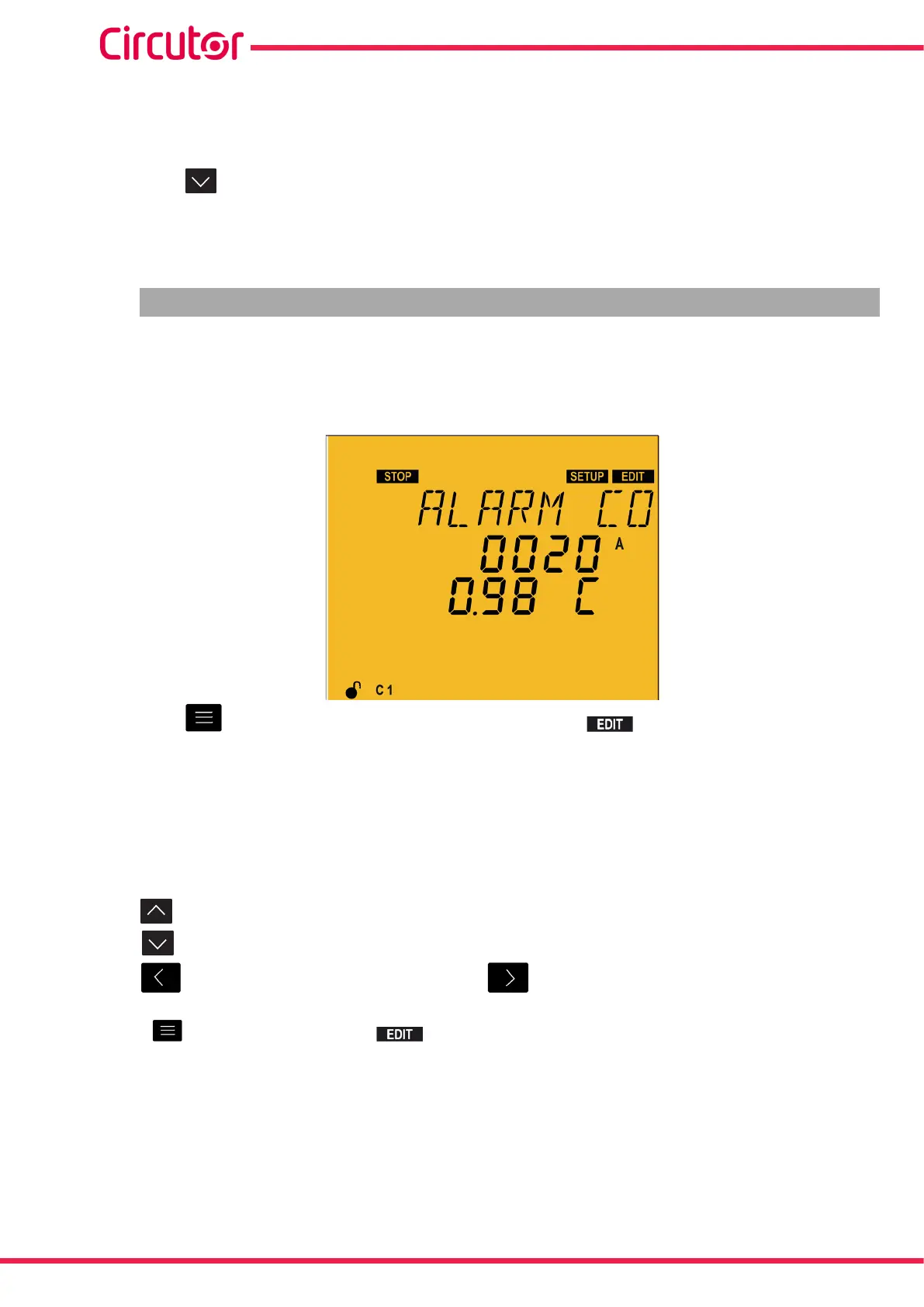

5.24.- COS φ HIGH ALARM
The high limit of the cos φ alarm is set at this point. This is activated whenever the value of cos φ is
above the specified value and the current is higher than the programmed value.
Note: The alarm must be enabled (“5.21.- ENABLING ALARMS”).
Press the key to enter edit mode. It is identified by the symbol and the flashing of the
digits to be modified.
In order to avoid possible false activations of said alarms, they have a predefined delay of 15 seconds.
The current value.
The cos φ value, it is capacitive C.
The key increases the digit value or shows the next option.
The key reduces the digit value or shows the next option.
The key skips to the previous digit and the key skips to the next digit.
Press to validate the data; the symbol disappears from the display.
Current:
Maximum value: 9999 A
Minimum value: 0 A
98
Computer SMART III
Instruction Manual
