Circutor Computer SMART III 14 - 5�26�- CURRENT X I THD ALARM

In the No Connection status, the device does not connect the stages, but also does not disconnect
them if the operation requires it.
In the Disconnection status, it disconnects the stages and does not allow them to connect.
The key increases the digit value.
The key reduces the digit value.
The key skips to the previous digit and the key skips to the next digit.
Press to validate the data; the symbol disappears from the display.
Lo Value and HI Value:
Maximum value: 99 %
Minimum value: 1 %
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen, “5.30.- SIMULATION
SCREEN”.

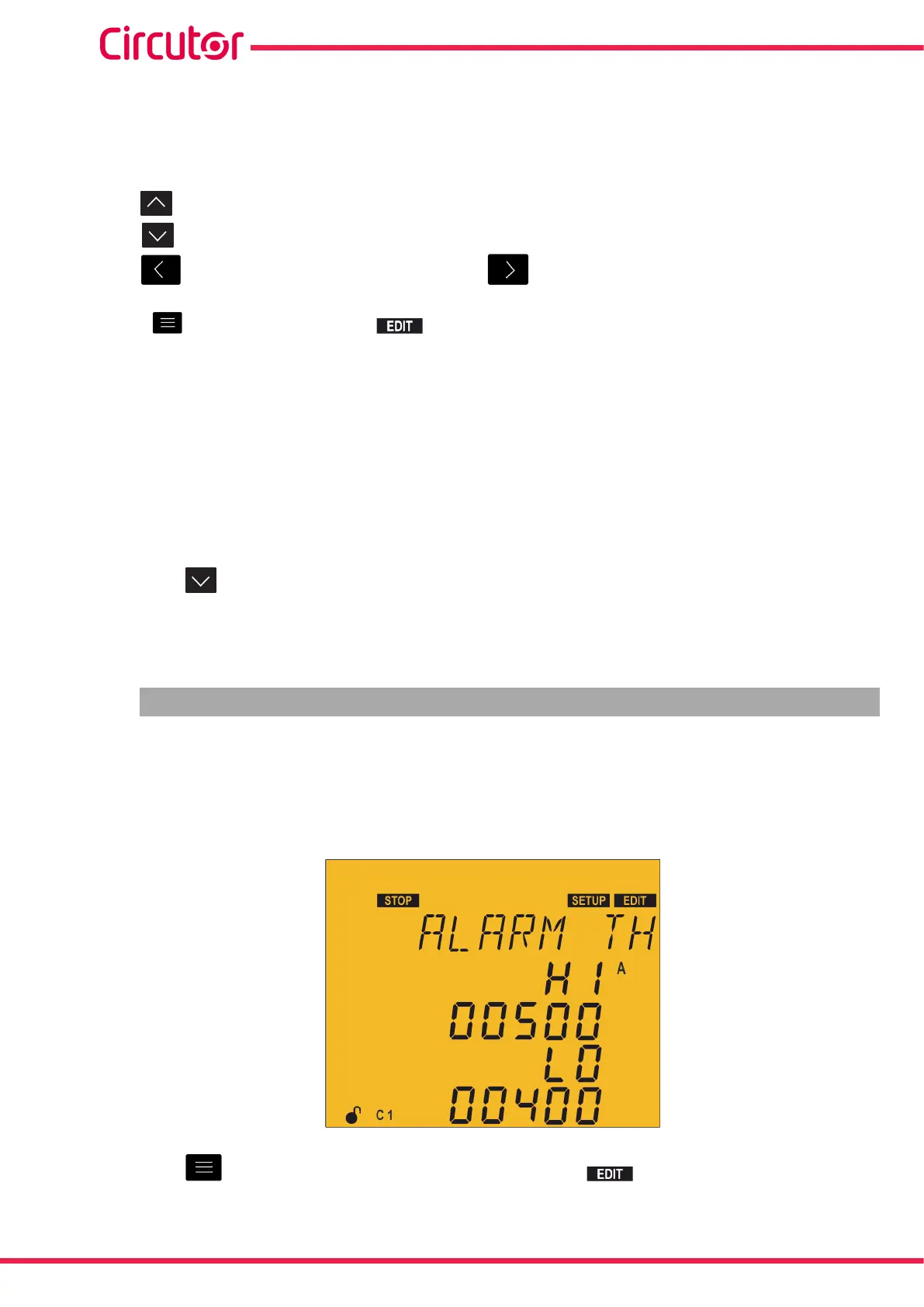

5.26.- CURRENT x I THD ALARM
In this point the thresholds above which the alarm for the % of the value of the current x ITHD (E09)
is activated can be configured. The programmed values are useful for the 3 phases which the device
measures.
Note: The alarm must be enabled (“5.21.- ENABLING ALARMS”).
Press the key to enter edit mode. It is identified by the symbol and the flashing of the
digits to be modified.
100
Computer SMART III
Instruction Manual
