RGU-10A , RGU-100A
Instruction Manual
L1
N
L
3
L2
N
L2
L1
L3

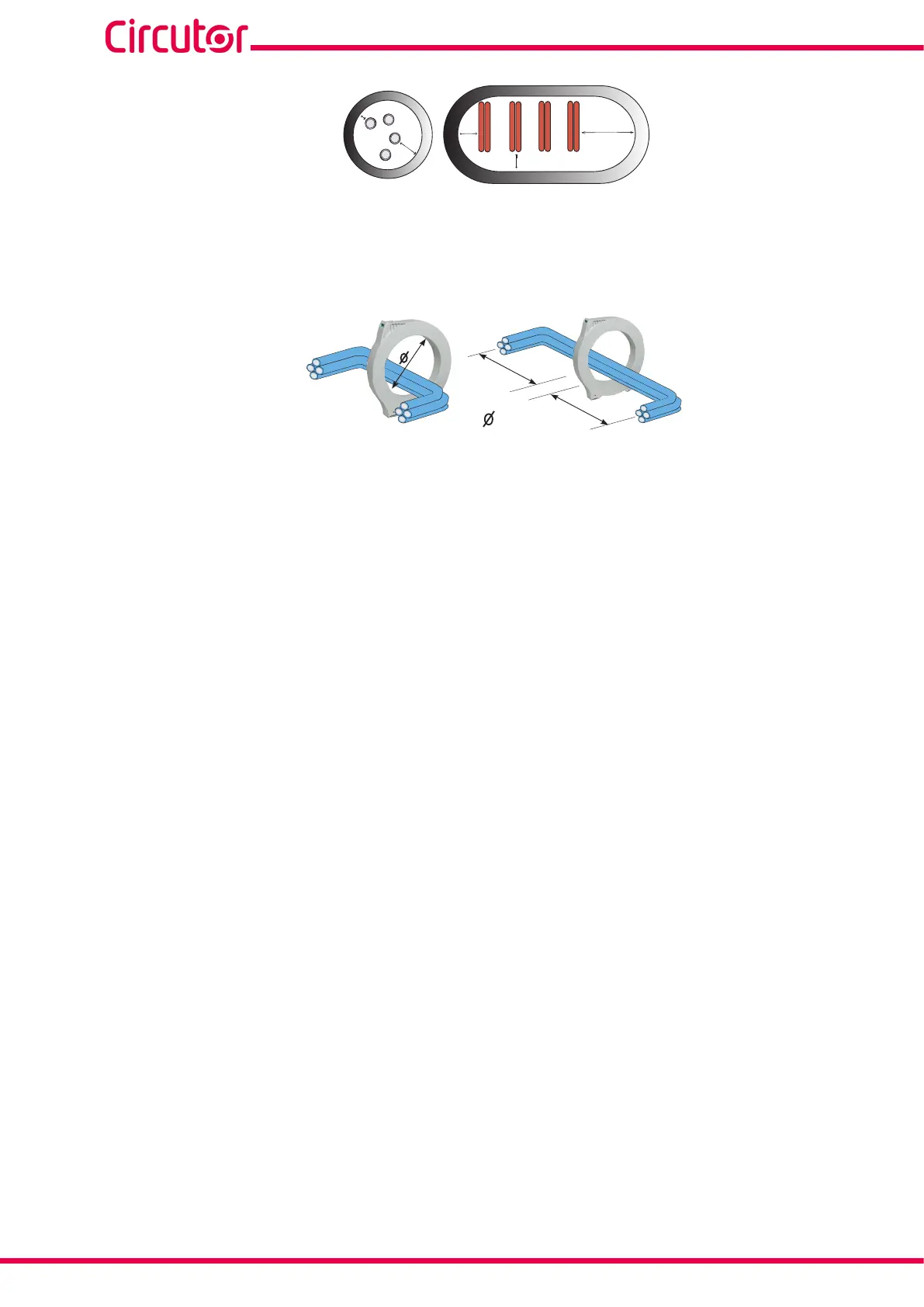

Figure 13:Incorrect distribution of conductors.
The elbows of the conductors passing through the WGC must be avoided, both at inlet (before feed-
through) and outlet (after feed-through),Figure 14.
L
L
L>
Figure 14:Avoid elbows in conductors.
