RGU-10A, RGU-100A
(Continued) Environmental features
IK protection rating IK08
Pollution degree 2
Use Indoor
Mechanical features
Terminals: A1, A2, 1 ... 8, 19, 20 2.5 mm
2
≤ 0.4 Nm, M2.5 Flat
Cable from WGC to RGU-10A / RGU-100A
Maximum length 5 m
Dimensions Figure 37 (mm)
Weight 186 g
Enclosure Self-extinguishing V0 plastic
Standards
Low-voltage switchgear and control gear. Part 2: Circuit-breakers. Annex M: Modular Re-
sidual Current Devices
IEC 60947-2-M
RGU-100A
Electrical accessories - Residual current monitors (RCMs) - Part 1: RCMs for household and
similar uses
IEC 62020-1
Environmental testing -- Part 2-1: Tests - Test A: Cold (IEC 60068-2-1:2007) UNE-EN 60068-2-1
Environmental testing -- Part 2-2: Tests - Tests B: Dry heat. (IEC 60068-2-2:2007) UNE-EN 60068-2-2
Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state UNE-EN 60068-2-78
90
45
44
52.5 74
118

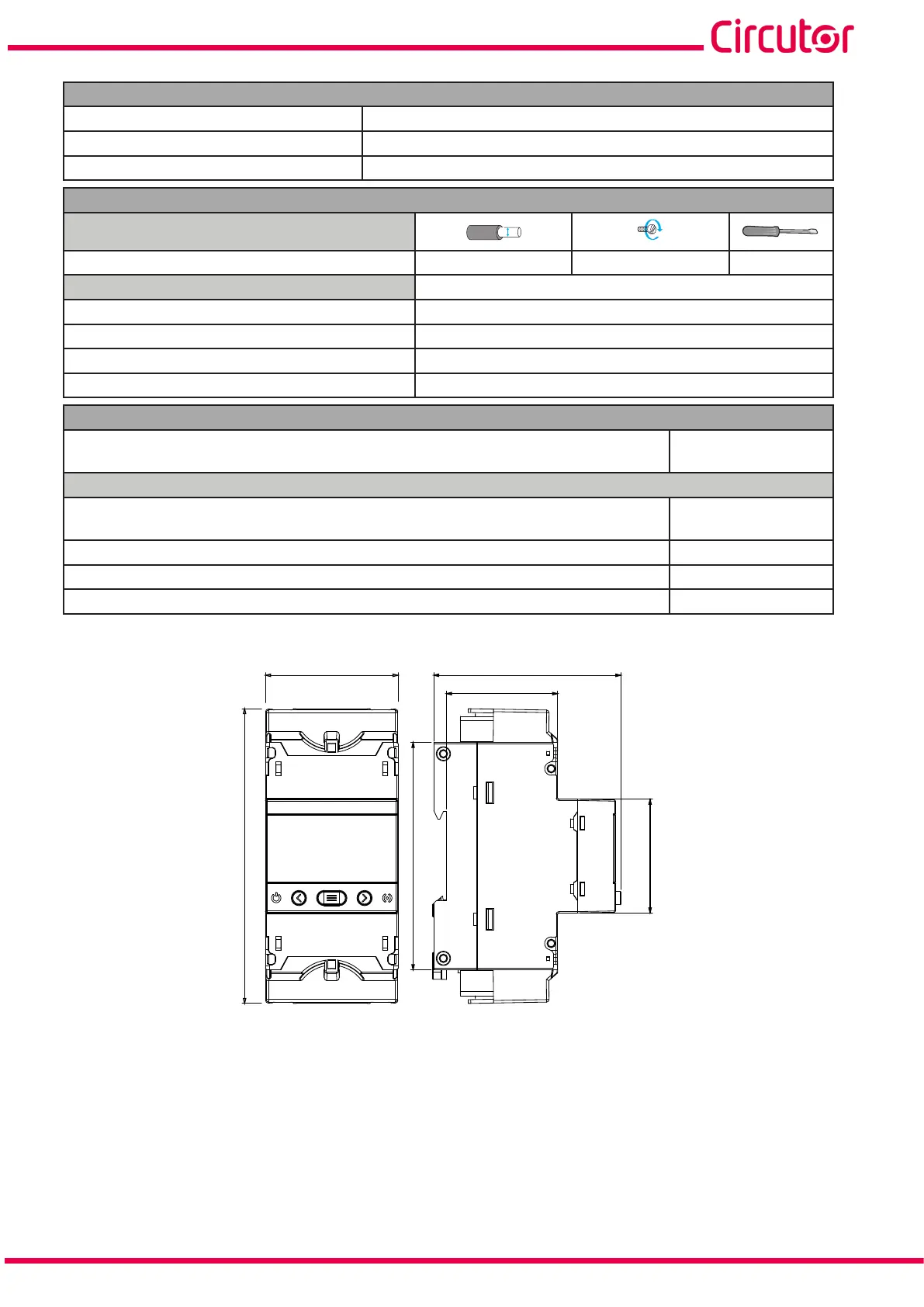

Figure 37: Dimensions of RGU-10A/RGU-100A.
