Cirris CH2 - Mapping Visible to Hidden Points

Traditional Fixturing 31

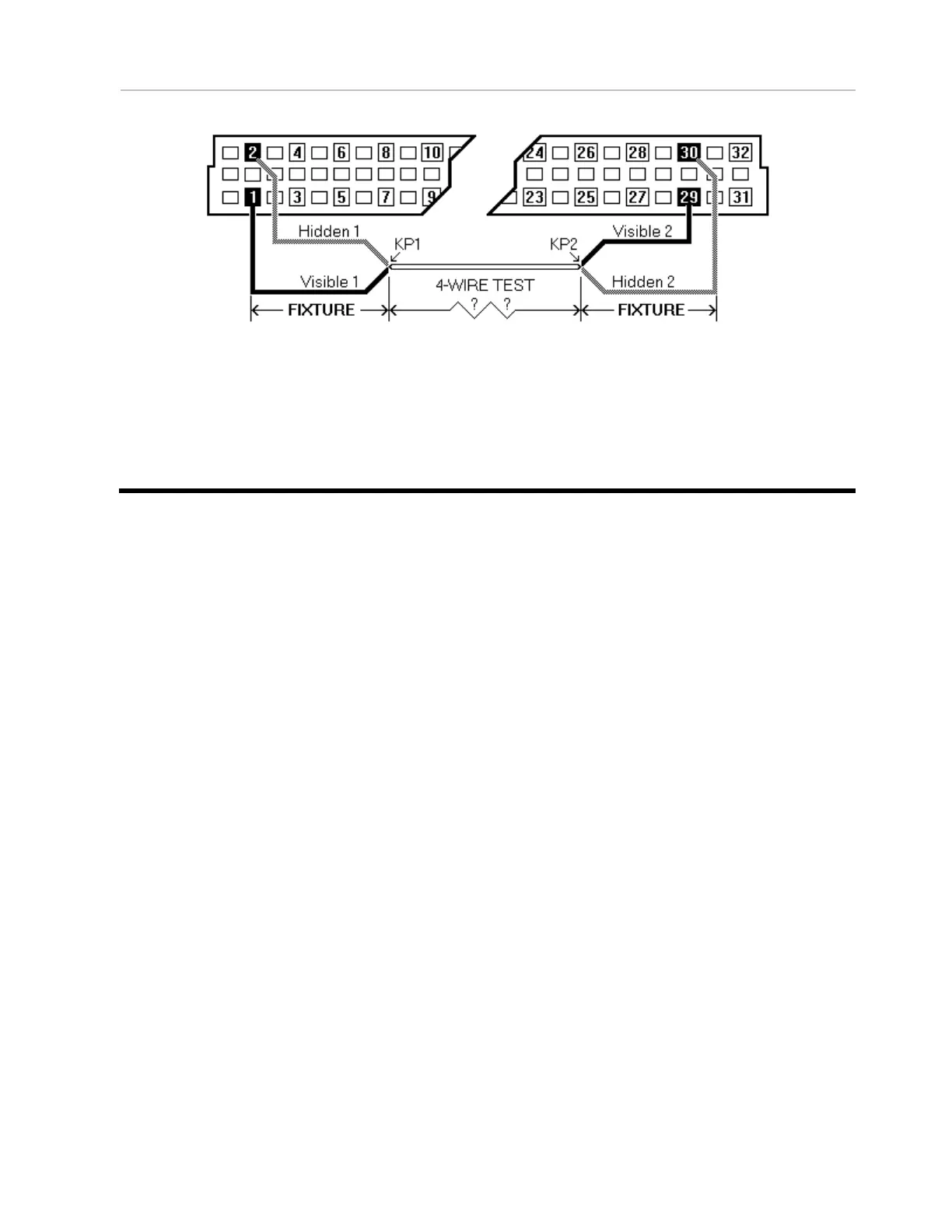

Mapping the Visible points to Hidden mates
From any visible point, the next vertical point is its hidden pin mate.
Now that you have built your fixturing, you are ready to Define Four Wire Connectors in
the Easy-Wire software. Refer to the online manual/help system for more information
on setting up a four-wire test program.
