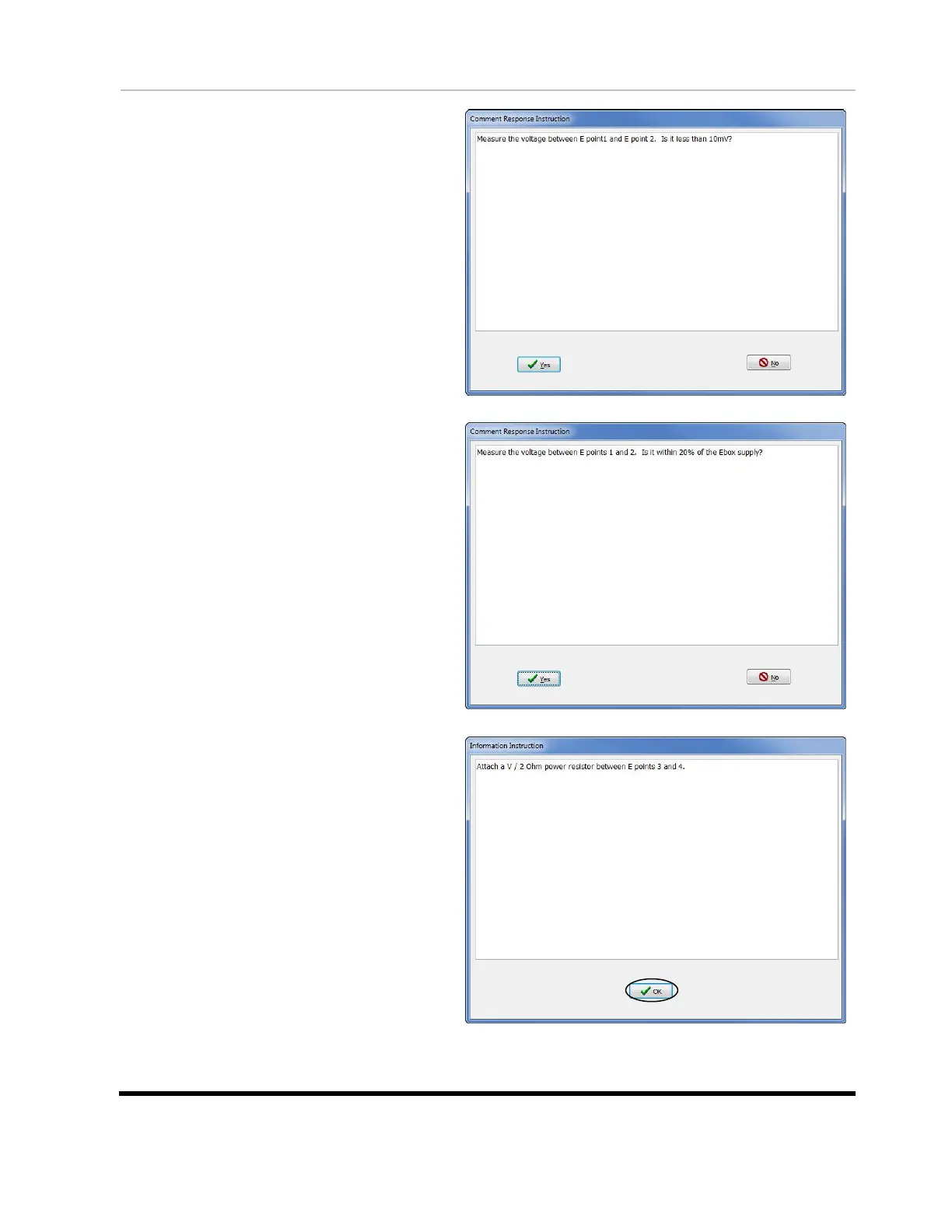

7. Use your voltmeter to measure
the voltage between Energization
points 1 and 2. If the voltage is
less than 10mV, click Yes.
Otherwise, click No.
8. Use the voltmeter to measure the
voltage between the same two
points. If the voltage is within
20% of the EBox supply.
9. Attach the second power resistor
between Energization points 3
and 4. Attach the resistor that
has an Ohm value equivalent to
the power supply voltage divided
by 2 and click OK.
If the test passes, your EBox is working correctly. If the test fails, call Cirris at 1-800-441-9910
for assistance.
