Cisco IAD2430 Series Integrated Access Devices Software Configuration Guide
OL-4306-03
Chapter 1 Understanding Interface Numbering and Cisco IOS Software Basics
Identifying Cisco IAD2430 Models
Cisco IAD2432-24FXS IAD
The Cisco IAD2432-24FXS provides 24 analog FXS ports, two 10/100BASE-T ports, and two T1/E1
WAN ports. The chassis has the following interfaces (see
Figure 1-6):
• RJ-21 analog voice interface
• Two T1/E1 ports
• Two 10/100BASE-T ports
• One WIC/VIC slot
• External flash memory
• AC and DC power inputs

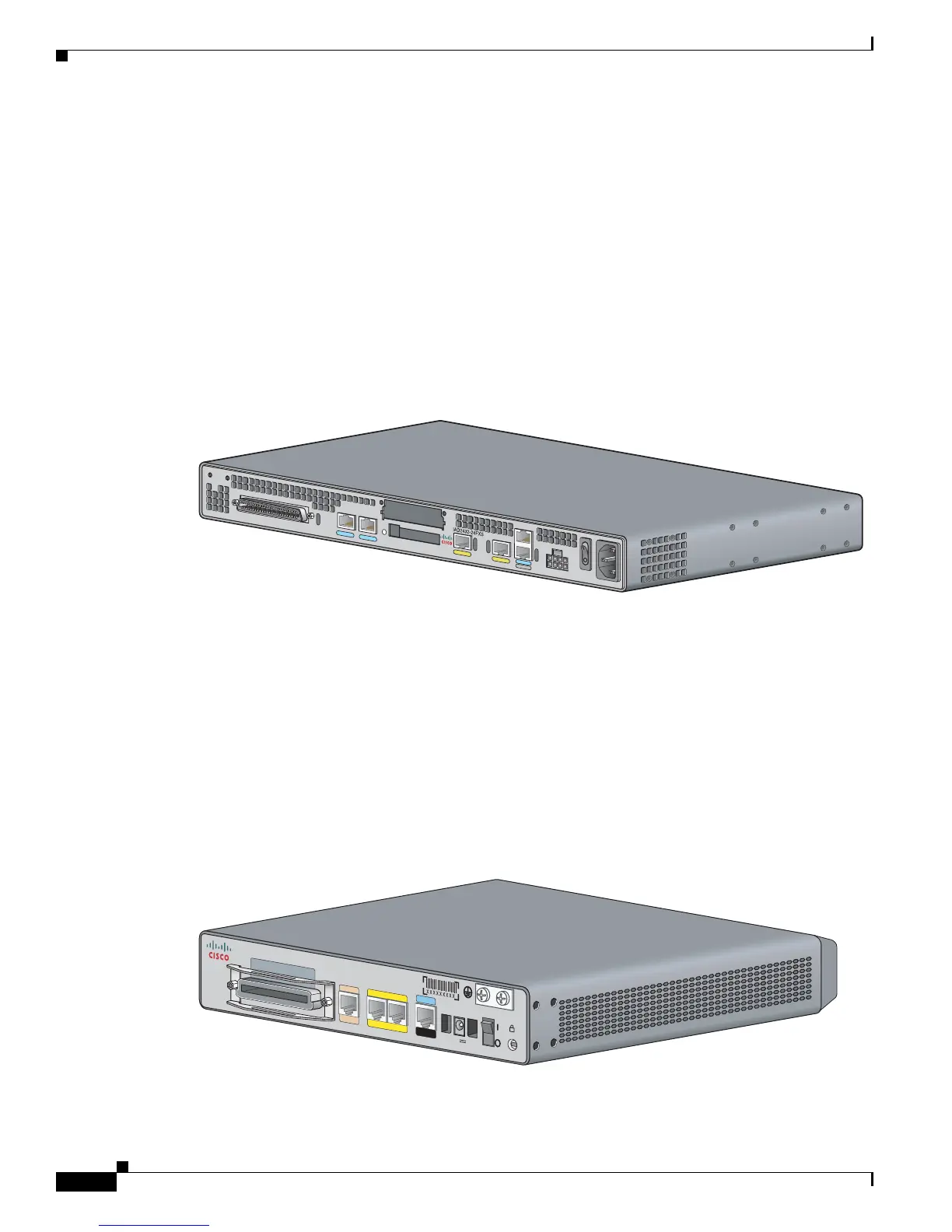

Figure 1-6 Cisco IAD2432-24FXS Chassis—Back Panel
Cisco IAD2435-8FXS IAD
The Cisco IAD2435-8FXS provides eight analog FXS ports, two Fast Ethernet ports, and one T1/E1
WAN port. The chassis has the following interfaces (see
Figure 1-7):
• RJ-21 analog voice interface
• One T1/E1 port
• Two Fast Ethernet ports
• AC and DC power inputs
Figure 1-7 Cisco IAD2435-8FXS Chassis—Back Panel
88824
231873
IAD2435-8FXS
12V
DC
SA
CONSOLE
AU
X
FastEthernet
WAN
0
/1
0
/0
T1
/E
1
FXS
