Cisco 2431 - IAD Router - IAD SJ Configuration; IAD SLC Configuration

4-7
Cisco IAD2430 Series Integrated Access Devices Software Configuration Guide
OL-4306-03
Chapter 4 Configuring Voice over IP
VoIP Configuration Examples

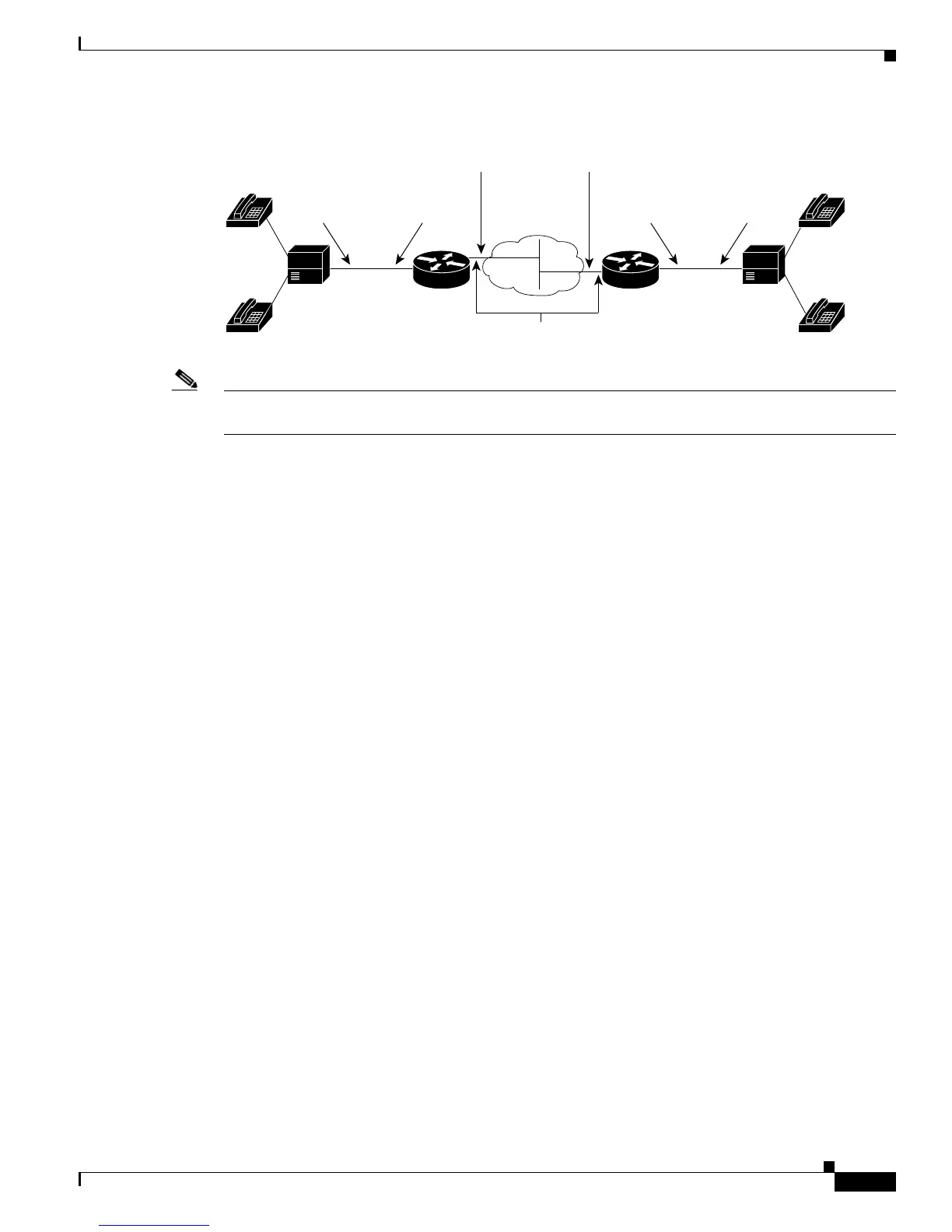

Figure 4-2 Linking PBX Users with Digital E&M Trunk Lines over T1/E1 CAS
Note This example assumes that the company already has established a working IP connection between its
two remote offices.
IAD SJ Configuration
hostname sanjose
!Configure digital voice-ports
controller T1 1/0
ds0-group 1 timeslots 1-24 type e&m-immediate-start
!Configure pots dial-peer 1
dial-peer voice 1 pots
destination-pattern +527....
port 1/1:0
!Configure voip dial-peer 2
dial-peer voice 3 voip
destination-pattern +569....
session target ipv4:172.16.65.182
!Configure the fastethernet interface
interface fe 0/0
ip address 172.16.1.123
no shutdown
IAD SLC Configuration
hostname saltlake
!Configure digital voice-ports
controller T1 1/0
ds0-group 1 timeslots 1-24 type e&m-immediate-start
!Configure pots dial-peer 1
dial-peer voice 1 pots
destination-pattern +569....
port 1/1:0
!Configure voip dial-peer 2
dial-peer voice 3 voip
destination-pattern +527....
session target ipv4:172.16.65.123
!Configure the fastethernet interface
interface fe 0/0
ip address 172.16.1.182
no shutdown
95108
Dial peer
1 POTS
IAD SJ
T1 1/1
Digital E&M with
T1 CAS
Digital E&M with
T1 CAS
T1 1/1
San Jose
(408)
Salt Lake City
(801)
IAD SLC
PBX PBX
172.16.1.123
172.16.65.182
Voice port
1/1:0
Dial peer
1 POTS
Voice port
1/1:0
IP cloud
IAD IAD
FaE 0/0
