Cisco IAD2430 Series Integrated Access Devices Software Configuration Guide
OL-4306-03
Chapter 1 Understanding Interface Numbering and Cisco IOS Software Basics
Where to Go Next

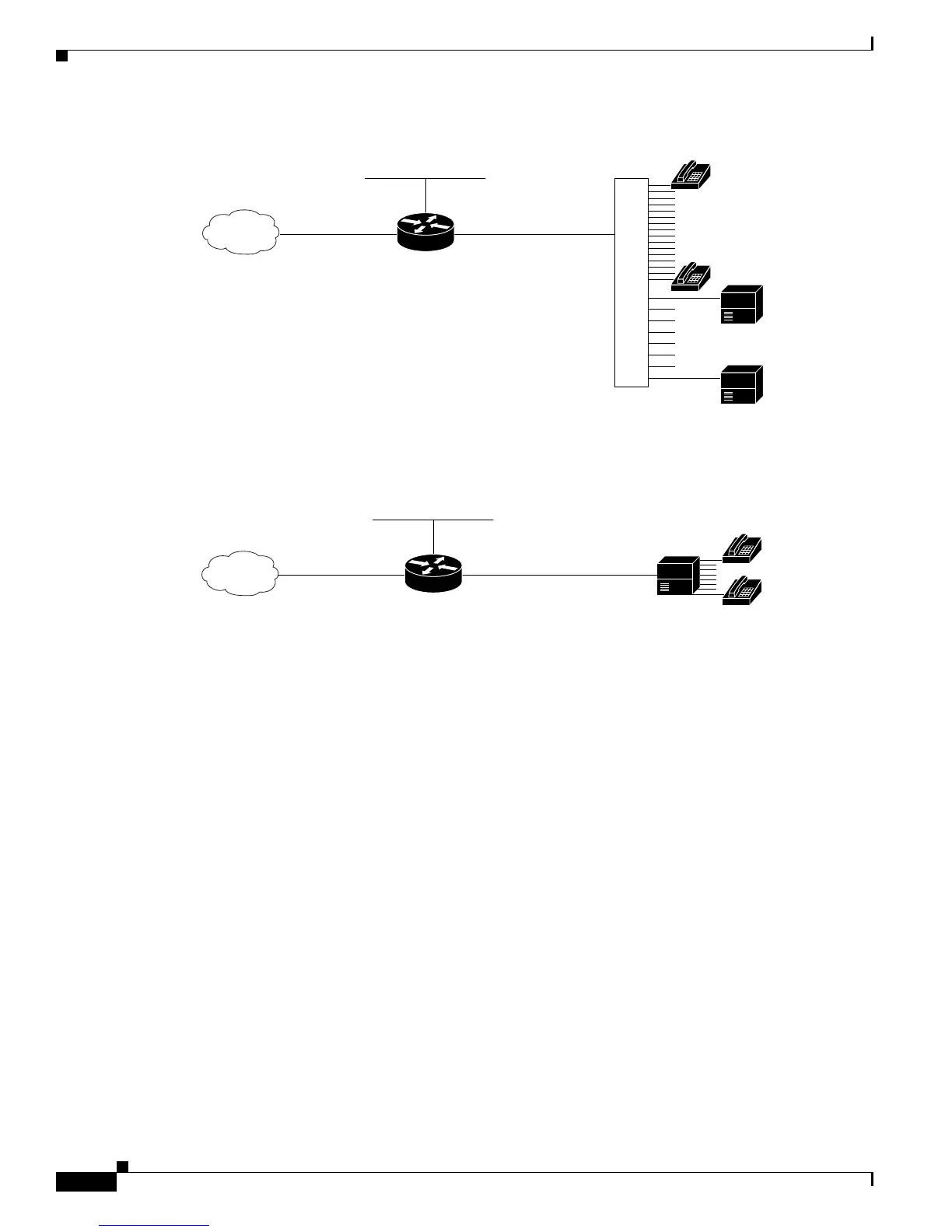

Figure 1-11 T1/E1 WAN Interface with Analog FXS and FXO User Interfaces
Figure 1-12 T1/E1 WAN Interface with T1 Interface to PBX User Interface
Where to Go Next
Now that you have learned some Cisco IOS software basics and seen some typical deployment scenarios,
you can begin to configure the router by using the command-line interface (CLI).
Remember that:
• You can use the question mark (?) and arrow keys to help you enter commands.
• Each command mode restricts you to a set of commands. If you have difficulty entering a command,
check the prompt and then enter the question mark (?) for a list of available commands. You might
be in the wrong command mode or be using the wrong syntax.
• To disable a feature, generally enter the keyword no before the command; for example, no ip
routing.
• You need to save your configuration changes to NVRAM so that the changes are not lost if there is
a system reload or power outage.
Go to Chapter 2, “Using the setup Command Facility,” to begin configuring the router.
Cisco IAD model number:
Cisco IAD2432-24FXS
with
Cisco VIC2-4FXO interface card
IAD
WAN
T1 Multiple FXS and FXO
24 FXS
voice ports
4 FXO
voice ports
Ethernet
Distribution
panel
88996
Analog
telephones
PBX
PBX
88995
IAD
WAN
T1 T1
Ethernet
PBX
Cisco IAD model number:
IAD2431-1T1E1
