4-9
Cisco IAD2430 Series Integrated Access Devices Software Configuration Guide
OL-4306-03
Chapter 4 Configuring Voice over IP
VoIP Configuration Examples
IAD SLC Configuration
! Configure pots dial-peer 1
dial-peer voice 1 pots
destination-pattern +9...........
port 2/0
! Configure voip dial-peer 2
dial-peer voice 2 voip
destination-pattern +14081111111
session target ipv4:172.16.1.123
! Configure serial interface
interface serial 0/0
ip address 172.16.65.182
no shutdown
PSTN Gateway Access Using an FXO Connection in PLAR Mode
The following example shows how to configure VoIP to link users with the PSTN gateway using an
Foreign Exchange Office (FXO) connection in private line, automated ringdown (PLAR) mode.
In this example, PSTN users in Salt Lake City, Utah, can dial a local number and establish a private line
connection in a remote location. As in the previous example (that is, a PSTN gateway using an FXO
connection) Router SLC in Salt Lake City is connected directly to the PSTN through an FXO interface.

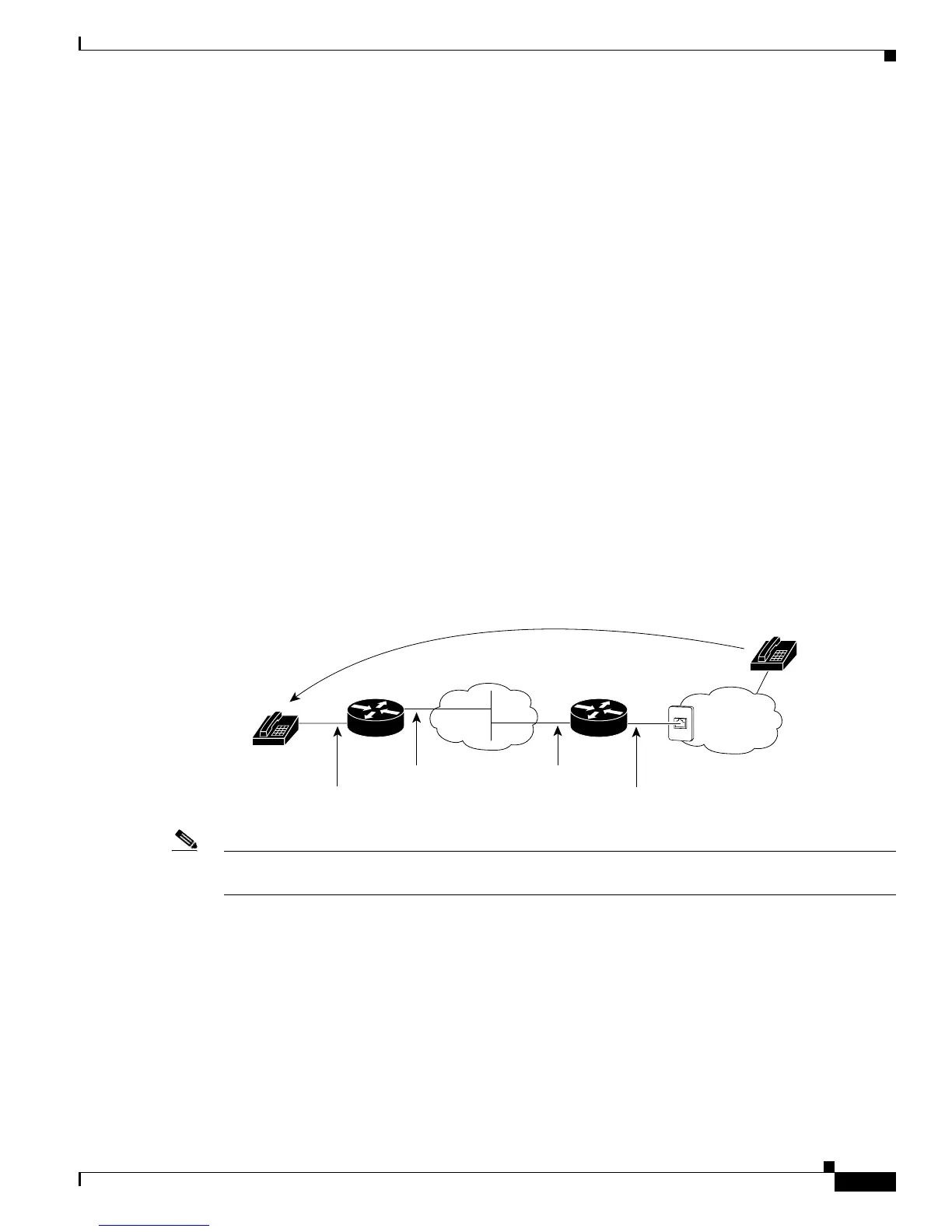

Figure 4-4 shows the topology of this connection example.
Figure 4-4 PSTN Gateway Access Using FXO Connection (PLAR Mode)
Note This example assumes that the company already has established a working IP connection between its
two remote offices.
IAD SJ Configuration
! Configure pots dial-peer 1
dial-peer voice 1 pots
destination-pattern +14081111111
port 2/0
! Configure voip dial-peer 2
dial-peer voice 2 voip
destination-pattern +9...........
session target ipv4:172.16.65.182
! Configure the serial interface
interface serial 0/0
95110
1(408) 555-4000
IAD SJ
San Jose
Salt Lake City
IAD SLC
FXO
172.16.1.123 172.16.65.182
PSTN use
r
Voice port
2/0
IP cloud
PLAR connection
Voice port
2/0
PSTN
cloud
IADIAD
