Chapter 5 Removal and Replacement Procedures
Installing the Thermistor Module on a Cisco 7609-S Router

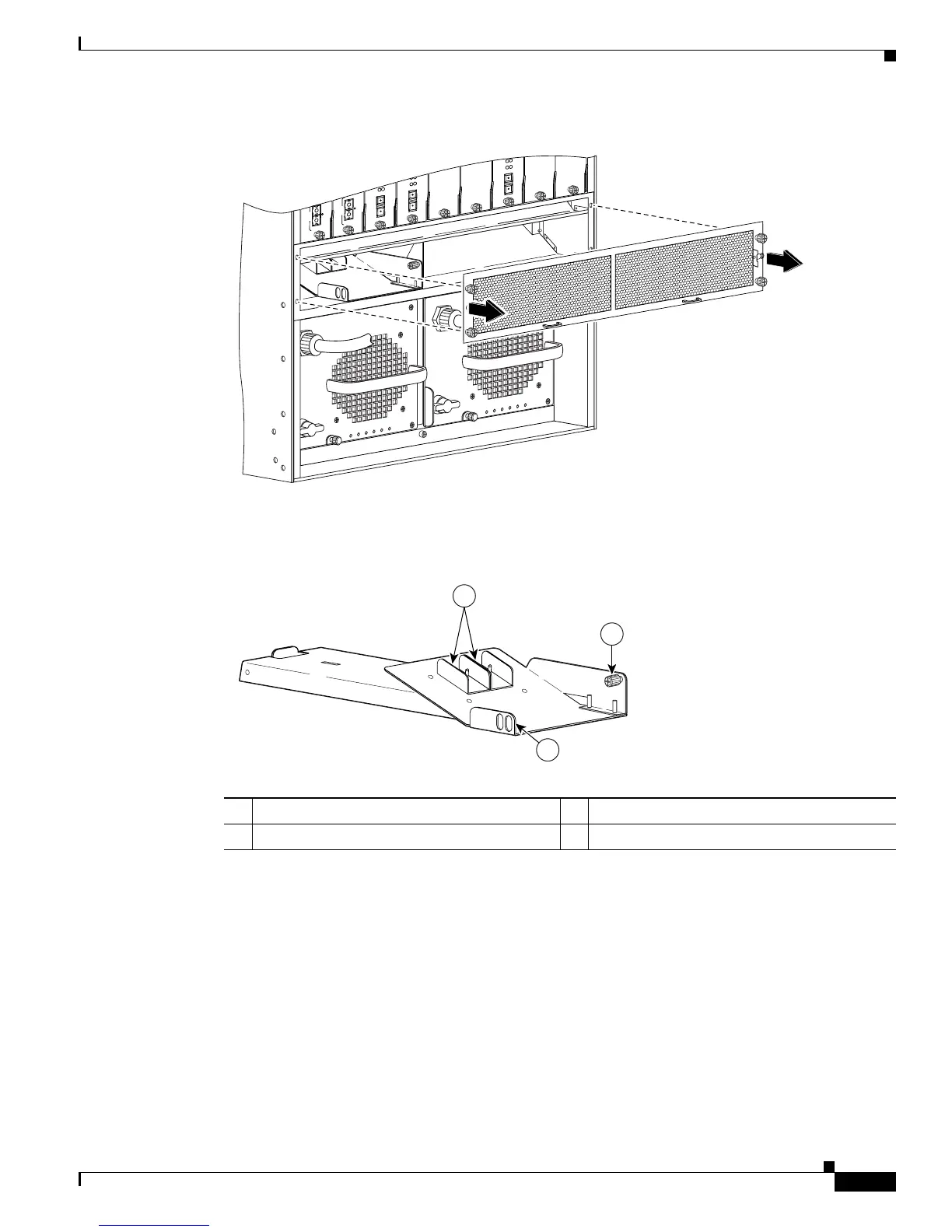

Figure 5-133 Removing the Intake Panel
Step 2 Unscrew the single captive screw that retains the thermistor module in the chassis. See Figure 5-134.
Figure 5-134 Thermistor Module
Step 3 Grasp the flange on the thermistor module (see Figure 5-134) and pull to remove the thermistor module.
See Figure 5-135.
191353
P
O
R
T
2
P
O
R
T
2
L
I
N
K
ACTIVE
TX
RX
TX
RX
ACTIVE
TX
RX
TX
RX
TX
RX
TX
RX
1 Thermistor slots 2 Captive screw
3 Flange
191354
2
3
1
