Appendix E Cisco 7606-S DC Power Supply Configurations
Cisco 7606-S V02 Configuration with Two 2700 W DC Power Supplies

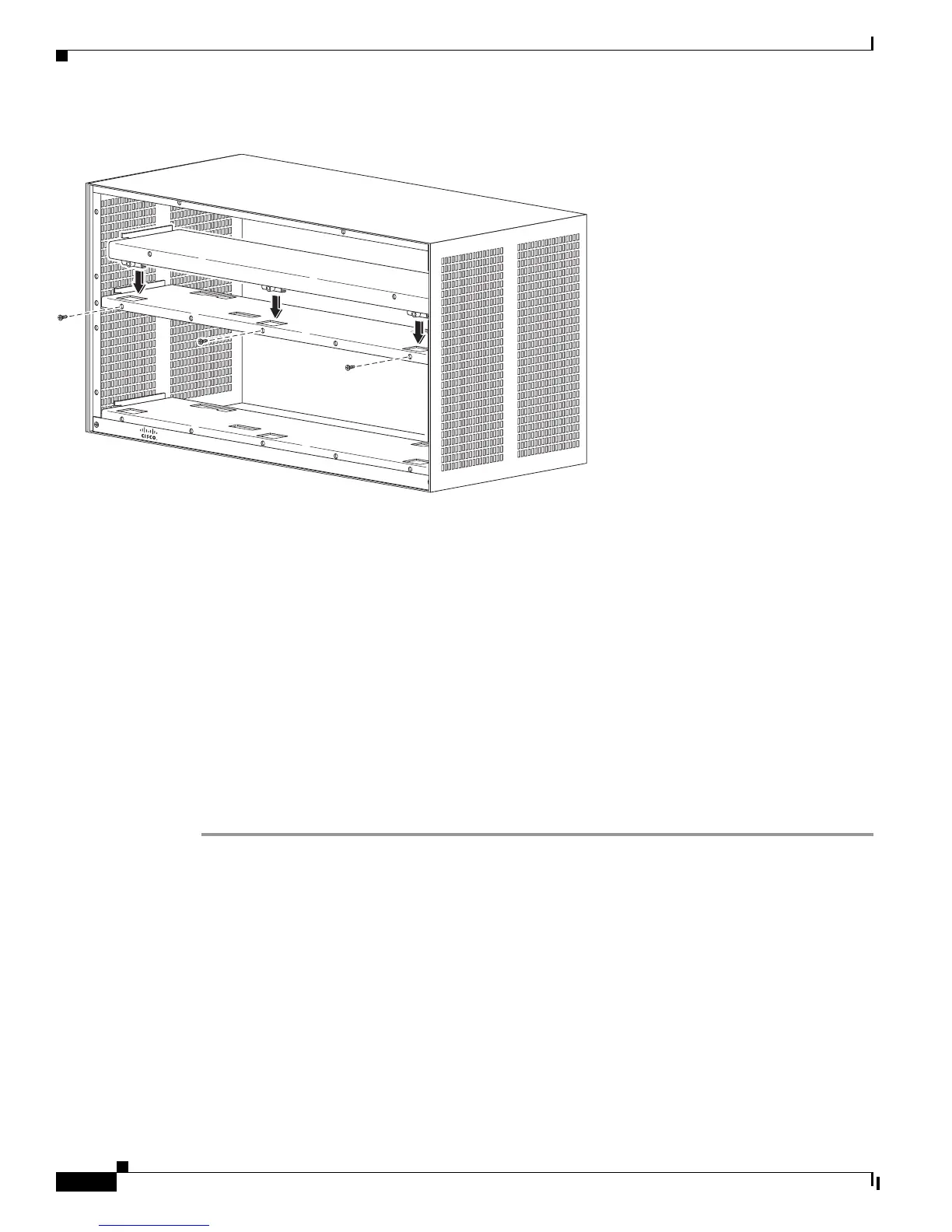

Figure E-3 Installing Booster Bracket
Cisco 7606-S V02 Configuration with Two 2700 W DC Power
Supplies
This configuration requires you to do nothing as this version of the Cisco 7606-S router already has the
slim brackets (Part Number 700- 26979-01) and the booster brackets (Part Number 800-31261-01).
Cisco 7606-S V02 Configuration with Two 4500 W DC Power
Supplies
This configuration requires you to remove both upper and lower booster brackets 800-31261-01.
Step 1 Remove the power supplies from the top slot and the lower slot as described in Removing
PWR-2700-DC Power Supply from a Cisco 7606-S Router, page 5-19.
Step 2 Remove three screws (Part Number 48-2454-01) securing the booster bracket (Part Number
800-31261-01) at the top slot. See
Figure E-4.
Step 3 Push the booster bracket (Part Number 800-31261-01) backward and then lift and remove it from the
chassis.
Step 4 Remove three screws (Part Number 48-2454-01) securing the booster bracket (Part Number
800-31261-01) at the bottom slot. See
Figure E-4.
Step 5 Push the booster bracket (Part Number 800-31261-01) backward and then lift and remove it from the
chassis.
Step 6 Install the 4500 W DC in the top slot as described in Installing a PWR-4500-DC Power Supply in a Cisco
7606-S Router, page 5-61.
