1-28
Cisco 7600 Series Router Installation Guide
OL-4503-26
Chapter 1 Product Overview
Cisco 7600 Series Router Components
Cisco 7609 Router and Cisco 7613 Router Power Supplies
Note For information on installing or replacing a power supply, see the “Removing and Replacing the Power
Supply” section on page 5-2.
The Cisco 7609 router and Cisco 7613 router use the following power supplies:
• 4000 W AC input (WS-CAC-4000W-US1)
• 2500 W DC input (WS-CDC-2500W)
• 4000 W DC input (PWR-4000-DC)
• 3000 W AC input (WS-CAC-3000W)
• 6000 W AC input (WS-CAC-6000W)
• 6000 W DC input (PWR-6000-DC)
The AC-input power supplies (see Figure 1-28, Figure 1-29, and Figure 1-30) have power cords that
allows you to connect each power supply to the site power source. You can connect the DC-input power
supplies (see
Figure 1-31 and Figure 1-32) to the power source with heavy gauge wiring connected to a
terminal block. The wire gauge size is determined by local electrical codes and restrictions.

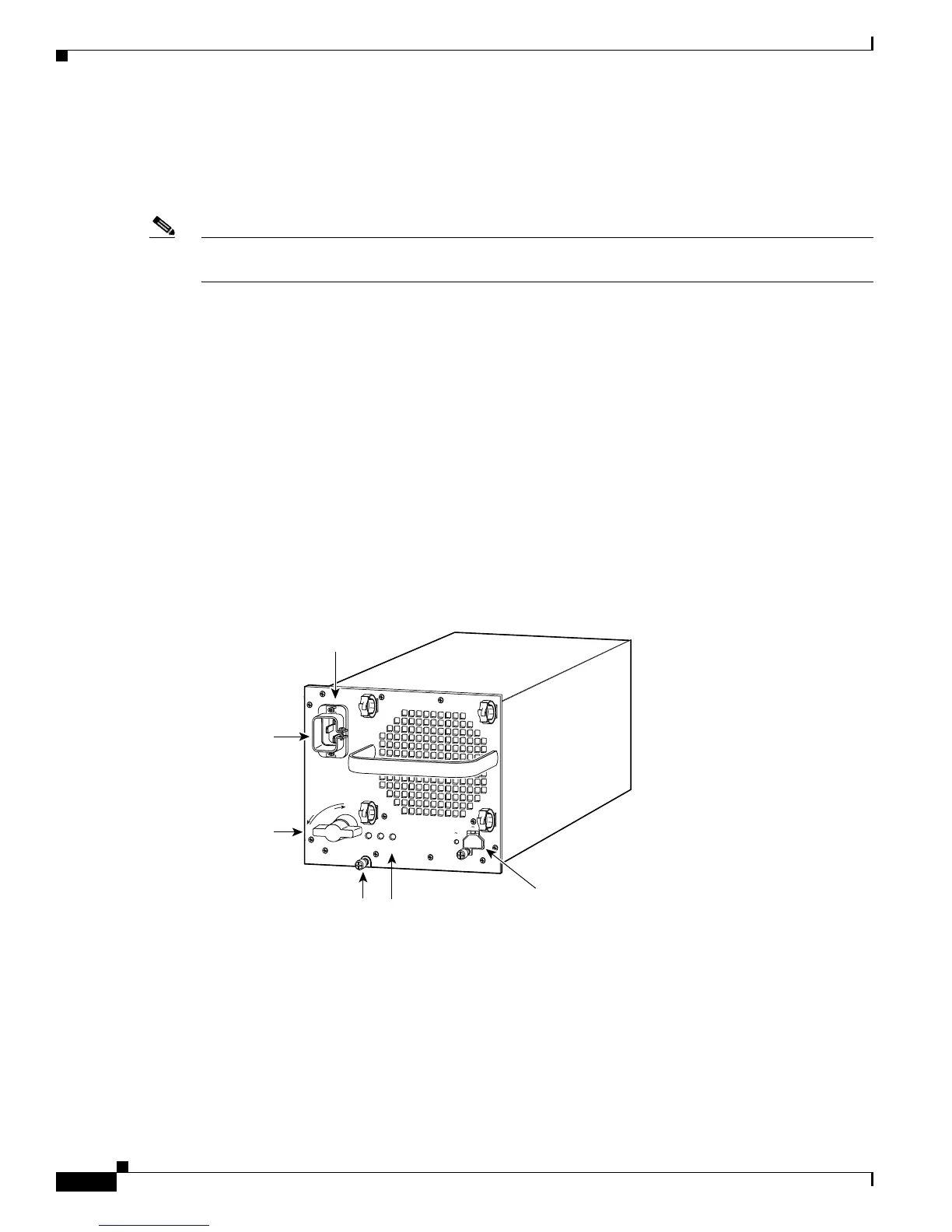

Figure 1-28 3000 W AC-Input Power Supply
INPUT
OK
FAN
OK
OUTPUT
FAI L
OUTPUT 42V /17A
42V /17A
OK
I
I
N
S
T
A
L
L
R
U
N
O
110-120V - 15A
200-240V - 15A
60/50HZ
+
105069
Power
switch
Cable
retention
device
AC power
connection
Captive installation
screw
Status LEDs (3)
External power
connector cover
