Chapter 3 Setting Up the Cisco Unified IP Phone
Installing the Cisco Unified IP Phone
3-14
Cisco Unified IP Phone 7906G and 7911G for Cisco Unified Communications Manager 6.0
OL11954-01

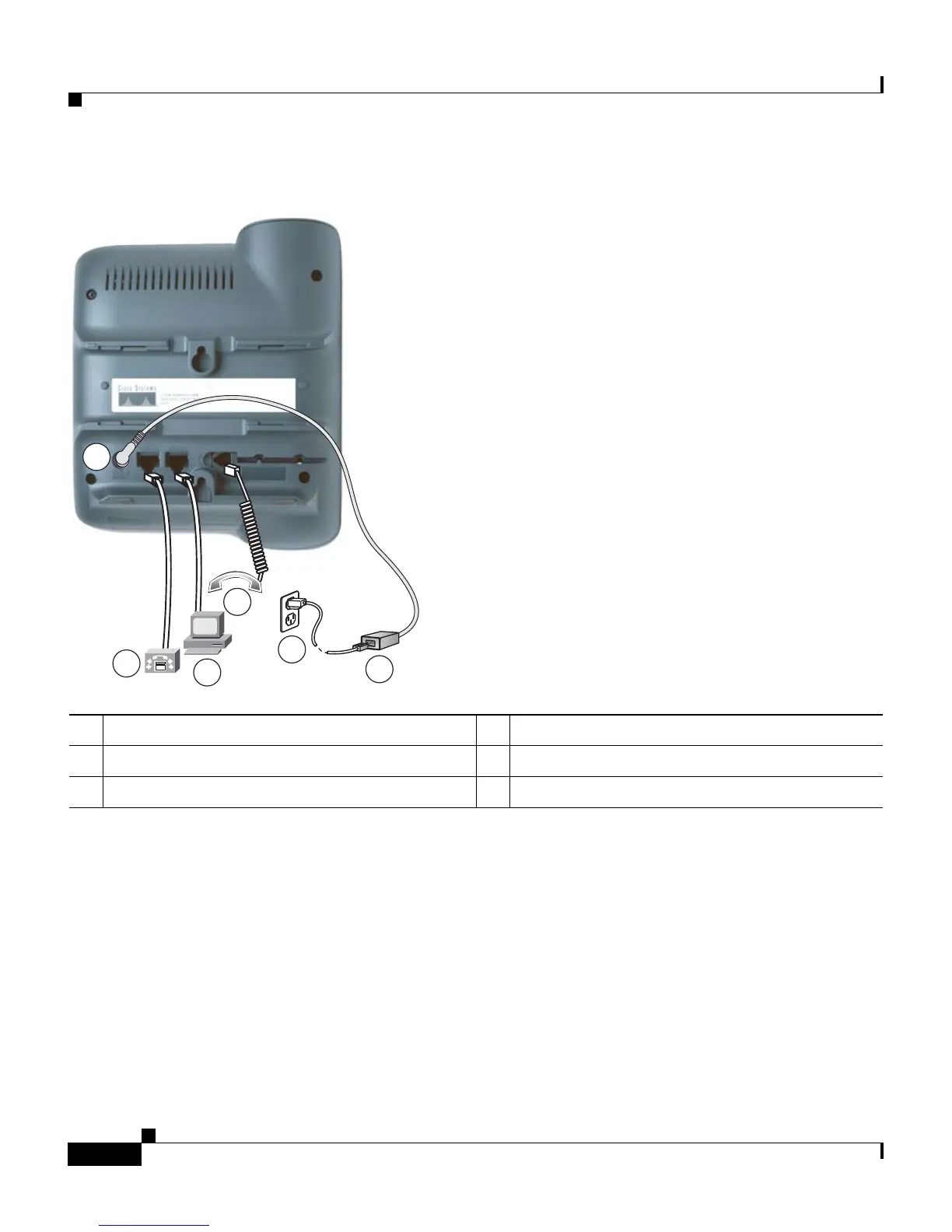

Figure 3-4 Cisco Unified IP Phone Model 7911G Cable Connections
Related Topics
• Before You Begin, page 3-2
• Mounting the Phone to a Wall, page 3-15
• Configuring Startup Network Settings, page 3-17
1 Network port (10/100 SW) 4 DC Adapter port (DC48V)
2 Access port (10/100 PC) 5 AC-to-DC power supply
3 Handset port 6 AC power cord
3
2
4
6
5
1
91638
