Connects the base station to the DCU.

When connecting the USB cable, firmly

press down on the ferrite bead to ensure it

seats correctly between the posts.

Attention

Mini USB port3

Two RJ11 microphone ports. An optional wired

microphone can be connected to each port.

Wired microphone ports4

Supports the connection of two base stations in Linked

Mode.

Linked Mode daisy chain port5

Connect mini-USB cable to DCU

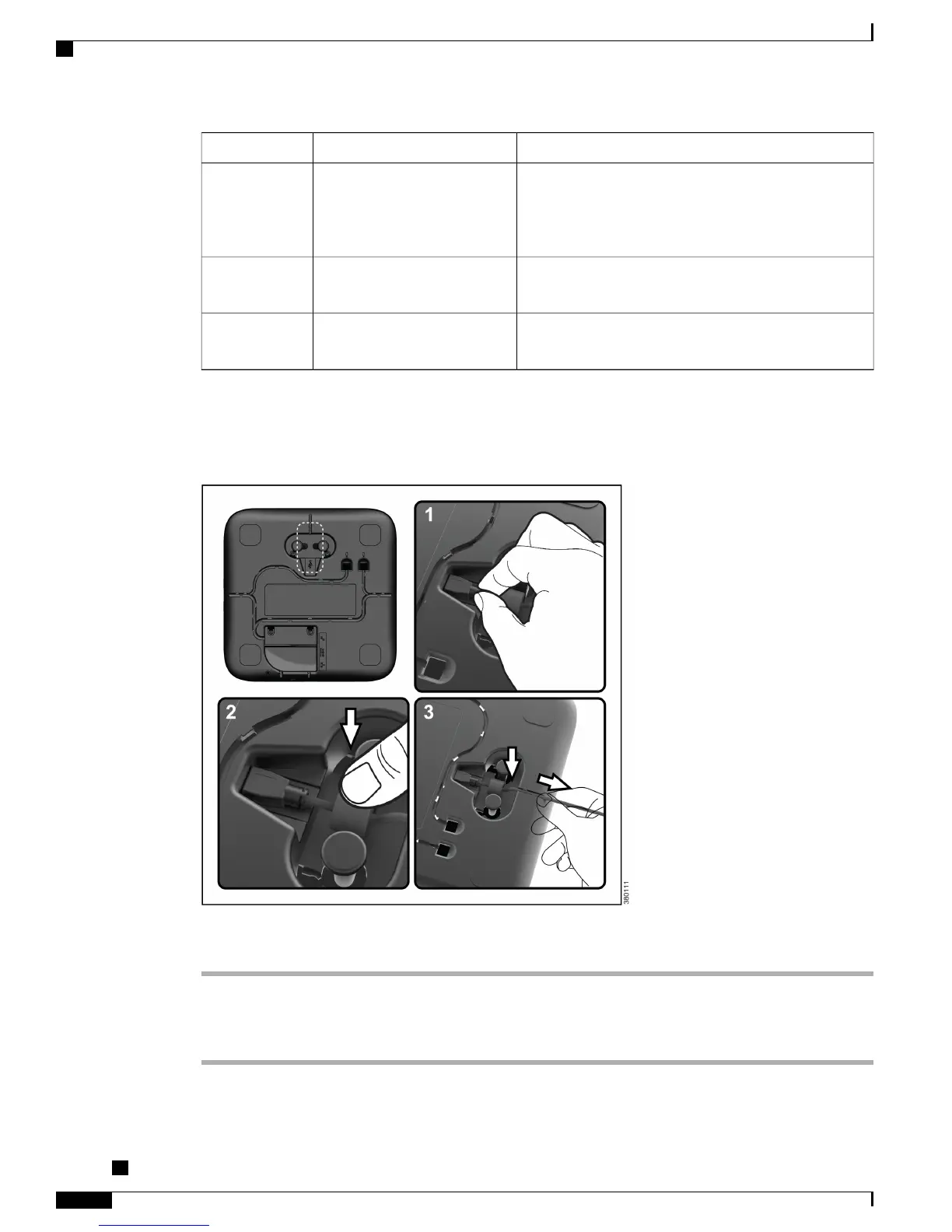

The following images show how to install the USB cable.

Procedure

Step 1

Insert the mini-USB connector into the port on the base of the phone.

Step 2

Seat the ferrite bead between the posts and press the bead down firmly.

Step 3

Thread the cable in the cable channel. Make sure that you leave some slack in the cable.

Cisco Unified IP Conference Phone 8831 Administration Guide for Cisco Unified Communications Manager

9.0

Cisco Unified IP Conference Phone 8831 installation

Phone connections
