Chapter 8 Replacing Cisco ASR 1000 Series Routers Field-Replaceable Units
Removing and Replacing the Cisco ASR 1000 Series RP1 Internal Hard Drive

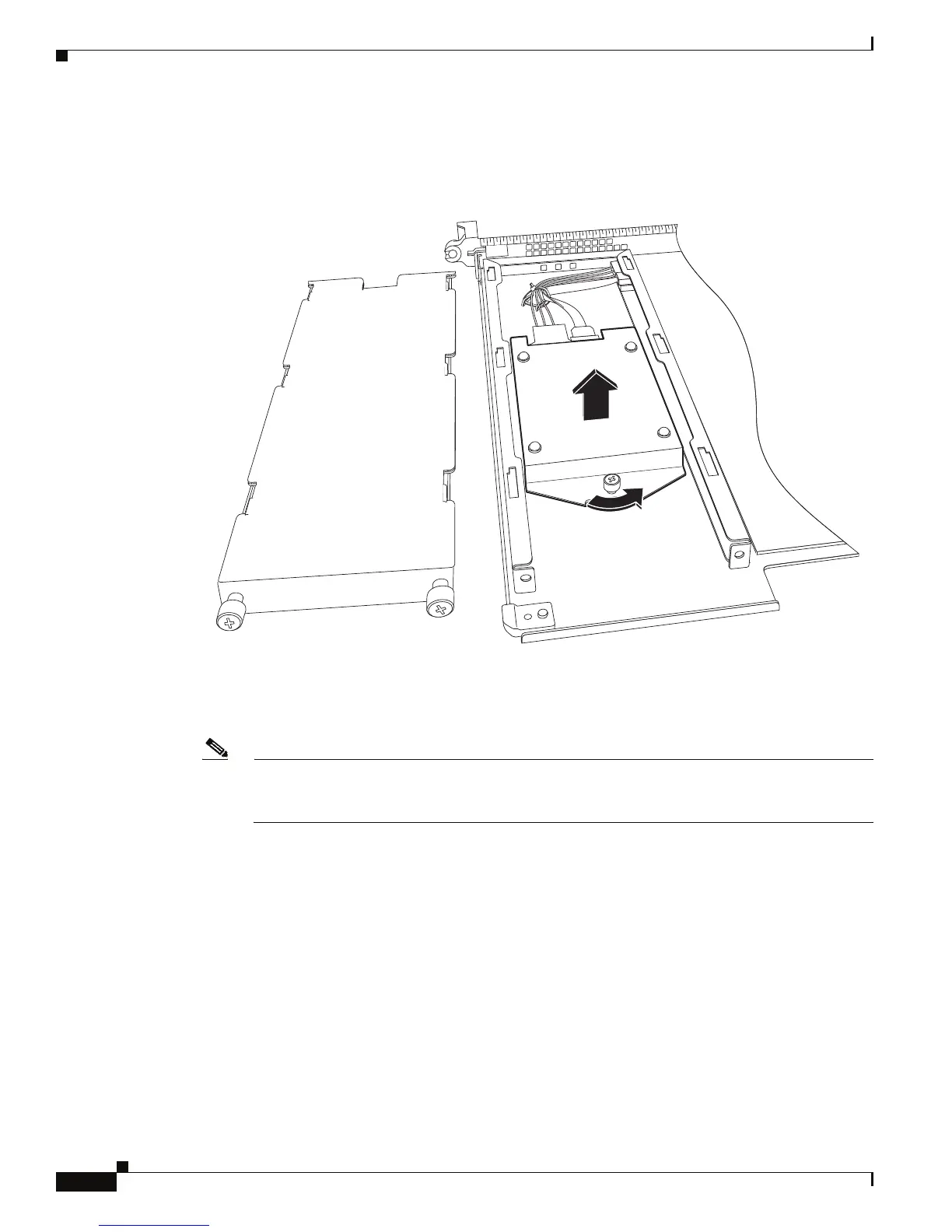

Figure 8-2 displays the Cisco ASR 1000 Series RP1 module with the hard drive cover removed.
Figure 8-2 Cisco ASR 1000 Series RP1 Module Hard Drive Cover and Screw Fastener
Step 6 Using a # 2 Phillips screwdriver or a flat head screwdriver, loosen the screw fasteners and remove the
cover as shown in
Figure 8-2.
Step 7 On the hard drive, unscrew the captive screw fastener.
Note Inspect the existing cables and replace them only if they are damaged. If you do not need to
replace them, leave the connection to the Cisco ASR 1000 Series Route Processor 1 in place and
only remove the connection to the internal hard drive.
Step 8 Carefully disconnect the cables at the rear of the hard drive. These cables are tie-wrapped in to prevent
them from disconnecting from the Cisco ASR 1000 Series RP1 itself. If the cables are not damaged,
leave the cables connected to the Cisco ASR 1000 Series Route Processor 1 with the tie wrap in place.
Remove the old hard drive.
1
2
280151
