Cisco ASR 1000 Series Installation And Configuration Guide

8-10
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation and Initial Configuration Guide
OL-13208-03
Chapter 8 Replacing Cisco ASR 1000 Series Routers Field-Replaceable Units
Removing and Replacing the Cisco ASR 1000 Series RP1 DIMM Memory Module
To replace or upgrade the Cisco ASR 1000 Series DIMM memory spare, follow these steps:
Step 1 Attach an ESD-preventative wrist strap between you and an unpainted router surface.
Step 2 Locate the DIMM on the system board.
Note The DIMMs shown in Figures 8-6 and 8-7 are representative and might not look exactly like the
DIMMs used on the RP; but the procedure is the same.
Step 3 Press both spring latches outward to release the DIMM.

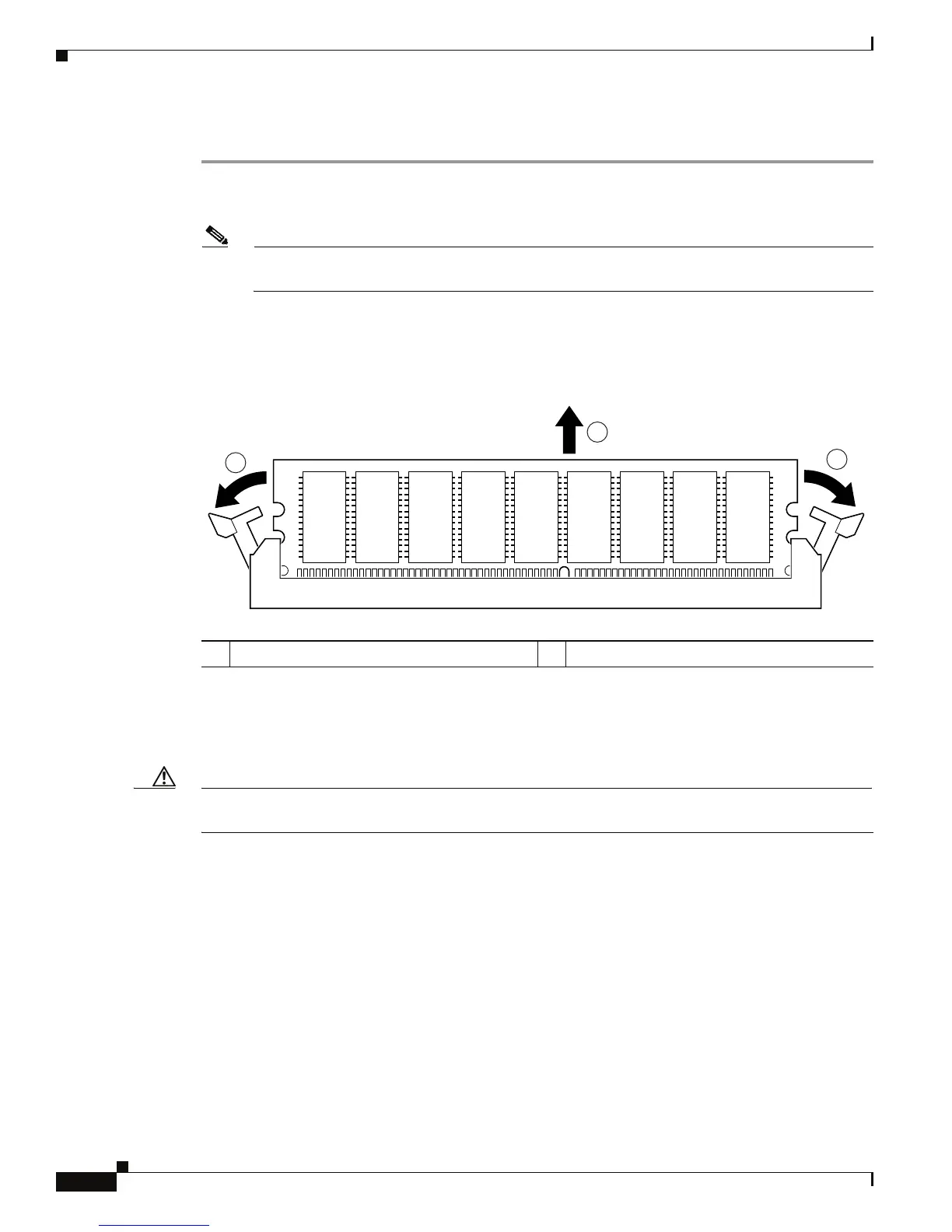

Figure 8-6 Cisco ASR 1000 Series RP1 DIMM Module Spring Latches
Step 4 Pull the latches away from the DIMM on both edges. This lifts the DIMM slightly. Gently lift the DIMM
free from the DIMM connector, taking care not to touch the pins that insert into the socket.
Step 5 Place the DIMM in an anti-static bag to protect the DIMM from ESD damage.
Caution Forcing the DIMM into the socket can damage the DIMM. Use the notches on the DIMM to align the
DIMM in the DIMM socket before inserting it (see Figure 8-7).
1 Pull spring clips outward. 2 Pull DIMM out.
121392
1
1
2

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
