Cisco Catalyst 2960-XR Configuration Guide

EtherChannel on Switches
You can create an EtherChannel on a switch, on a single switch in the stack, or on multiple switches in the
stack (known as cross-stack EtherChannel).

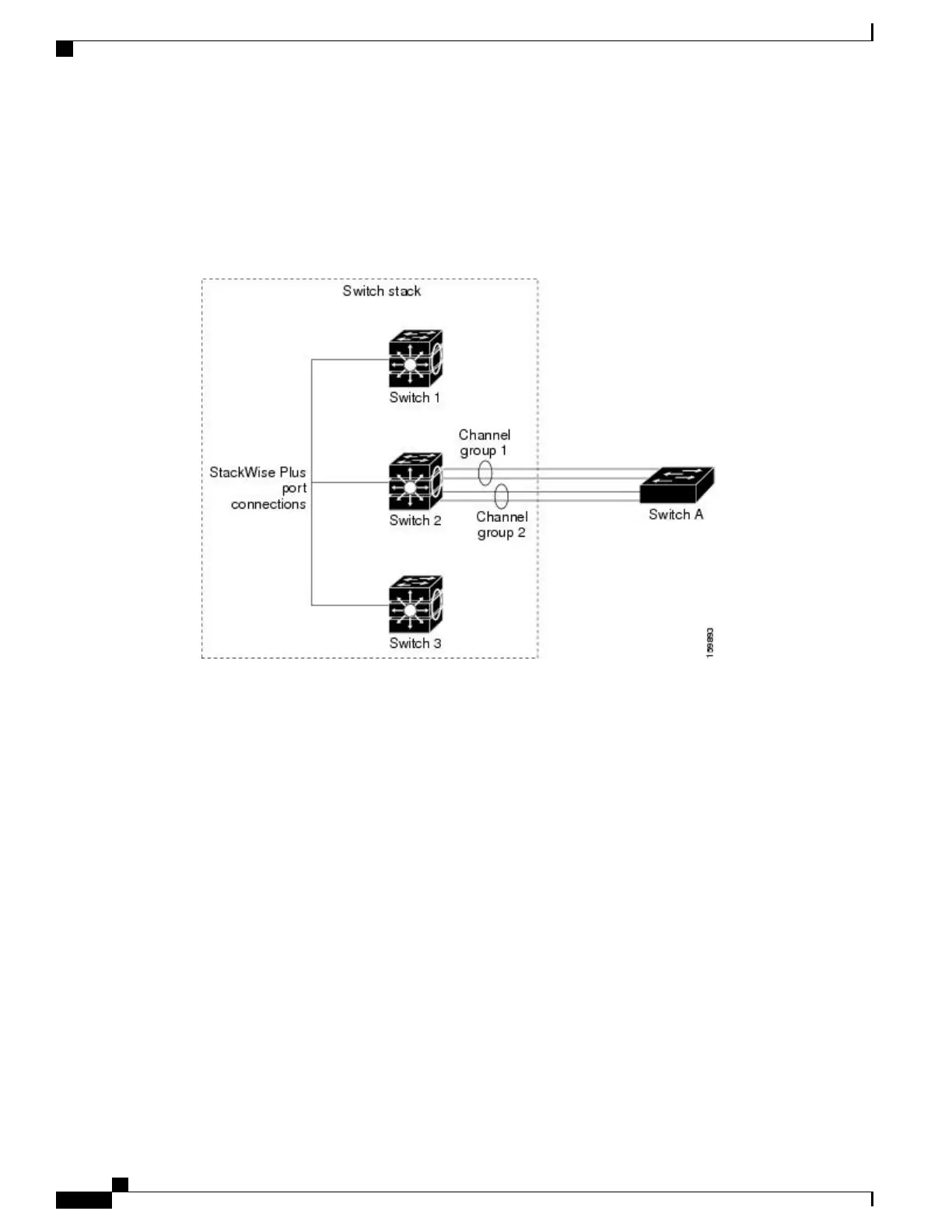

Figure 20: Single-Switch EtherChannel
Figure 21: Cross-Stack EtherChannel
Catalyst 2960-XR Switch Layer 2 Configuration Guide, Cisco IOS Release 15.0(2)EX1
108 OL-29424-01
Configuring EtherChannels
EtherChannel Overview

Cisco Catalyst 2960-XR Specifications

General

Stacking Bandwidth	80 Gbps
Layer Support	Layer 2 and Layer 3
Jumbo Frame Support	9198 bytes
RAM	512 MB
Input Voltage	100-240V AC
Model	Catalyst 2960-XR
Uplink Interfaces	4 x 1G SFP or 2 x 10G SFP+
Downlink Interfaces	24 or 48 x Gigabit Ethernet ports
Power Supply	Internal
MAC Address Table Size	16, 000 entries
PoE	Available on PoE models
Weight	4.5 kg
Features	energy efficiency
Stacking	Up to 8 switches
Operating Temperature	0 to 45°C
