Chapter 4 Removing and Replacing FRUs
Removing and Replacing the Power Supply

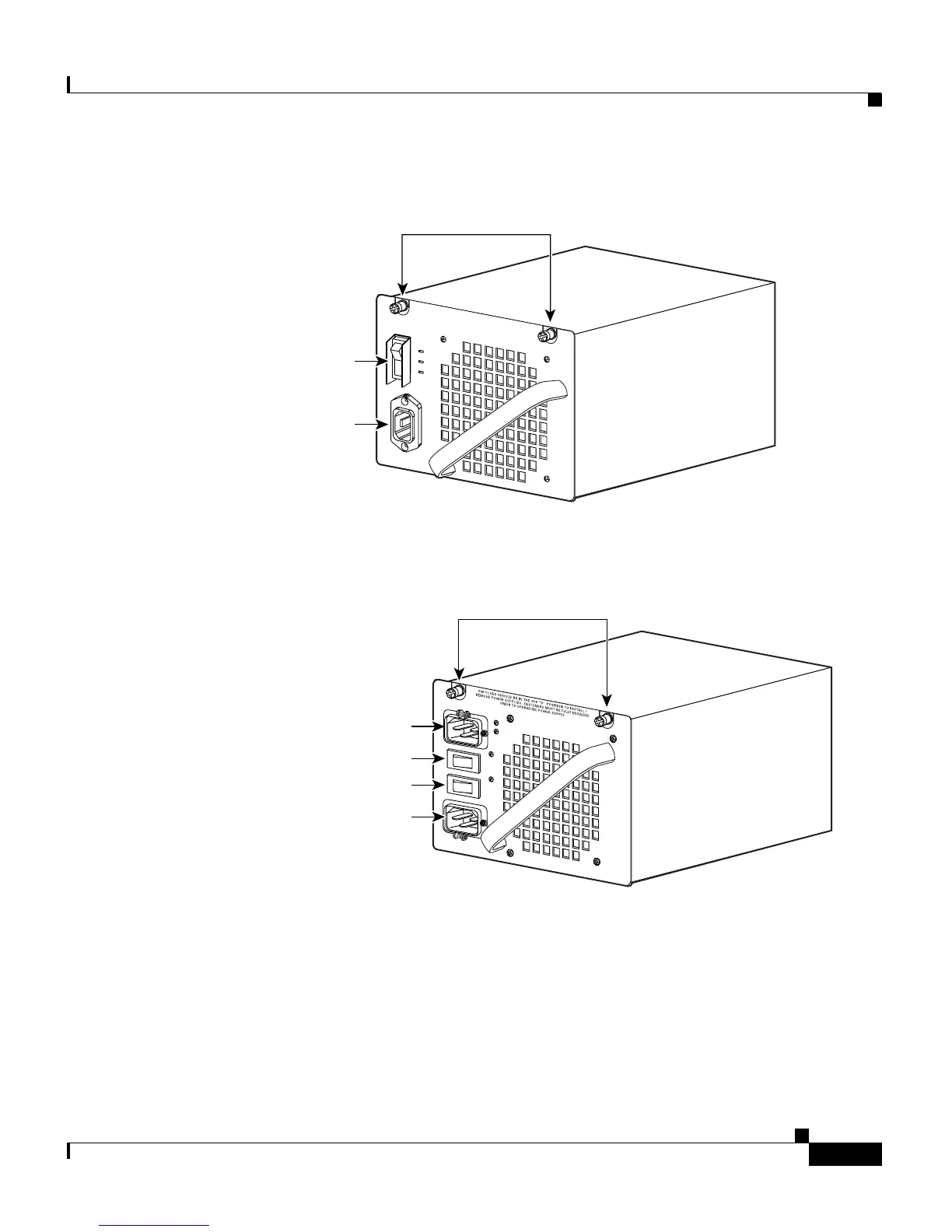

Figure 4-1 AC-Input Power Supply
Figure 4-2 4200 W Dual-Input AC Power Supply
Captive screws
Power switch
AC receptacle
79136
100-120V-
12A
50/60Hz
Captive screws
AC input 2 receptacle
130106
AC input 1 receptacle
AC input 1 on switch
AC input 2 on switch
100-120V-
12A
50/60Hz
INPUT 1
OK
INPUT 2
OK
POE ENABLED
4600ACV
OUTP{UT FAI:
FAN OK
