Cisco Catalyst 4500 Series Installation Guide

Chapter 1 Product Overview
System Architecture
1-48
Catalyst 4500 Series Switches Installation Guide
78-14409-08
Catalyst 4503 with a single 15A circuit. Likewise, it is possible to deploy a fully
populated Cisco Catalyst 4510R with two 20A and one 15A circuits rather than a
single 60A connection, which often requires rack rewiring.
Management Flow

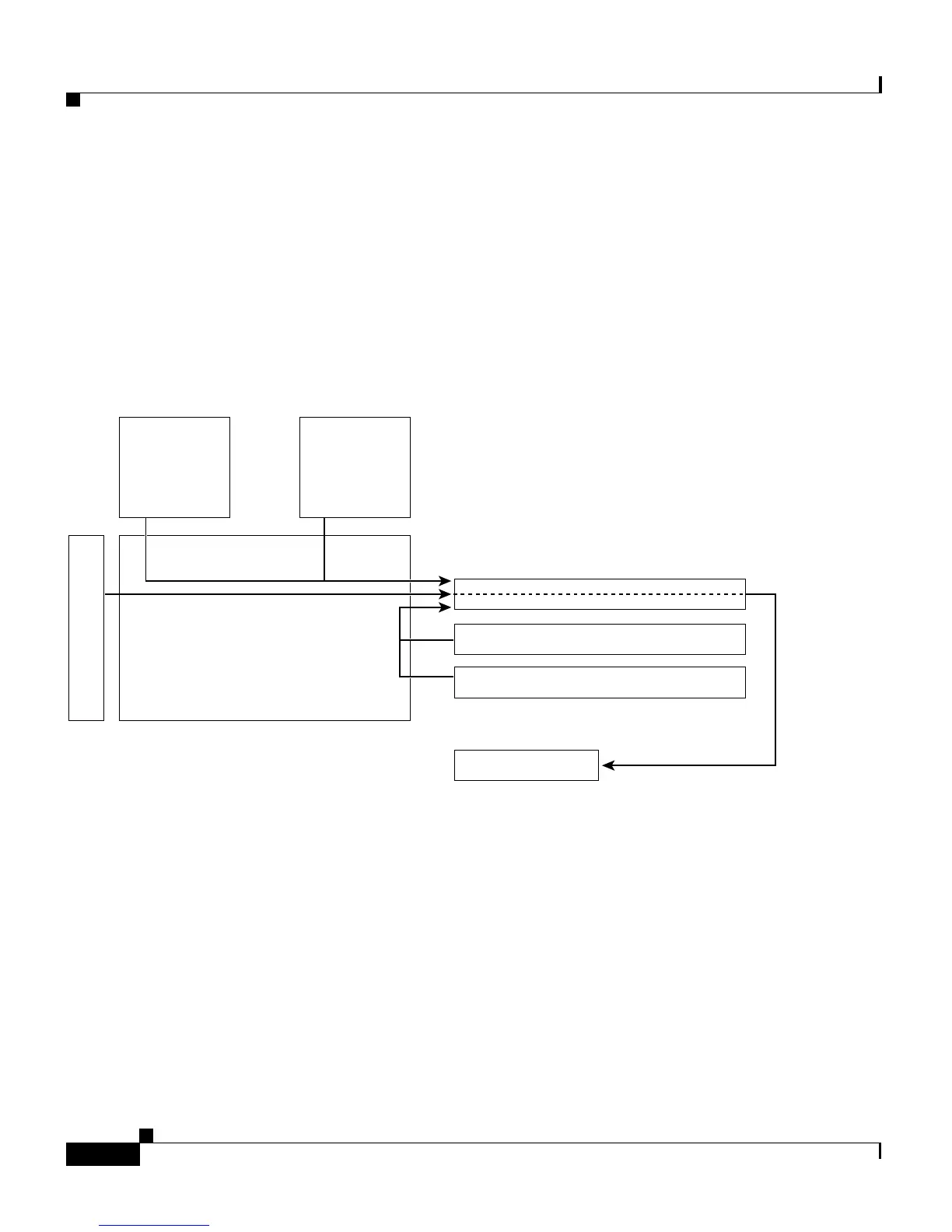

Figure 1-22 shows management and status information flow through the system.
Figure 1-22 Management Flow
Each system component has an EEPROM that identifies it to the supervisor
engine over a serial connection on the backplane, which also passes along
information like temperature, fan speed, power draw per slot and port, and port
activity. LED status information is also sent to the supervisor engine, which
makes it available to an administrator through a terminal connection or
management software.
All Catalyst 4500 series switches support:
• Hardware-based multicast-Protocol Independent Multicast (PIM).
• Internet Group Management Protocol (IGMP).
Backplane
PS1 PS2
Fan
tray
120920
Supervisor engine
Switching module
Switching module
Terminal

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
