Cisco Catalyst 4500 Series Installation Guide

Chapter 1 Product Overview
Power Supplies
1-34
Catalyst 4500 Series Switches Installation Guide
78-14409-08
Power Supplies
Note For detailed specifications on all Catalyst 4500 series power supplies, refer to the
“Catalyst 4500 Series Power Supplies” section on page A-8.
A Catalyst 4500 series switch can use a 1000 W, 1300 W, 1400 W, 2800 W (see
Figure 1-17), or 4200 W (with two inputs, see Figure 1-18) AC-input power
supply , a 1400 W DC-input power supply with integrated PEM (see Figure 1-19),
or a 1400 W DC multiple-input power supply (see Figure 1-20). The power
supplies are hot-swappable. If you have power supplies of different types installed
in the two bays, only one will be active and some power features will not be
available. The power supply in the left bay is PS1, the one in the right bay is PS2.
The AC-input power supply has a power cord that connects each power supply to
the site power source. The DC-input power supply is equipped with a input
terminal block that is directly connected to the site power wiring.
Each power supply has an ON/OFF switch that supplies power to the switch. For
information on removing and replacing power supplies, see the
“Removing and
Replacing the Power Supply” section on page 4-2.

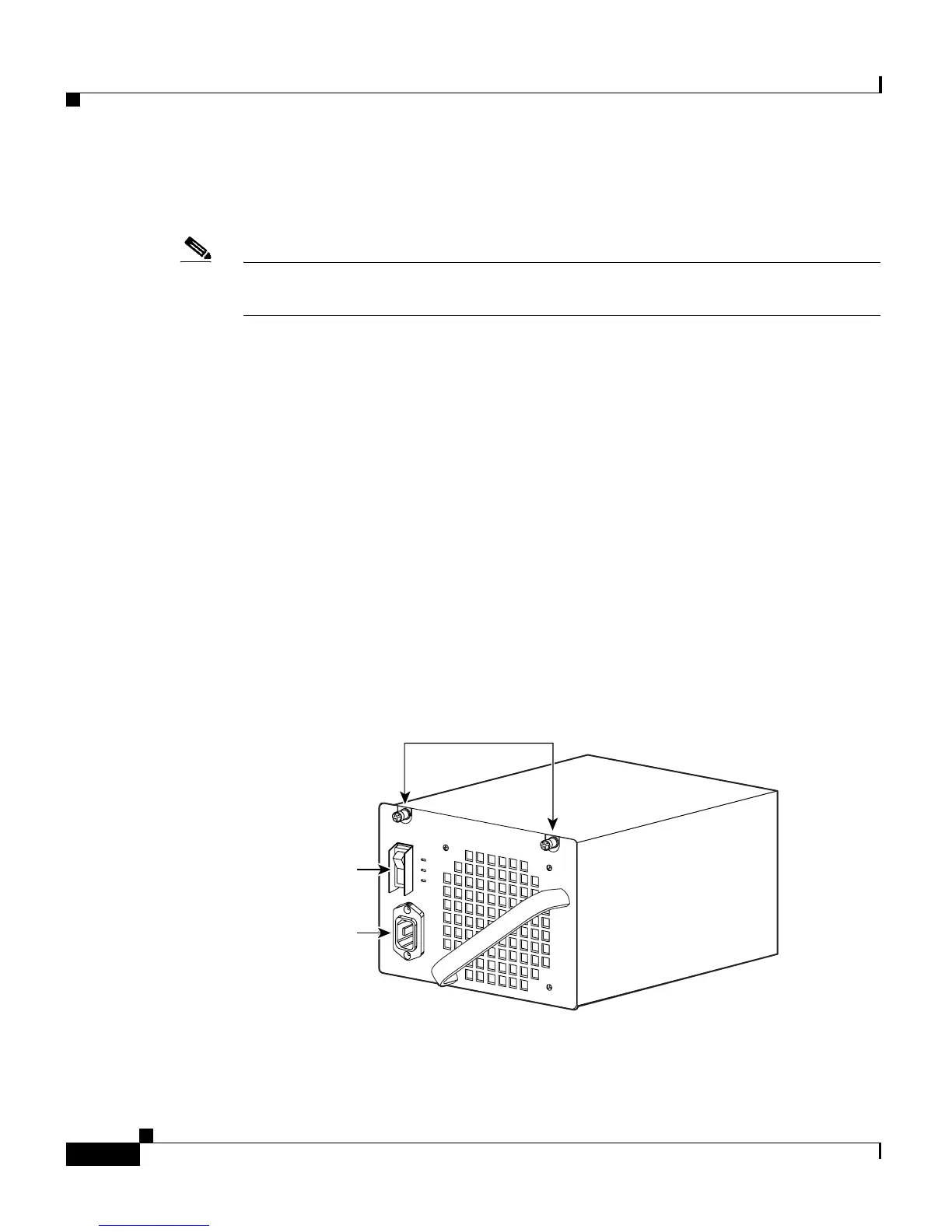

Figure 1-17 AC-Input Power Supply (All Except 4200 W)
Captive screws
Power switch
AC receptacle
79136

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
