Cisco Catalyst 4500 Series Installation Guide

Chapter 5 Troubleshooting
Troubleshooting Switching Modules
5-10
Catalyst 4500 Series Switches Installation Guide
78-14409-08
• The switch powers down and stays down for a few minutes to a few days for
no clear reason.
• The output-fail LED on the power supplies are red and no power is delivered
to the chassis. The other LEDs on the power supply are green.
• The Status LEDs on the switching modules and the supervisor engine are
flashing green.
• CPU Utilization LEDs are flashing green or off.
If you observe these conditions, contact the Cisco TAC for assistance in ordering
replacement redundancy modules and a clock.
Troubleshooting Switching Modules
Each switching module has one LED labeled STATUS that provides information
about the module and one numbered LED labeled LINK for each port on the
module.
Figure 5-1 shows the Gigabit Ethernet port and status LEDs. Figure 5-2
shows the 10/100BASE-T port LEDs. Table 5-1 describes the switching module
LEDs and their expected behavior.

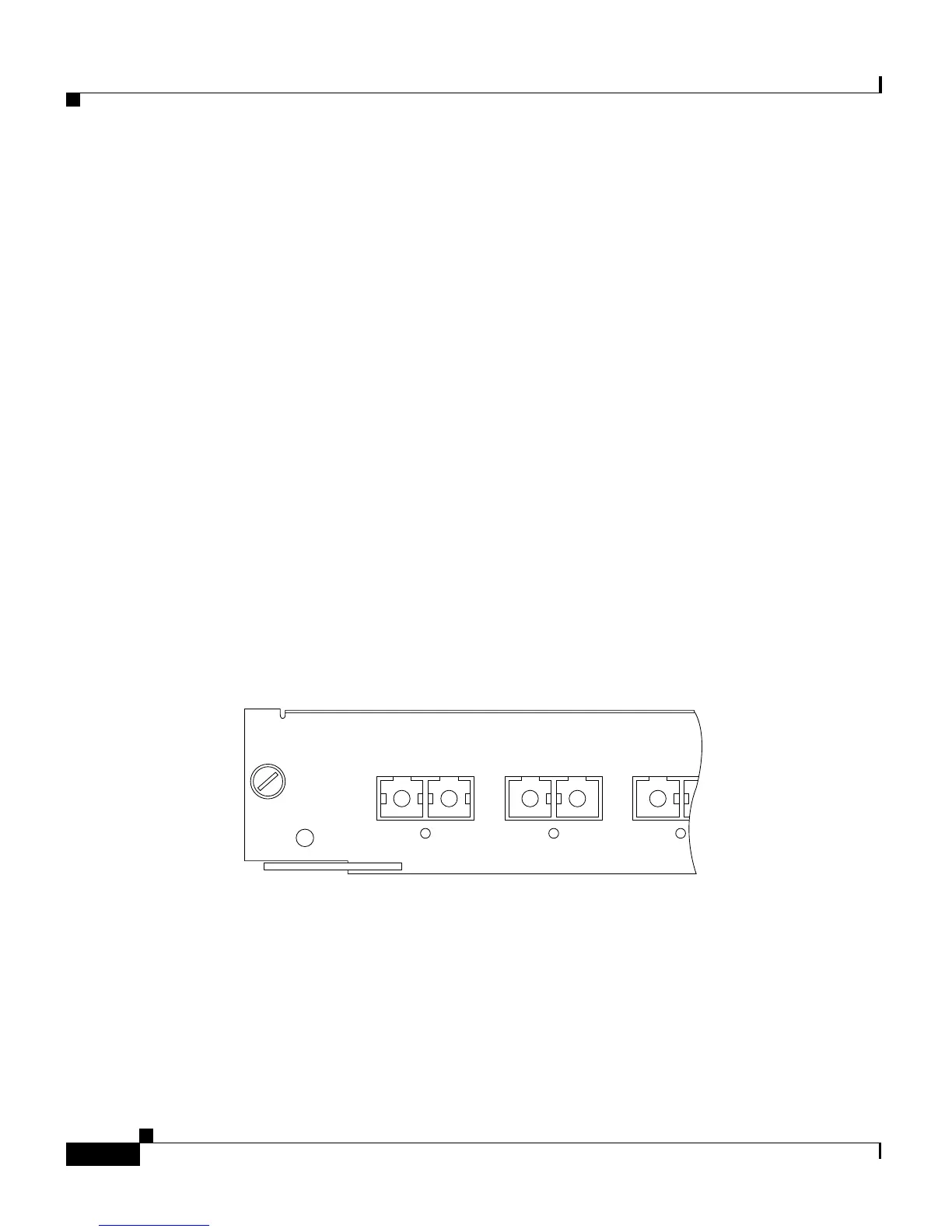

Figure 5-1 Gigabit Ethernet Port and Status LEDs
1
26854
1000BASE-X SWITCHING MODULE
STATUS
2 3
WS-X4306-GB GIGABIT ETHERNET

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
