Cisco Catalyst 4500 Series Installation Guide

Chapter 1 Product Overview
Supervisor Engines
1-26
Catalyst 4500 Series Switches Installation Guide
78-14409-08

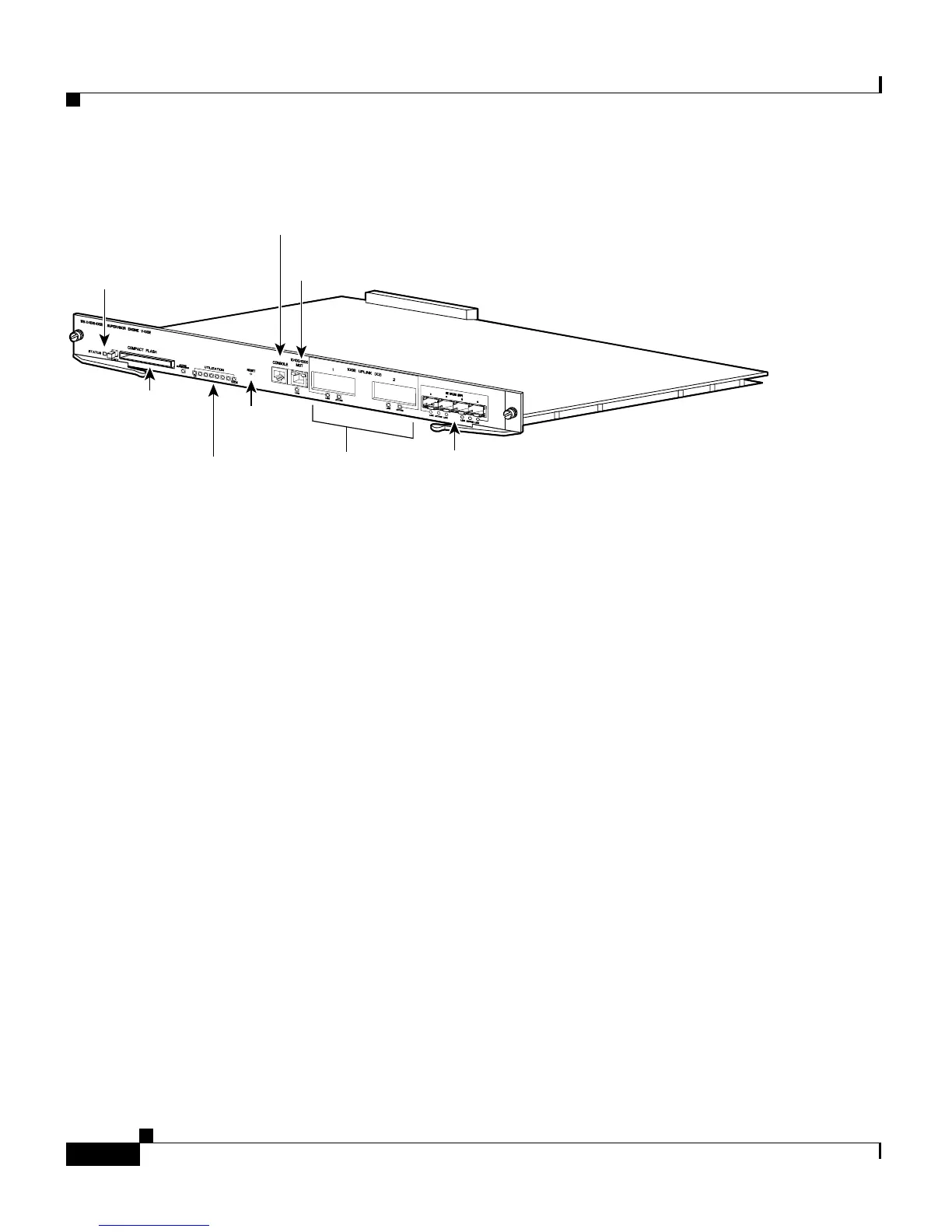

Figure 1-12 Supervisor Engine V-10GE (WS-X4516-10GE)
For information about the connectors, LEDs, and switches located on the front
panel of the supervisor engine, see these sections:
• LEDs, page 1-27
• Gigabit Ethernet Uplink Ports, page 1-27
• Ethernet Management Port, page 1-29
• CONSOLE Port, page 1-29
• RESET Button, page 1-29
• CompactFlash Port, page 1-29
120474
STATUS LED
RESET
button
10 GE uplink
ports
Gigabit SFP
ports
Switch load
indicators
CONSOLE port
Ethernet
management port
Compact
Flash
port

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
