Chapter 1 Product Overview
Supervisor Engines

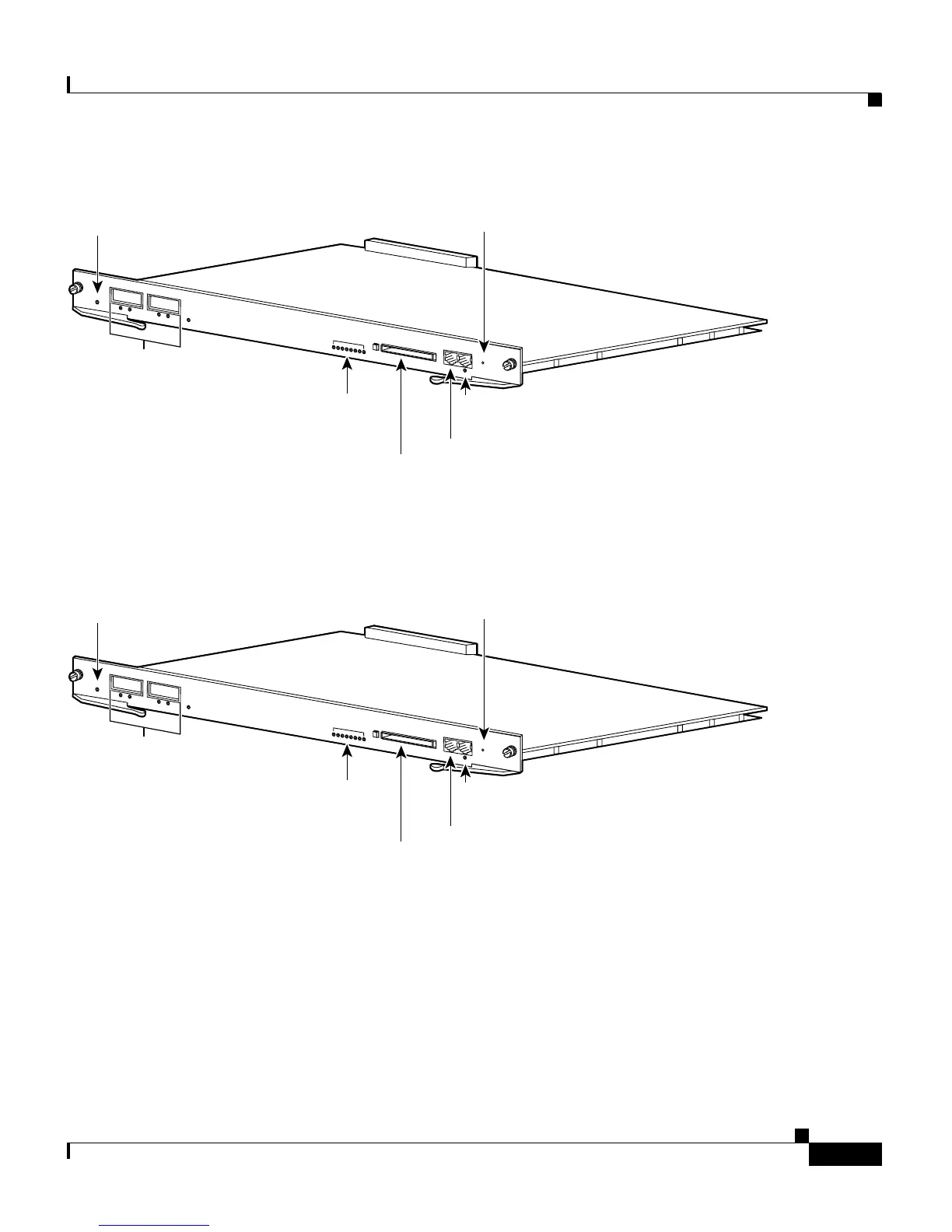

Figure 1-10 Supervisor Engine IV (WS-X4515)
Figure 1-11 Supervisor Engine V (WS-X4516)
UPLINK 1
U
PLINK 2
ACTIVE
LINE
ACTIVE
LINE
ACTIVE
RESET
UTILIZATION
STATUS
WS-X4515 SUPERVISOR ENGINE IV
1%
100%
CONSO
LE
LINK
EJECT
FLASH
10/100
M
GT
77509
STATUS LED
RESET button
Gigabit uplink
ports
Switch load
indicators
CONSOLE
port
Ethernet
management port
Compact
Flash
port
UPLINK 1
UPLINK 2
ACTIVE
LINE
ACTIVE
LINE
ACTIVE
RESET
UTILIZATION
STATUS
WS-X4515 SUPERVISOR ENGINE IV
1%
100%
CONSOLE
LINK
EJECT
FLASH
10/100
MGT
77509
STATUS LED
RESET button
Gigabit uplink
ports
Switch load
indicators
CONSOLE
port
Ethernet
management port
Compact
Flash
port

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
