Cisco Catalyst 4500 Series Installation Guide

Chapter 1 Product Overview
Supervisor Engines
1-22
Catalyst 4500 Series Switches Installation Guide
78-14409-08
The Supervisor Engine IV and Supervisor Engine V support the Catalyst 4500
Series NetFlow Services Card (WS-F4531). The Supervisor Engine V-10GE
supports NetFlow services without a NetFlow Services Card.
To install the supervisor engine, refer to the procedure in the Catalyst 4500 Series
Module Installation Guide. The various supervisor engine models are shown in
Figure 1-5 to Figure 1-12.

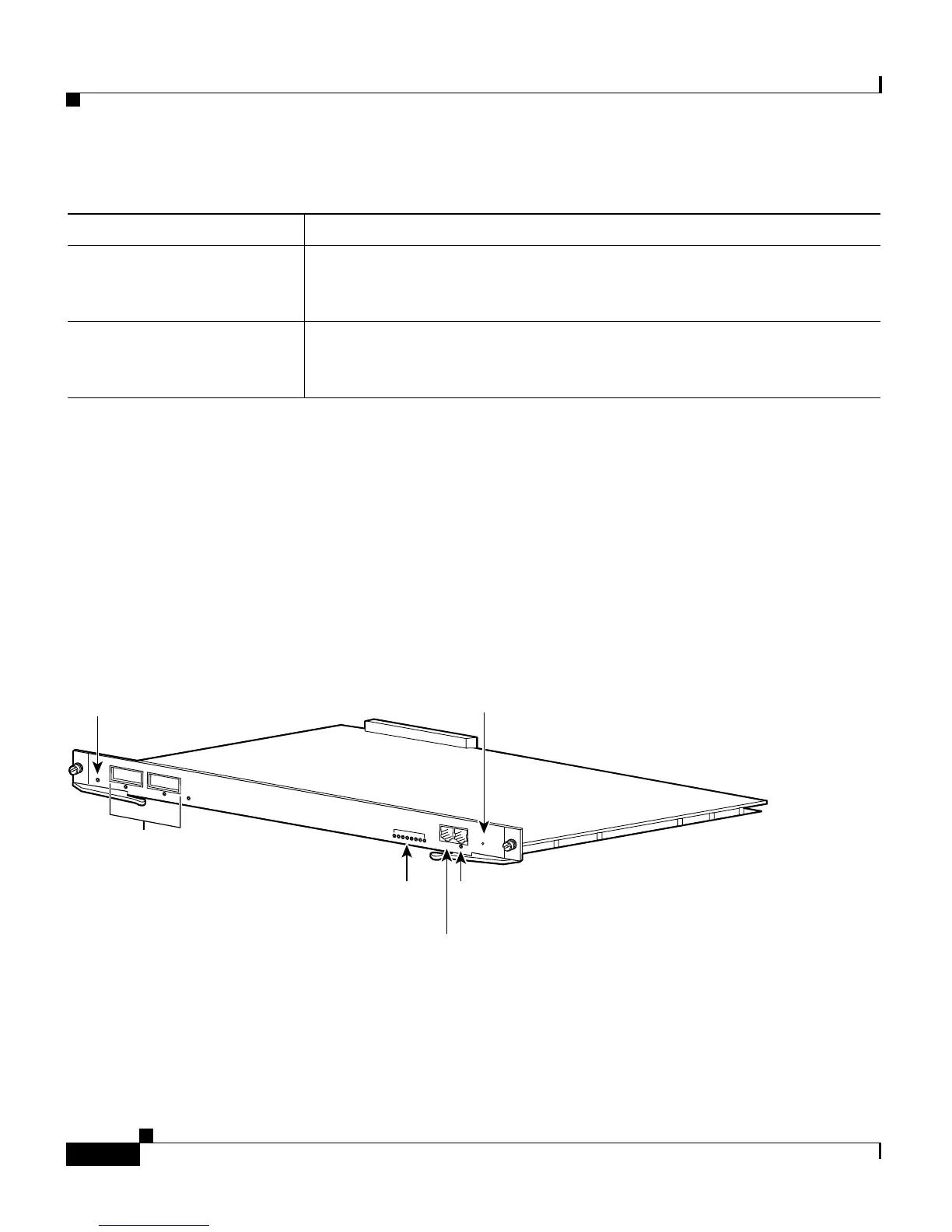

Figure 1-5 Supervisor Engine II (WS-X4013)
Supervisor Engine V 96-Gbps, 72 Mpps (with Catalyst 4510R, 68 Gbps, 51 Mpps with
Catalyst 4507R, 64
Gbps, 48 Mpps with Catalyst 4506, 28 Gbps, 21
Mpps with Catalyst 4503) full-duplex Gigabit Ethernet switching engine
Supervisor Engine V-10GE 136-Gbps, 101 Mpps (with Catalyst 4510R, 68 Gbps, 51 Mpps with
Catalyst 4507R, 64
Gbps, 48 Mpps with Catalyst 4506, 28 Gbps, 21
Mpps with Catalyst 4503) full-duplex Gigabit Ethernet switching engine
1. PAgP = Port Aggregation Protocol
2. SPAN = switched port analyzer
Table 1-5 Supervisor Engine Features (continued)
Feature Description
UPLINK
UPLINK
2
UPLINKS ENABLED
CONSOLE
RESET
10/100
BASE-TX
1
STATUS
1%
100%
78478
STATUS LED
RESET button
Gigabit uplink
ports
Switch load
indicators
CONSOLE port
(RJ-45)
Ethernet
management port

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
