Cisco Catalyst 4500 Series Installation Guide

Chapter 1 Product Overview
System Architecture
1-50
Catalyst 4500 Series Switches Installation Guide
78-14409-08

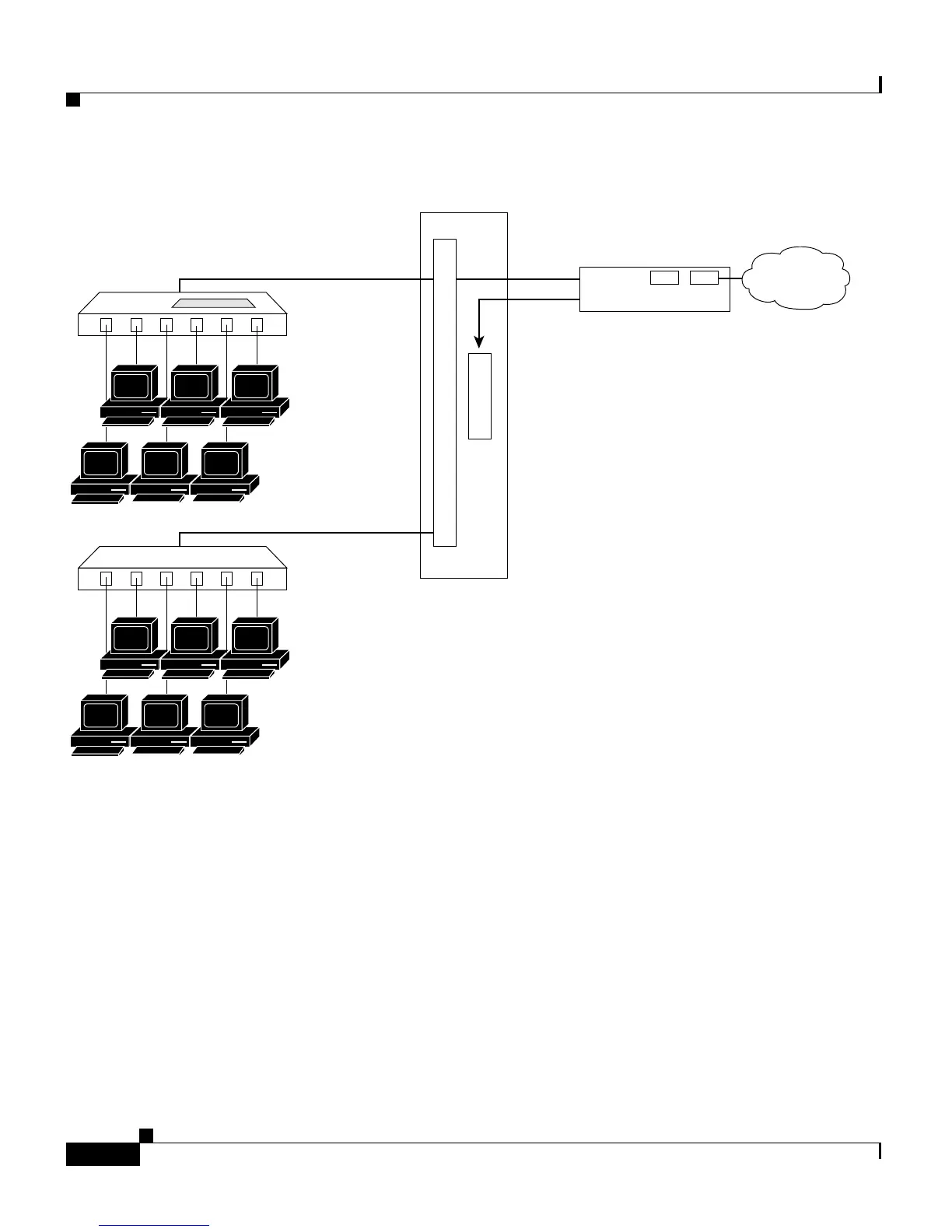

Figure 1-23 Switching Traffic Flow
Frames flow into the switch through interfaces on the switching modules. Each
switching module connects to a mux/buffer on the backplane that supports a
connection of up to 6 Gbps up (Tx) to the supervisor engine and 6 Gbps from (Rx)
the supervisor engine. When a frame reaches the supervisor engine, it is examined
and either sent out of an interface in one of the other slots, or out of the uplink on
the supervisor engine.
Over-subscription
Switching modules that have 24 or 48 Gigabit Ethernet (1000BASE-T) ports
over-subscribe on a Catalyst 4500 switch by grouping the ports with an additional
mux/buffer on the switching module, which creates a single, nonblocking,
full-duplex Gigabit Ethernet connection to the internal switch fabric. For each
group of ports, frames received are buffered and sent to the common Gigabit
MUX
MUX
Clock
120921
2 Gigabit Ethernet
uplinks
24 Gbps
6 Gbps up / 6 Gbps down
6 Gbps up / 6 Gbps down
1000BASE-T 1:1
1000BASE-T 8:1
(oversubscribed)
(Supervisor Engine)

Cisco Catalyst 4500 Series Specifications

General

Series	Catalyst 4500 Series
Category	Switch
Layer Support	Layer 2, Layer 3
Form Factor	Modular chassis
Stackable	No
Chassis Slots	3, 6, 7, 10
Power Supply Options	AC, DC
Redundancy	Power supply, Supervisor engine
Network Management	Cisco IOS Software CLI, SNMP, Cisco Prime Infrastructure
Features	Security, QoS
Port Density	Up to 384 ports per chassis
Security Features	802.1X, ACLs, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Supervisor Engine	8-E
