Power Connection Guidelines for AC-Powered Systems
2-6
Catalyst 4500 Series Switches Installation Guide
78-14409-08
• 1400 W—Table 2-1 lists the AC-input power cord options, specifications,
and Cisco product numbers, and shows the different styles of 1400 W
AC-input power cord wall plugs that are available for North America or
various international locations as well as the appliance coupler that is
attached to the power supply end of the power cord.
• 2800 W—Table 2-1 lists the AC-input power cord options, specifications,
and Cisco part numbers, and shows the different styles of 2800 W AC-input
power cord wall plugs that are available for North America and international
locations as well as the appliance coupler that is attached to the other end of
the 2800
W power supply power cord.
• 4200 W—Table 2-1 lists the AC-input power cord options, specifications,
and Cisco part numbers, and shows the different styles of 4200 W AC-input
power cord wall plugs that are available for North America and international
locations as well as the appliance coupler that is attached to the other end of
the 4200
W power supply power cord.

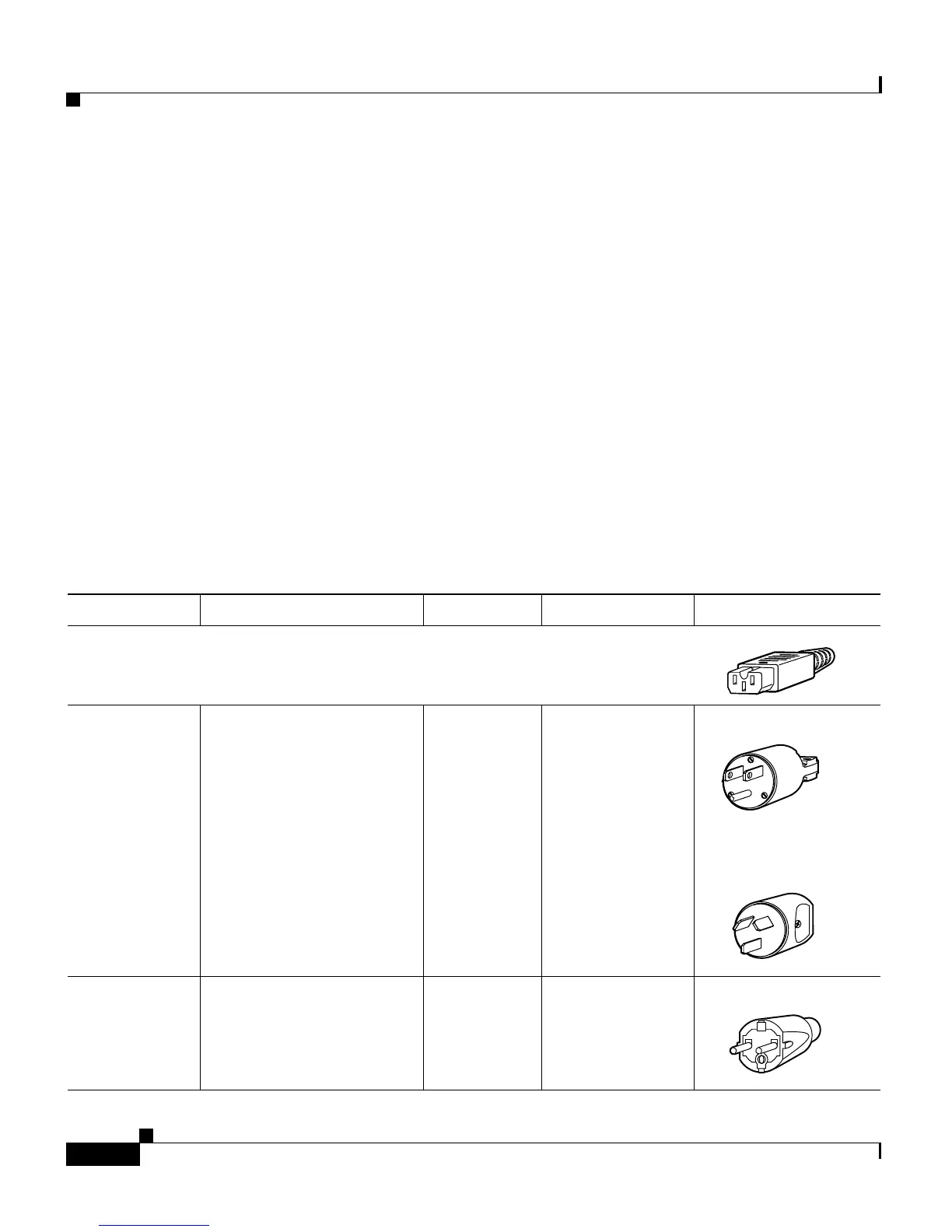

Ta b l e 2-1 AC-Input Power Cord Options
Locale Part Number Length Plug Rating Plug Type
1000 W Power Supply (PWR-C45-1000AC=)
Appliance
Coupler
North America CAB-US515-C15-US=
(was CAB-7KAC=)
8.2 ft (2.5 m) 125 VAC, 15 A NEMA 5-15P
Australia,
New
Zealand
CAB-AS3112-C15-AU=
(was CAB-7ACA=)
8.2 ft (2.5 m) 250 VAC, 15 A SAA/3,
AS/NZS 3112-1993
Europe (except
Italy)
CAB-CEE77-C15-EU=
(was CAB-7ACE=)
8.2 ft (2.5 m) 250 VAC, 16 A CEE 7/7
120352
120354
120356
120357
