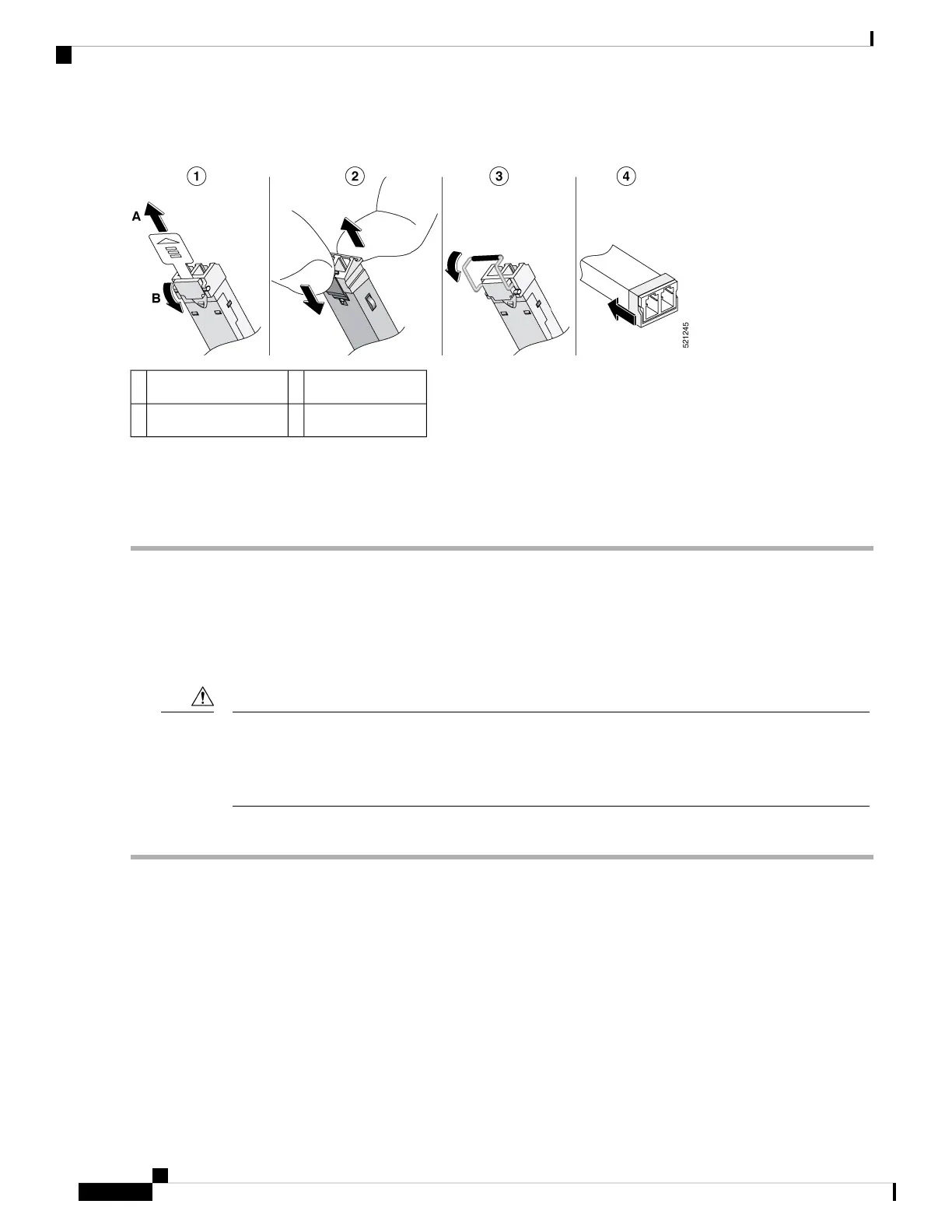

Figure 68: Disconnecting SFP Latch Mechanisms
Bale-clasp latch3Sliding latch1
Plastic collar latch4Swing and slide latch2
Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot reach it
with your fingers.
Tip
Step 4 Grasp the SFP on both sides and remove it from the device.
Remove and Replace the USB Flash Token Memory Stick
The Cisco Catalyst 8300 Series Edge Platforms contain ports for a USB memory stick to store Cisco
configurations or Cisco IOS XE consolidated packages.
Do not remove a USB Flash memory module when issuing some file access command or a read/write
operation to the Flash memory module when it is processing. The router might reload or the USB Flash
memory module can be damaged. You can check to see if the USB activity LED on the router front
panel is flashing, prior to the removal of the USB device
Caution
To install, remove a USB memory stick from the device, follow these steps:
Step 1 Place the USB stick into the USB port.
Step 2 Type-C memory sticks are supported on USB port 1 and type-C memory can be inserted in any direction. Type-A memory
sticks are supported on USB port 0 and it must be oriented correctly to allow for proper insertion.
A sample of how the memory stick is inserted into the port.
Note
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
92
Install Internal Components and Field Replaceable Units
Remove and Replace the USB Flash Token Memory Stick
