Cisco Catalyst 8300 Series User Manual

Rack Mounting
screws
1

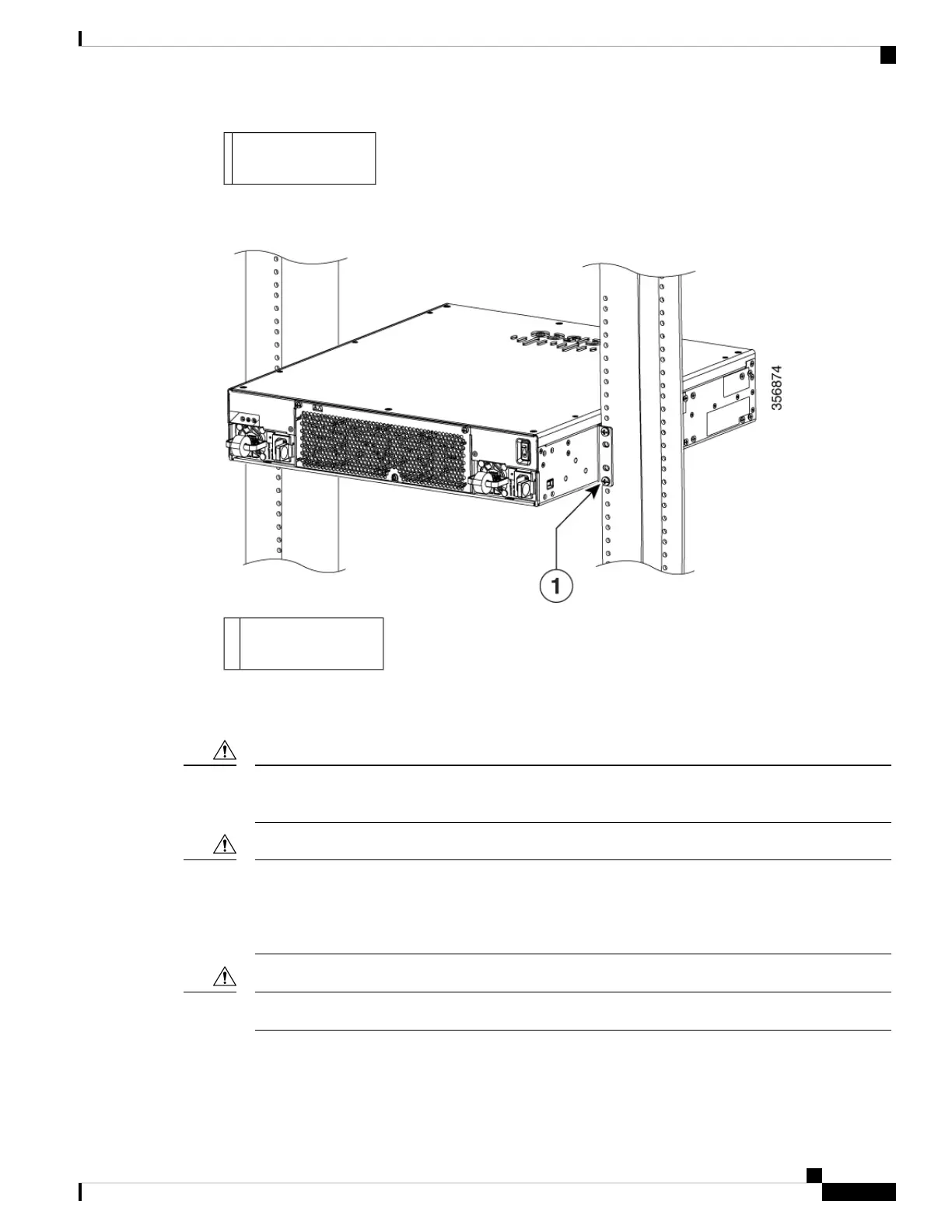

Figure 27: Mid-Mount from Power Supply Side (C8300 2N2S-4T2X|6T)
Rack Mounting
screws
1
Attach Cisco Cisco Catalyst 8300 Series Edge Platforms on a Wall
Only the C8300-1N1S-4T2X|6T are designed to be wall mounted. The C8300-2N2S-4T2X|6T have not
been designed to be wall mounted.
Caution
When mounted on a wall, the C8300-1N1S-4T2X|6T should always be oriented with a side of the device
oriented in the downward position. The I/O side and power supply side should be oriented so that the
fan vents and cable entry will be oriented to the left or right. The I/O side or power supply should never
be oriented downwards.
Caution
Your chassis installation must allow unrestricted airflow for chassis cooling.
Caution
Step 1 Attach the rack mount brackets to the sides of the device using only the hardware provided in the wall
mounting kit (#6-32 x 0.44 inch PHMS).
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
43
Install and Connect
Attach Cisco Cisco Catalyst 8300 Series Edge Platforms on a Wall

Cisco Catalyst 8300 Series Specifications

General

Software	Cisco IOS XE
Interface Modules	Modular
WAN Ports	Varies based on module selection
LAN Ports	Varies based on module selection
Redundancy	Yes, with dual power supplies and modular components
Security	Integrated threat defense, encryption, and secure boot
Management	Cisco DNA Center, CLI, SNMP, REST APIs
Form Factor	Rack-mountable
Rack Height	1RU or 2RU
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Serial
Power Supply	Redundant power supply options available
Key Features	SD-WAN, advanced security
Product Family	Catalyst
Port Density	Varies based on module selection
Dimensions	Varies by model
Weight	Varies by model and module selection
