Cisco Catalyst 8300 Series User Manual

Step 3 Place the chassis on a flat surface.
Step 4 For C8300-1N1S-4T2X|6T, remove the 11 cover screws. For C8300-2N2S-4T2X|6T, remove the 6 cover screws.
Step 5 Lift the cover straight up.
Replace the Cover
To replace the cover, perform the following steps.
Step 1 Place the chassis on a flat surface.
Step 2 Drop the cover straight down and ensure that the side flanges insert into the chassis. Care should be taken to not damage
the EMC Gaskets.
Step 3 For C8300-1N1S-4T2X|6T install the 11 cover screws. For C8300-2N2S-4T2X|6T install the 6 cover screws.

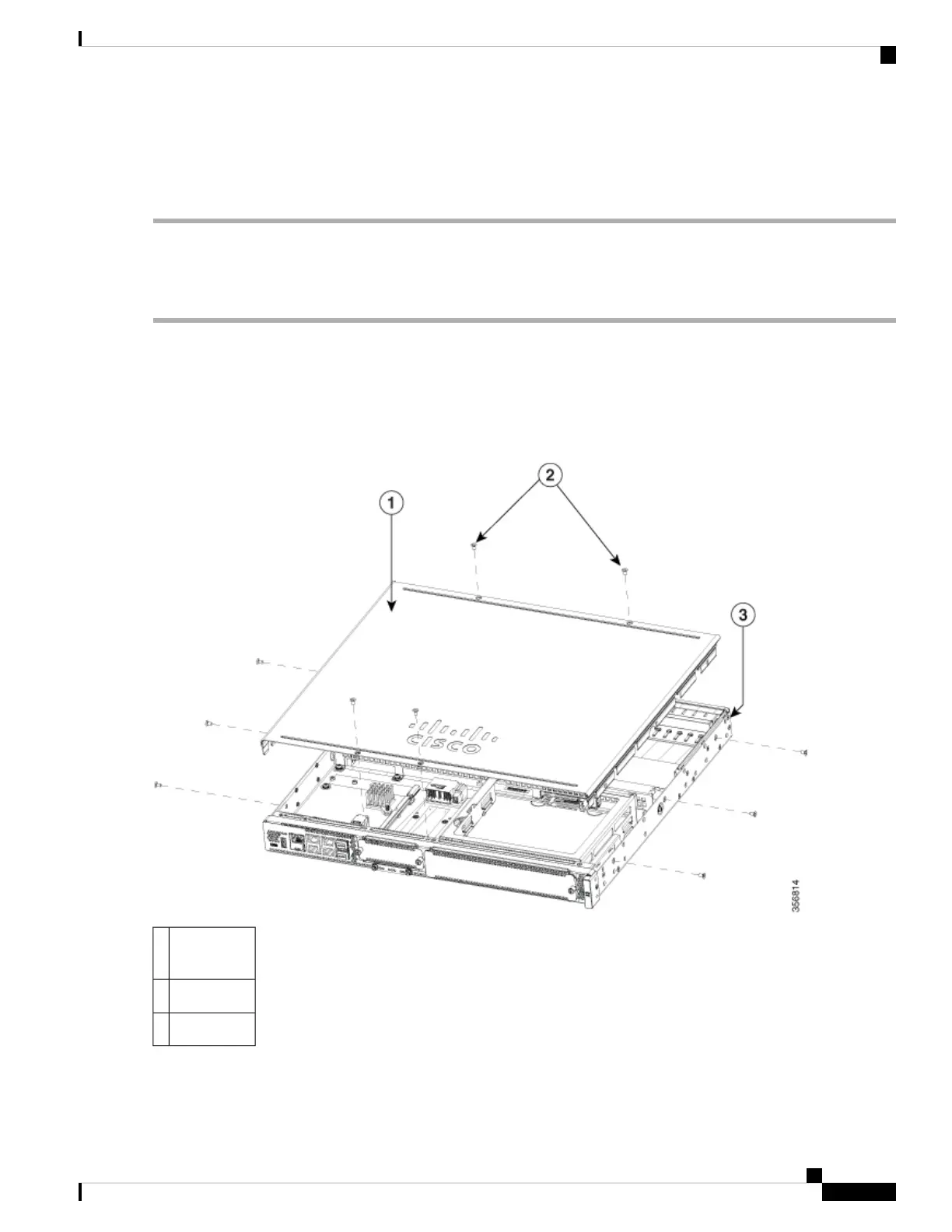

Figure 34: Install the Cover on the C8300-1N1S-4T2X|6T
Chassis
cover
1
Screws2
Chassis3
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
59
Install Internal Components and Field Replaceable Units
Replace the Cover

Cisco Catalyst 8300 Series Specifications

General

Software	Cisco IOS XE
Interface Modules	Modular
WAN Ports	Varies based on module selection
LAN Ports	Varies based on module selection
Redundancy	Yes, with dual power supplies and modular components
Security	Integrated threat defense, encryption, and secure boot
Management	Cisco DNA Center, CLI, SNMP, REST APIs
Form Factor	Rack-mountable
Rack Height	1RU or 2RU
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Serial
Power Supply	Redundant power supply options available
Key Features	SD-WAN, advanced security
Product Family	Catalyst
Port Density	Varies based on module selection
Dimensions	Varies by model
Weight	Varies by model and module selection
