To replace the fan tray, perform these steps:
Step 1 Power off the device
Step 2 Remove all cables from the chassis
Step 3 Remove unit from the equipment rack if it is installed in a rack
Step 4 Remove the top cover
Step 5 Remove the three screws from the fantray
Step 6 Disconnect fan cables from the motherboard
Step 7 Remove the fan tray
The estimated time for replacing the fan tray on C8300-1N1S-4T2X|6T by a skilled technician within 60
Minutes.
Note

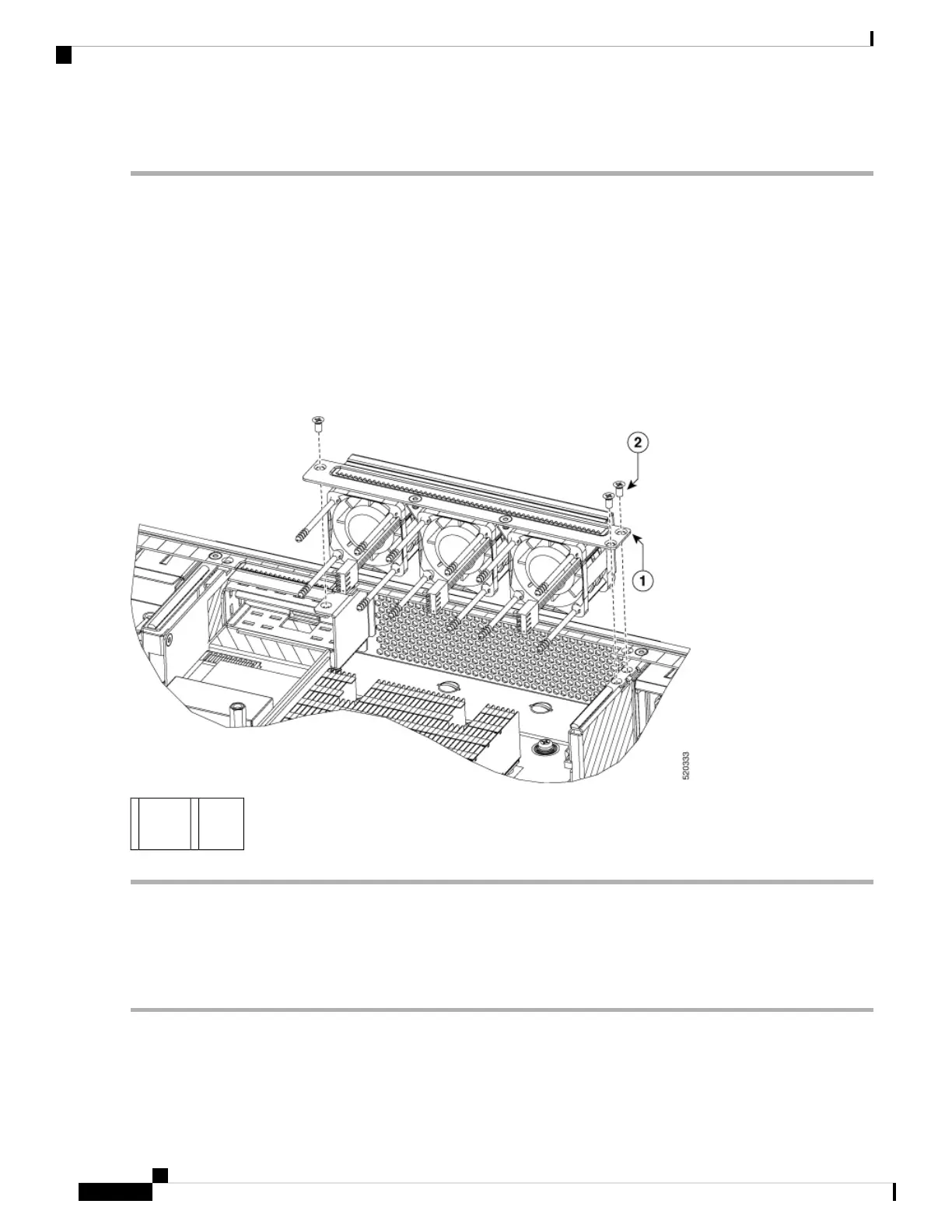

Screws2Fan
tray
1
Install the Fan Tray into a C8300-1N1S-4T2X|6T
The C8300-INIS-4T2X|6T supports forward air flow (standard version).
To replace the fan tray, perform these steps:
Step 1 Install the fan tray
Step 2 Install the three fan tray mounting screws
Step 3 Connect the fan cables to the motherboard
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
88
Install Internal Components and Field Replaceable Units
Install the Fan Tray into a C8300-1N1S-4T2X|6T
