Cisco Catalyst 8300 Series User Manual

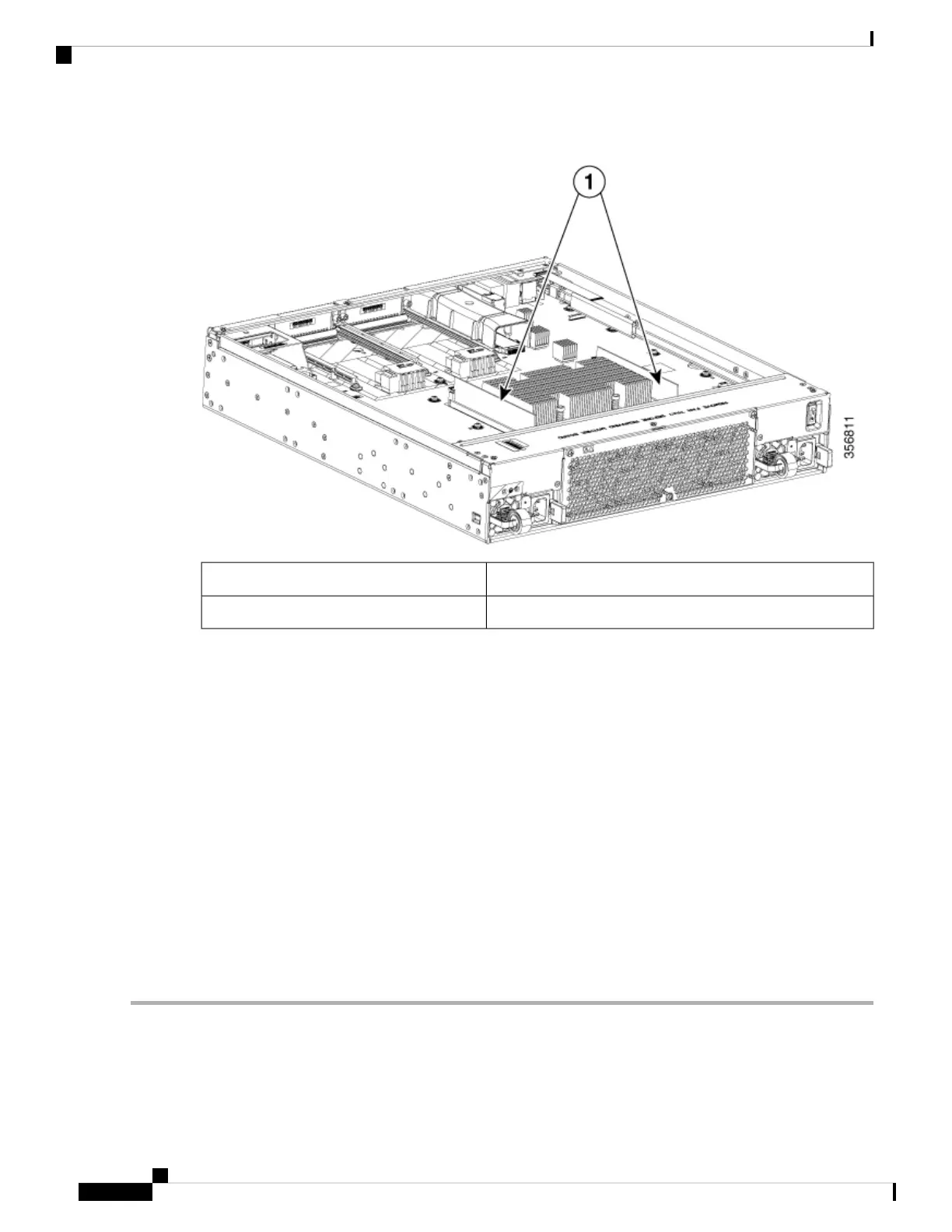

Figure 33: Internal Component Locations in the C8300-2N2S-4T2X|6T
ModuleSl. No
DIMMs1
Remove and Replace the Chassis Cover
The Cisco Catalyst 8300 Series Edge Platforms have removable covers. Before removing the cover, do these
steps:
• Do not run the device with the cover off. Doing so can cause the chassis to overheat very quickly.
• Before opening the unit, disconnect the telephone-network cables to avoid contact with telephone-network
voltages. Statement 1041.
• Disconnect all power cables.
• Remove the device from the rack
Use a number-2 Phillips screwdriver to perform the following tasks.
Remove the Chassis Cover
To remove the cover, perform the following steps.
Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.
Step 2 Confirm the device is turned off and disconnected from the power supply or power supplies. If a redundant power is used,
disconnect from the redundant power supply.
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
58
Install Internal Components and Field Replaceable Units
Remove and Replace the Chassis Cover
