Connect to a Console Terminal or Modem
The Catalyst 8300 Series Edge Platforms have asynchronous serial ports. These ports provide administrative
access to the router either locally (with a console terminal or a PC).To configure the router through the Cisco
IOS CLI, you must establish a connection between the router console port and either a terminal or a PC.
Use the following cables and adapters to establish a local or remote connection.

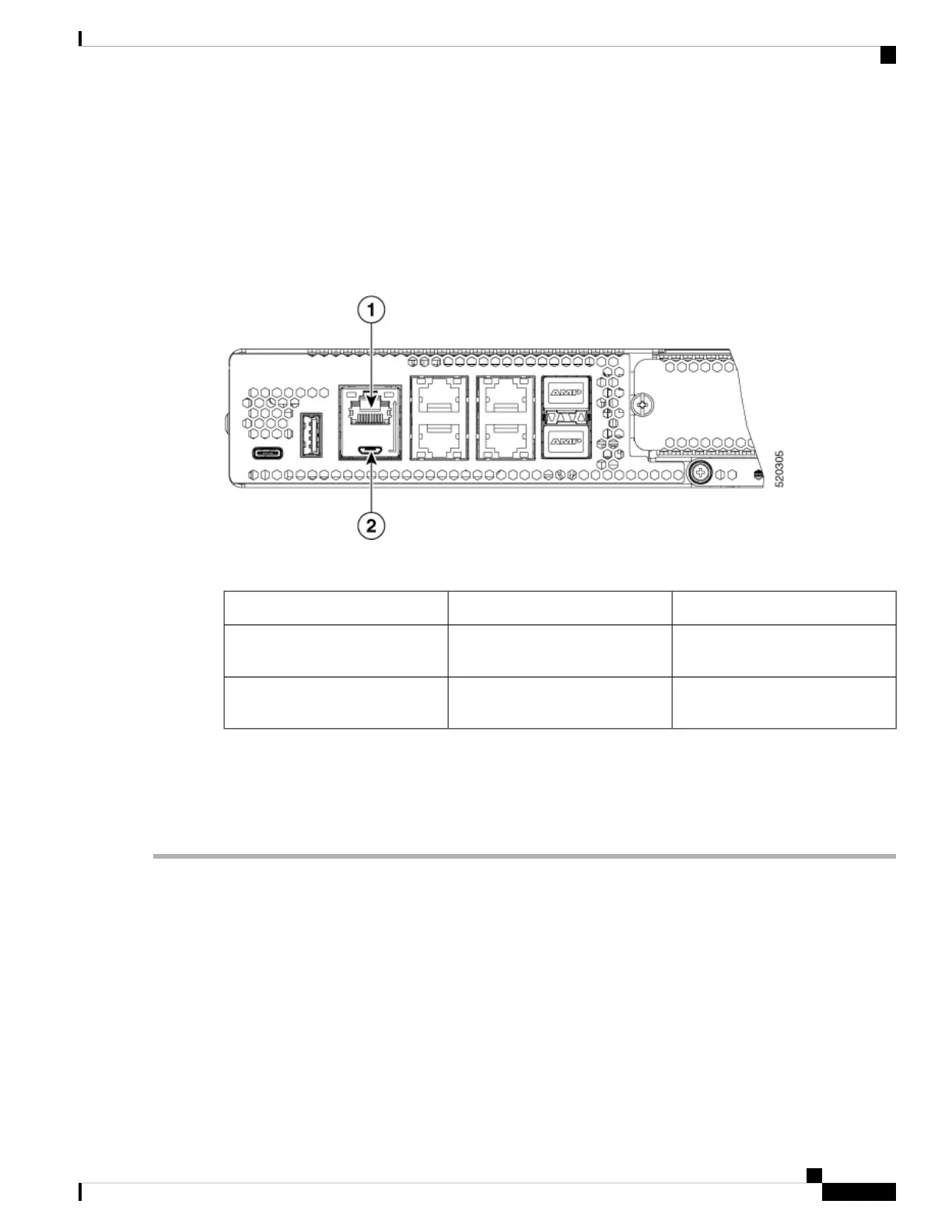

Table 9: Local and Remote Connections
SectionCablePort Type
Connect to the Serial Port with
Microsoft Windows
EIA RJ-451. Serial (RJ-45)
USB 5-pin mini USB
Type-B-to-USB Type-A
2. Serial (USB)
Connect to the Console Port with Mac OS X
This procedure describes how to connect a Mac OS X system USB port to the console using the built in OS
X Terminal utility.
Step 1 Use the Finder to go to Applications > Utilities > Terminal.
Step 2 Connect the OS X USB port to the router.
Step 3 Enter the following commands to find the OS X USB port number
Example:
macbook:user$ cd /dev
macbook:user$ ls -ltr /dev/*usb*
crw-rw-rw- 1 root wheel 9, 66 Apr 1 16:46 tty.usbmodem1a21 DT-macbook:dev user$
Step 4 Connect to the USB port with the following command followed by the router USB port speed
Example:
