Install the PoE Converter Power Supply
To install the PoE converter power supply, perform these steps:
Step 1 Push the POE power supply into the slot, continue until the supply is fully seated. The power supply latch should rotate
until it touches the faceplate of the supply.
Step 2 Tighten the screw to secure the filler panel in the chassis.
Step 3 Tighten the two screws securing the POE supply in the device.
Step 4 Install the fan tray from the device.
Step 5 Tighten the screws securing the fan tray in the chassis.

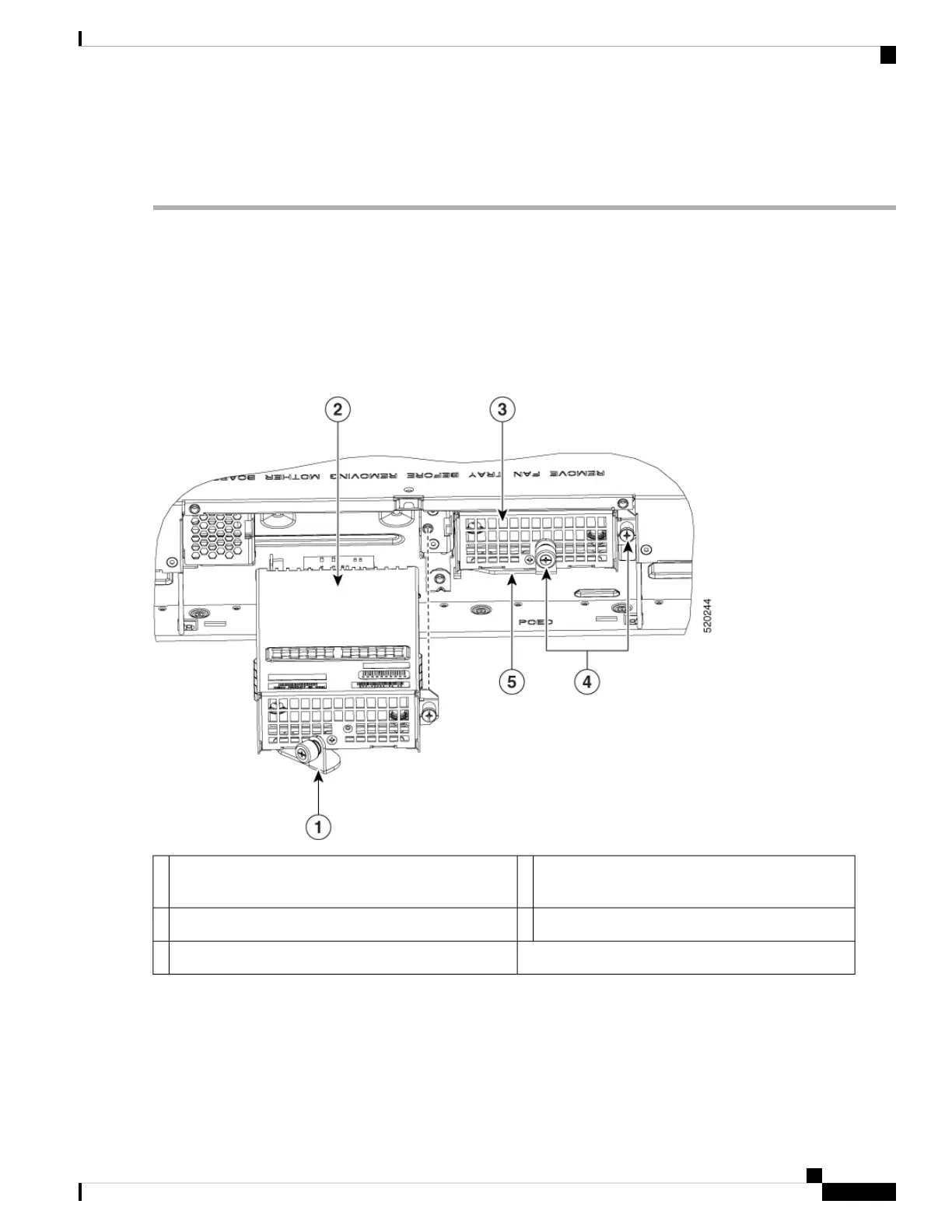

Figure 64: Install the PoE Converter Power Supply
PoE converter module being installed in PoE slot
1
2Latch to secure module (shown open).1
Screws to secure PoE module to the chassis.4PoE converter module installed in PoE slot 03
Latch to secure PoE converter module (shown closed).5
The following messages are expected behavior when you try to reload or insert a PoE supply in a device with Ethernet
Switch Network Module:
Example:
*Jul 21 22:35:23.868: %IOSXE_PEM-6-INSPEM_FM: PEM/FM slot POE0 inserted
Upon PoE converter power supply insertion, inline power supply restores automatically in the router.
